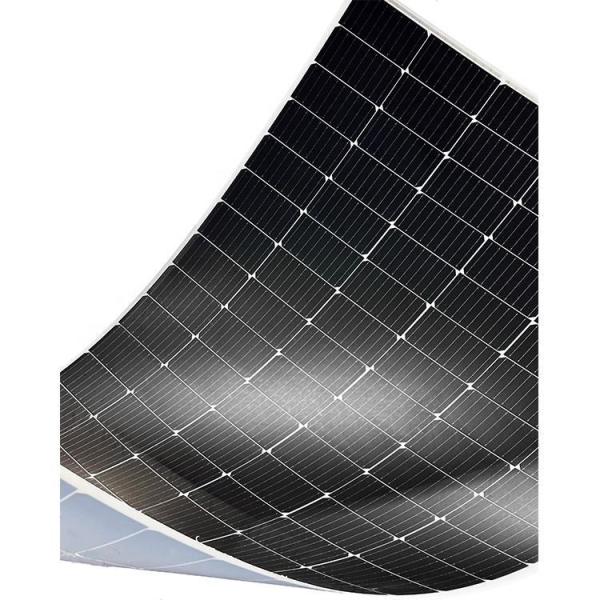

430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
Specifications
Brand Name :
Sunman
Model Number :
430W
Place of Origin :
Anhui, China
MOQ :
5000 watts
Price :
$0.35/watts 5000-499999 watts
Cell size :
166mmx166mm
Panel Dimensions :
2054*1080*2mm
Panel Efficiency :
20.4%
Product name :
Flexible Solar Panles
Type :
Flexible
Keyword :
Flexiable Solar Panel
OEM Order :
support
Max -Power :
430W/520W
Connector :
MC4
Description
Product Description
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
Specification
ELECTRICAL CHARACTERISTICS
STC
GC-F2-425W
GC-F2-430W
Maximum Power(Pmax)
425
430
Maximum Power Voltage (Vmp)
41.8
42
Maximum Power Current (Imp)
10.17
10.24
Open-circuit Voltage (Voc )
49.6
49.8
Short-circuit Current (Isc )
10.67
10.74
Module Efficiency (%)
19.2
19.4
Operating Temperature
-40℃——85℃
Maximum System Voltage
1000V DC (IEC)
Maximum Series Fuse Rating
20A
Application Class
Class A
Power Tolerance
0/+5 W
STC:Irradiance 1000W/㎡,Cell temperature 25℃ , AM=1.5.
Tolerances of Pmax,Vdc and Isc are within ±5%
NMOT
GC-F2-425W
GC-F2-430W
Maximum Power(Pmax)
321.4
325.1
Maximum Power Voltage (Vmp)
38.6
38.8
Maximum Power Current (Imp)
8.33
8.38
Open-circuit Voltage (Voc )
46.6
46.8
Short-circuit Current (Isc )
8.64
8.69
NMOTL:Irradiance 800W/㎡, Ambient temperature 20℃,
AM=1.5, Wind speed 1 m/s
MECHANICAL CHARACTERISTICS
Solar Cell
Monocrystalline Silicon(166mm half cell)
No.of Cells
144(12x12)
Module Dimensions
2054x1080x2 mm
Weight
7.2kg
Backsheet
White
Frame
Frameless
J-box
IP 68 Rated
Output Cables
Photovoltaic Technology Cable 4.00 2 , (+)450/(-)450 mm
Connector
MC4 Compatible
Details Images
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
Packing & Delivery
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
430w Flexible Monocrystalline Solar Panel Sunman Solar Panel For Boat RV
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation? A1: We usually quote 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority. Q2: How can I get a sample to check quality? A2: After price confirmation, you can require for samples to check our quality counter display. If you need the samples,
we will charge for the sample Express fee. But the cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q3: Can you do the design for us? A3: Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4: How long can I expect to get the samples? A4:After you pay the sample charge and send us confirmation files, the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
Q5: What about the lead time for mass production? A5: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to 15 days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the product at your country.
Q6: What is your terms of delivery? A6: We accept EXW, FOB, C&F and CIF, etc. You can choose the one which is the most convenient or cost effective for you.
