Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Turbocharget chra GT1549S 702404-0001 , 8200069567
Specifications
Brand Name :
Tain turbo
Model Number :
GT1549S
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/P
Supply Ability :
500 pcs per month
Delivery Time :
3-5 work days
Packaging Details :
Neutral Packing
Model :
GT1549S
Turbo No. :
702404-0001 , 702404-0002
SN NO. :
433289-0075
Application :
Opel Movano 2.2 D G9T , RenauIt master 2.2 D G9T720
OE NO. :
8200069567 ，7701473756 ， 14411-00QAC
Material :
K18+C355+ HT250
Product :
Turbocharger Cartridge
Description

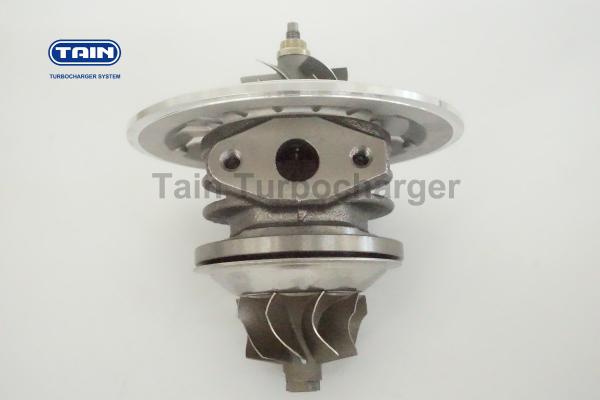

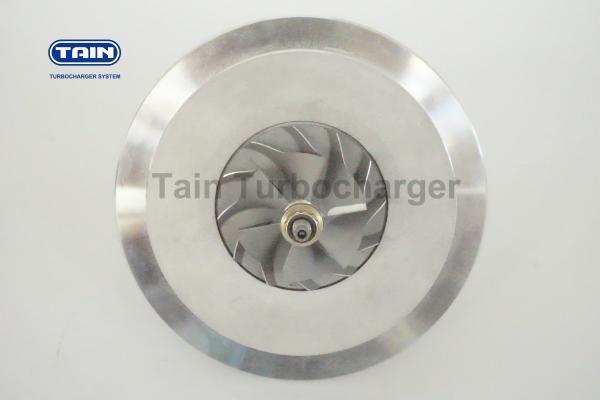

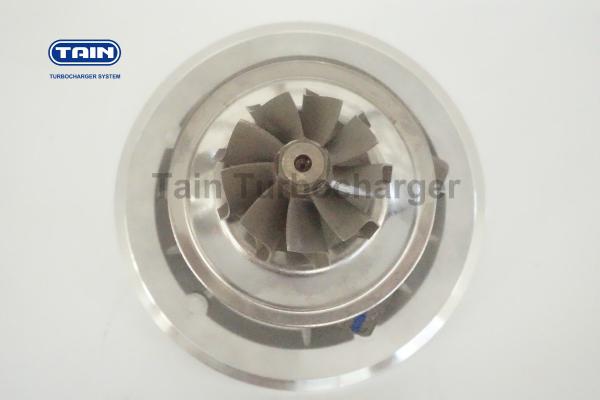

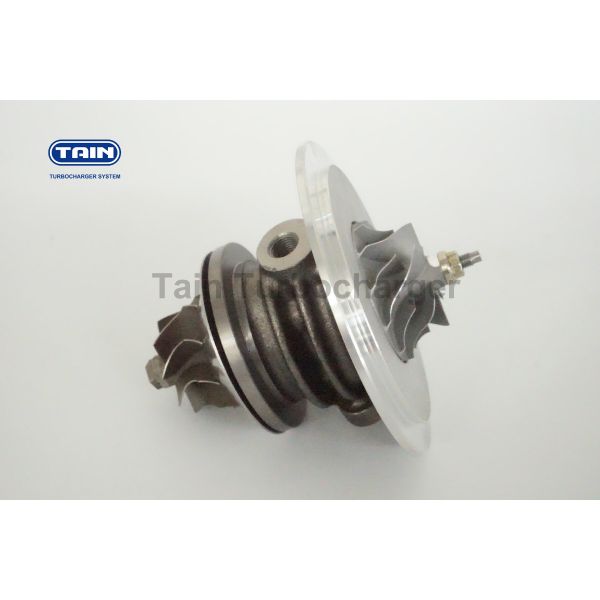

Turbocharget chra GT1549S 702404-0001 , 8200069567

DESCRIPTION


—— Model :

GT1549S


—— Turbo No. :

702404-0001 , 702404-0002

—— OE NO. :

8200069567 ,7701473756 , 14411-00QAC


—— Balancing Test :

<0.5Mg.mm / 150000RPM


—— Condition:

Brand new


—— Fitted Cars :

Nissan Interstar X70 2.2L 66KW 2006 G9T 722
Opel Vivaro / Movano 2.2L 66KW 2006 G9T 722

RenauIt Master / Trafic 2.2L 66KW 2006 G9T 722

—— Material

turbine wheel: K418

compressor wheel: C355

bearing house: HT250 Gray iron

Turbine wheels & compressor wheels size information
Turbine Wheels
(A) Inducer (B) Exducer Blades
41 33.8 9
Compressor Wheels
(A) Inducer (B) Exducer Blades
36.4 49 6/6
Turbocharget chra GT1549S 702404-0001 , 8200069567
OTHER MODELS WE SUPPLY


Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.

Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.

Model cover :

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E

KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50

Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410

Holset:

HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V

IHI: RHB3,RHF3,RHF4,RHF5,

MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035

Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26

TIAN TECHNICIAL TEAM


Our technical team was composed by one advanced engineer with 15 years

experience engineers and four engineers who are very professional in this field.

They are familiar with turbocharger system and product structure and dimension.

They are mainly responsible for source selection,quality control,dimension

inspection and product development.Thanks to them,currently we can supply over

300 types of turbochras and always keep our products quality in a high level.
