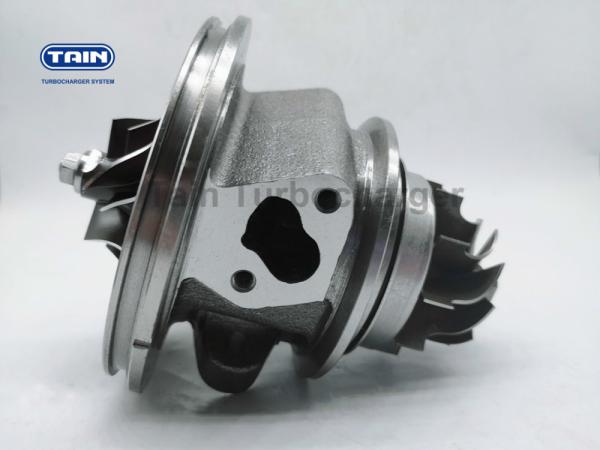

CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L
Specifications
Brand Name :
Tain turbo
Model Number :
CT20
Certification :
ISO9001:2000
Place of Origin :
China
Payment Terms :
T/T, L/C,Western Union, MoneyGram
Packaging Details :
Neutral packing or Tain color box
Delivery Time :
As per quantity required
Product Name :
Turbo Cartridge,turbocharger Chra,turbo Core
Turbo NO. :
17201-54030 / 17201-54060
CHRA NO. :
17202-54030
OE NO. :
17201-54030 /CT20WCLD / 17201-54060
Application :
TOYOTA Landcruiser 2.4L
Engine :
2L-T
Year :
1988
Material :
K18+C355+HT250
Description

CT20 17201-54030 17201-54060 Turbocharger Chra Cartridge for TOYOTA Landcruiser 2.4L

PRODUCT DESCRIPTION

⇒P/N

17201-54030 , 17201-54060

⇒Turbo Model
CT20



⇒CHRA NO
17202-54030



⇒Engine NO

17201-54030 ,CT20WCLD , 17201-54060

⇒Application

Toyota Landcruiser / Hilux / Hiace 2.4L 90HP 1995 2L-T

⇒Balancing Test

<0.5Mg.mm / 150000RPM


⇒Condition
Brand new


Our turbo cores are 100% balancing tested by SCHENCK TB-Sonio.

Turbine wheels & compressor wheels size information
Turbine Wheels
(A) Inducer (B) Exducer Blades
59.7 48 10
Compressor Wheels
(A) Inducer (B) Exducer Blades
39 57 5/5


What is a CHRA?


A complete turbocharger is essentially a Centre Housing Rotating Assembly (CHRA or core assembly) with housings fitted to

each side. The turbine housing directs exhaust gas to power the turbine wheel, the compressor housing directs air into the

engine. The turbine housing will have a wastegate to control the turbine speed, or as is more common on diesel engines, there

is a variable vane mechanism giving much better control of the turbo, reducing lag, and improving performance.

The wastegate or vane mechanism is controlled by an actuator – which could be controlled either electronically or by a vacuum

system. The CHRA is a rotor (turbine wheel on one side, compressor wheel on the other) that is held in a bearing system

allowing it to rotate at high speed on a pressurized oil film similar to the engine. Turbo remanufacturer’s traditionally stripped

the complete turbocharger and CHRA, examine all the individual components, replacing these where necessary, and install

brand new bearings and seals.
