CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator
CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator
Specifications
Standards :
Complies with ANSI, IEC, and other international standards
Material :
Glass
MOQ :
1
Dry lighting impulse withstand voltage :
Up to 140kV
Usage :
Electrical insulation
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Temperature Rating :
Up to 200°C
Power-frequency puncture withstand voltage :
Up to 140kV
Brand Name :
TL
Price :
USD 4-8
Mechanical failing load :
100-550kN
Application :
High Voltage Transmission Line Projects
Description

Reliable High Strength Glass Insulator for 110kV to 500kV Power Projects

Maximize grid reliability across 110kV to 500kV power projects with our high strength toughened glass insulator. Designed to meet the demands of modern transmission networks, it delivers essential electrical isolation that effectively mitigates leakage currents. The unit's exceptional mechanical strength ensures resilience against dynamic loads and vandalism, facilitating continuous power flow. By bolstering the durability of substation and line infrastructure, this solution significantly extends service life and reduces lifecycle costs.


Data Sheet

Standard Type Spacing(mm) Diameter (mm) Creepage Distance(mm) Standard Coupling Mechanical Faiing Load(kN)
U40B 110 175 190 11 40
U70BS 127 255 320 16 70
U70BL 146 255 320 16 70
U100BS 127 255 320 16 100
U100BL 146 255 320 16 100
U120B 146 255 320 16 120
U120BS 127 255 320 16 120
U160BL

170

 280 400 20 160
U160BM 155 280 400 20 160
U160BS 146 280 400 20 160
U210B 170 280 400 20 210
U240B 170 280 400 24 240
U300B 195 330 490 24 300
U420B 205 380 550 28 420
U550B 240 380 620 32 550


CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator

CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator

CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator

CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator

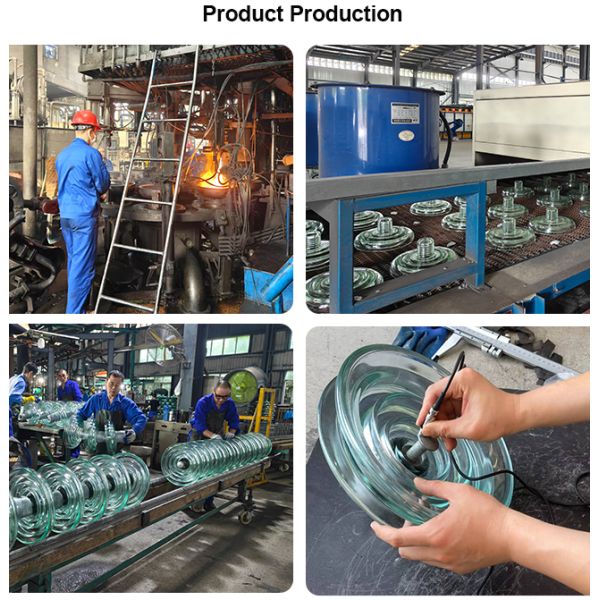

Standard glass insulator production relies on the precise formulation and high-temperature melting of silica sand with specialized mineral components. The molten material is formed in precision cavities, then rapidly cooled via tempering to induce surface compression—substantially increasing mechanical durability and ensuring harmless fragmentation in the event of failure. Comprehensive quality assurance includes thermal shock testing and visual inspection to eliminate any flawed units. Certified glass shells are then permanently bonded to metal caps and pins using high-strength cement. Final quality verification includes mechanical load testing and electrical performance validation to ensure complete reliability before the products are packaged and shipped.

CTV254 Reliable Glass Suspension Insulators High Strength Standard Glass Transformer Insulator
