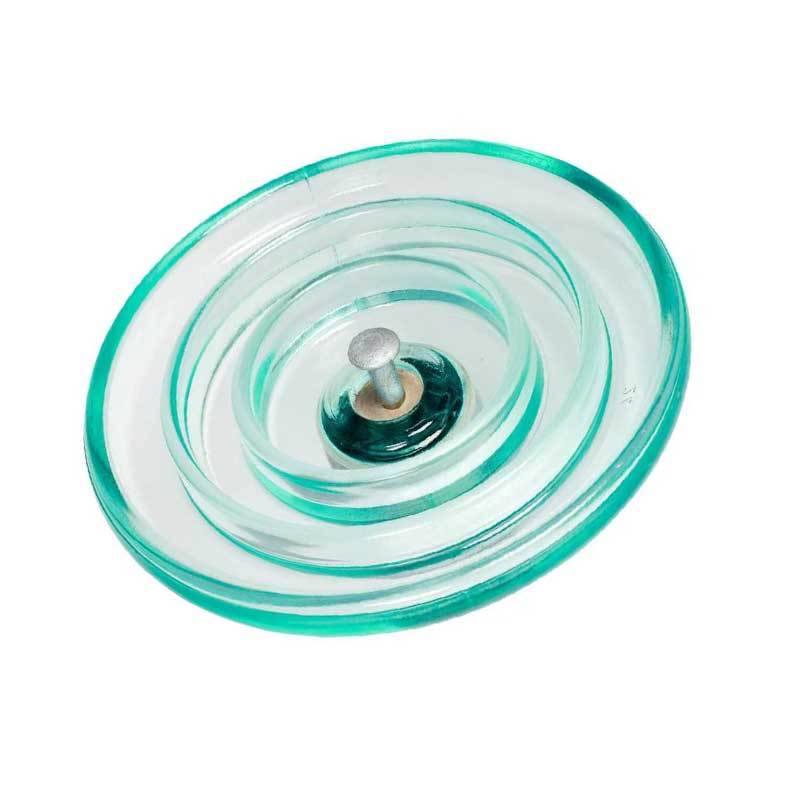

The U120B Toughened Glass Suspension Insulator is designed for overhead power transmission systems requiring a 120 kN mechanical failing load.

Its 255 mm diameter and 320 mm creepage distance provide a balanced configuration for outdoor transmission applications.

The toughened glass body provides reliable electrical insulation while allowing convenient visual inspection.

Tailun adopts a dual‑base collaborative development pattern.

The Huzhou Headquarters covers a land area of 130 mu (83,609 square meters) with a building area of 74,800 square meters, undertaking R&D, forming & cementing production, quality inspection and comprehensive office functions.

The Anhui Base, with a site area of 34,600 square meters and building area of 14,700 square meters, serves as the large‑scale supporting production site.

Supported by the two bases, the company achieves an annual production capacity of 7.2 million pieces of toughened glass insulators, covering a full voltage range from 10 kV to 1100 kV. Our products are well‑suited for diversified application scenarios of power grid projects both at home and abroad.

Backed by dual‑base manufacturing layout, Tailun manufactures high‑performance toughened glass insulator for global power‑grid projects. Our production workshop is equipped with world‑class imported facilities, including American Mettler‑Toledo batching‑weighing systems, Italian AMIGO thermal‑shock lines, glass pressing & toughening machines, and British glass melting furnaces. Combined with our self‑developed intelligent temperature‑controlled firing system, every toughened glass insulator gains optimized glass formula and uniform internal stress.

Advanced production processes make our insulator deliver 20% higher mechanical strength than industry standards, with self‑shatter rate controlled below 0.01%. Complete in‑house test apparatus supports full‑range performance verification for each insulator, covering mechanical failure load, thermal‑shock resistance, lightning impulse, zinc‑coating inspection and non‑destructive metal‑fitting detection. Every toughened glass insulator undergoes strict full‑item testing before delivery, ensuring stable long‑term service even in desert, plateau, coastal and other harsh working environments.

Full-process inspection from raw material to finished.

Quality control is implemented throughout the manufacturing process, from raw material inspection to finished product inspection.

The manufacturing and testing process can be aligned with applicable IEC, GB and project-specific technical requirements.

05 Packing & Delivery

Toughened glass insulators are packed in solid export‑grade plywood wooden cases. Each insulator is individually protected with shock‑absorbing cushioning materials inside the crate to avoid collision, scratch and glass breakage during sea‑land multimodal transportation. Wooden cases are suitable for long‑distance overseas shipment, container loading and rough site handling. Marking including product model, quantity, weight and shipping marks is clearly printed on case surface to facilitate receiving and on‑site inventory check.

In China, we serve as a core supplier to State Grid and China Southern Power Grid, covering more than 30 provinces and supporting major national projects including the West-to-East Power Transmission Project. Globally, we actively respond to the Belt and Road Initiative. Our products are exported to over 50 countries and regions across Southeast Asia, Europe, the Middle East, South America and Africa, and we take part in numerous overseas power infrastructure projects.

The company has passed ISO9001, ISO14001 and ISO45001 management system certifications, and been awarded Top Ten Brands in China’s Glass Insulator Industry. All testing procedures comply with GB national standards and IEC international standards, backed by three professional laboratories equipped with full-range advanced testing instruments.

Tailun focuses on the development and manufacture of toughened glass insulators for power transmission applications over 20 years.

With dual manufacturing bases, automated production capabilities and dedicated quality inspection processes, Tailun supports standard glass insulator supply as well as customized requirements for transmission projects, with an anual capability of over 10 million pieces.

Send us your required mechanical load, spacing, creepage distance, coupling and application requirements.

Our team can recommend a suitable toughened glass insulator configuration for your project.
