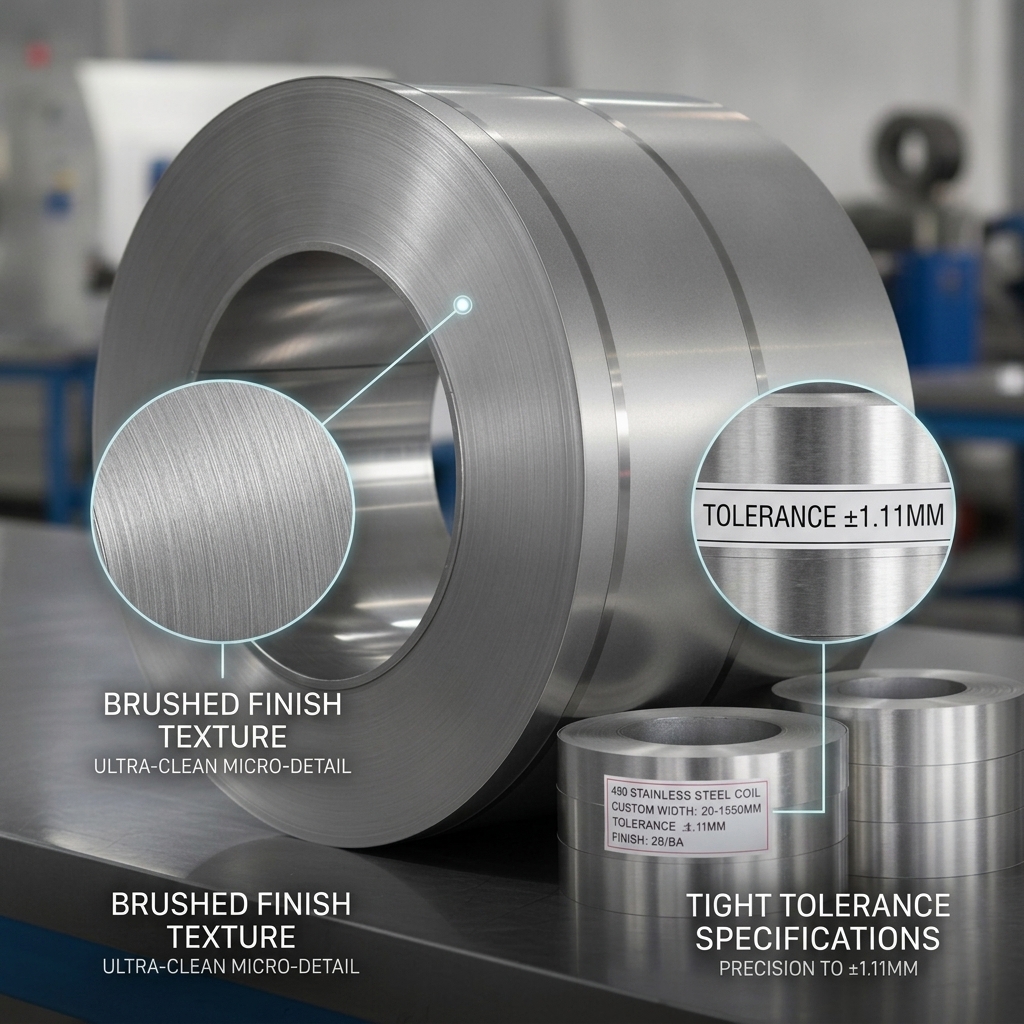

Deep Drawing Grade 430 Stainless Steel Coil with BA 2B Finish for Washing Machine Drums in 0.5mm-2.5mm Thickness
Deep Drawing Grade 430 Stainless Steel Coil with BA 2B Finish for Washing Machine Drums in 0.5mm-2.5mm Thickness
Specifications
Payment Terms :
T/T, L/C at sight
Coil Inner Diameter :
508mm / 610mm
MOQ :
2 Tons
Thickness Range :
0.5mm - 2.5mm (±0.02mm)
Grade :
430 (UNS S43000 / EN 1.4016)
Supply Ability :
4000 Tons per Month
Application :
Washing Machine Drum, Inner Tub, Dryer Drum, Dishwasher Liner
Delivery Time :
7-15 working days after order confirmation
Certification :
ISO 9001:2015, SGS, Mill Test Certificate
Price :
USD 790-1180 / Ton
Place of Origin :
Shanxi, China
Standard :
ASTM A240, JIS G4305, EN 10088-2
Width Range :
600mm - 1500mm (Custom Slit Available)
Brand Name :
TISCO / BAOSTEEL
Packaging Details :
Anti-rust oil + waterproof kraft paper + plastic film + steel strapping + fumigated wooden pallet, seaworthy export standard
Coil Weight :
3-8 Tons
Model Number :
430-DD-DRUM
Surface Finish :
BA, 2B
Raw Material Source :
Baosteel / TISCO (Traceable with MTC)
Formability :
Deep Drawing Grade, Elongation ≥ 25%
Description
Deep Drawing Grade 430 Stainless Steel Coil for Washing Machine Drums

This deep drawing quality 430 stainless steel coil is specifically formulated for the production of washing machine drums, inner tubs, and spin baskets where single blanks must be drawn into deep cylindrical forms without tearing, orange peel, or surface defects. The 430 ferritic grade combines moderate strength with excellent elongation, enabling the deep progressive drawing operations used by home appliance manufacturers to produce seamless drum bodies with consistent wall thickness.

A fine grain annealed microstructure, achieved through tightly controlled cold rolling and batch annealing, provides the uniform plastic flow required by deep draw tooling. The material's resistance to detergent chemicals, fabric softeners, and humid laundry environments makes 430 the preferred economical grade for drum and tub applications across the white goods industry.

Key Features
  • Deep Drawing Performance: High elongation and fine grain structure support multi-stage drum forming without cracking
  • Consistent Wall Thickness: Precise gauge tolerance prevents thinning zones in deep drawn cylindrical bodies
  • Detergent Resistance: Chromium passive layer withstands alkaline detergents, softeners, and bleach cycles
  • Surface Quality: Clean 2B or BA surface minimizes die pickup and delivers smooth drum interiors
  • Low Work Hardening: Predictable strain behavior reduces springback and tool adjustment during high-speed pressing
  • Appliance Grade Economy: Low nickel ferritic chemistry controls material cost for volume white goods production
  • Full Traceability: Baosteel or TISCO base coils with Mill Test Certificate for every delivery
Technical Specifications
Parameter Specification
Steel Grade 430 (UNS S43000 / EN 1.4016)
Chromium Content 16.00% - 18.00%
Thickness Range 0.5mm - 2.5mm (Tolerance ±0.02mm)
Width Range 600mm - 1500mm, Custom Slit Available
Tensile Strength 450 - 600 MPa
Yield Strength ≥ 205 MPa
Elongation ≥ 25%
Hardness HRB 88 Max (Fully Annealed)
Surface Finish 2B, BA
Coil Inner Diameter 508mm / 610mm
Coil Weight 3 - 8 Tons per Coil
Standards ASTM A240, JIS G4305, EN 10088-2
Applications

This deep drawing 430 coil is engineered for washing machine drum blanks, inner tub bodies, spin baskets, pulsator plates, and dryer drums used in front load and top load laundry machines. It also serves dishwasher inner liners, microwave oven cavities, refrigerator evaporator plates, and other white goods components that require deep forming combined with corrosion resistance.

Packaging & Quality Assurance

Each coil is protected with anti-rust oil, wrapped in waterproof kraft paper and plastic film, secured with steel strapping, and packed on fumigated wooden pallets suitable for container shipment. Every delivery includes Mill Test Certificate, dimensional report, and surface inspection record, with ISO 9001:2015 quality assurance throughout production. Third-party inspection by SGS or BV can be arranged at the mill before loading.
