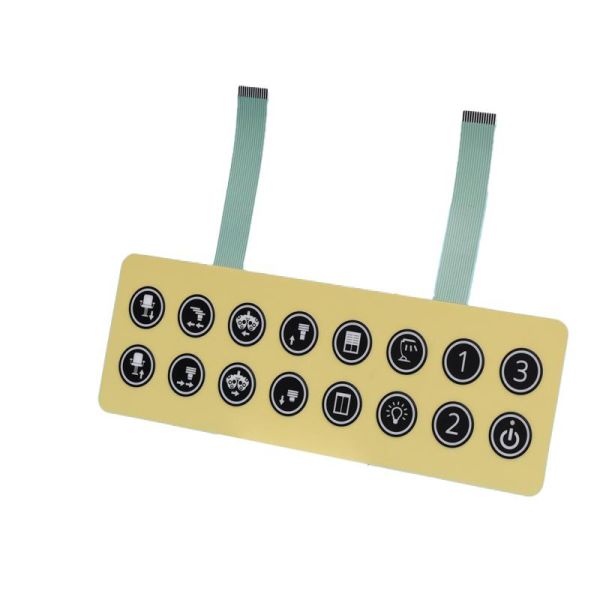

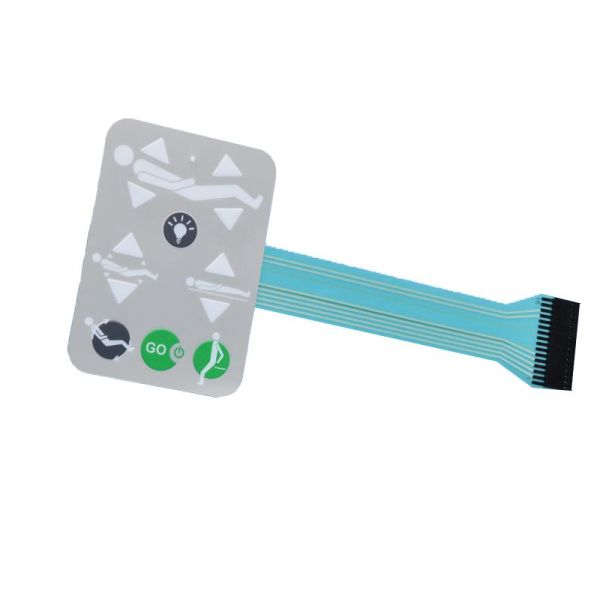

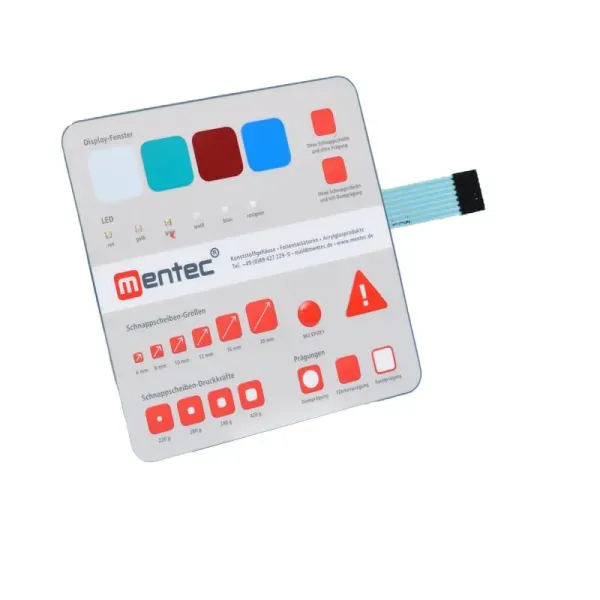

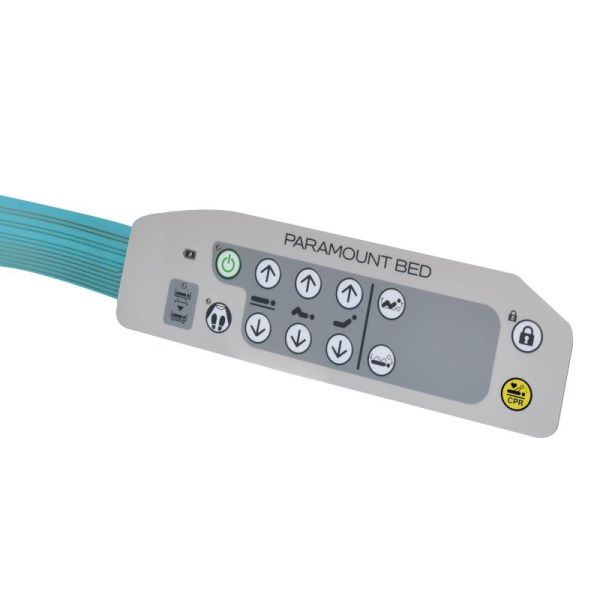

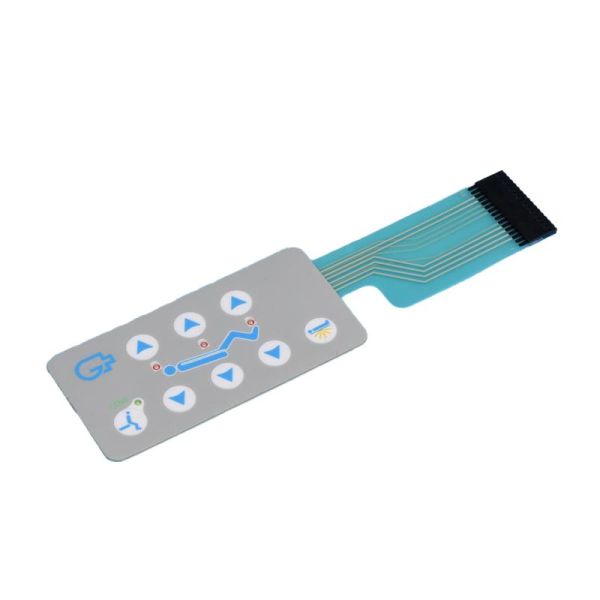

Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
Specifications
MOQ :
100
Model NO. :
HC-FPC-020
Combination Mode :
Adhesive Flexible Plate
Conductive Adhesive :
Conductive Silver Paste
Flame Retardant :
HB
Processing Technology :
Electrolytic Foil
Base Material :
Copper
Insulation Materials :
Organic Resin
Size :
289.00mm * 216.00mm
Key Count :
136 Keys with Metal Dome and Embossing
Connector Type :
65pin (Zif)
LED Count :
12PCS
Wire Resistance :
≤ 1 Ohm/cm
Current Rating :
25-100mA, 0-30V DC
Work Voltage :
≤ 50V DC
Insulation Voltage :
≤ 100M Ohm 250V DC
Description
Rigid Flexible Printing Electric FPC Circuit Board Film Switch
We specialize in the production and processing of rigid flexible printed circuit board film switches with comprehensive system integrity and stable technical personnel. Our company provides complete one-stop service solutions for all your membrane switch requirements.
Layer Construction
  • Overlay
  • Overlay adhesive
  • Dome retainer
  • Metal dome
  • Spacer adhesive

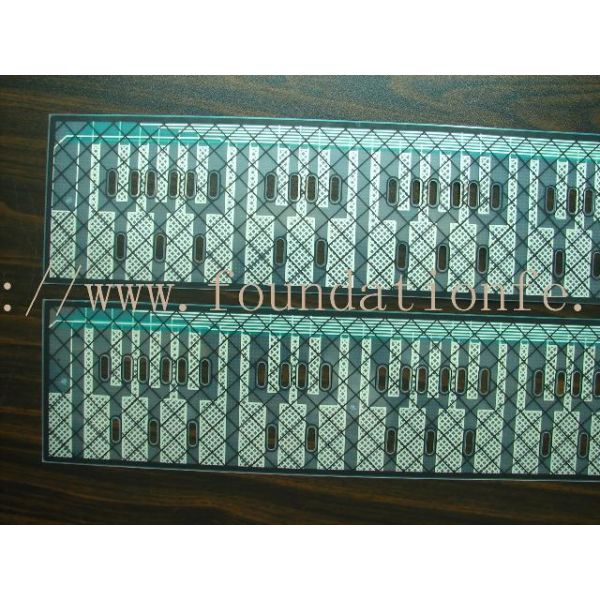

  • Circuit
  • Rear adhesive (customizable)
Production Capabilities
Our manufacturing facility includes comprehensive departments and equipment: Screen Print Department, IR Tunnel, Thickness Tester, IR Oven, Laser Cutting Machine, Punching Department, Emboss Key Section, Assembly, Electric Testing, OQC Department, Virtual Aspect Testing, Punch Machine Department, and PU Coating Section.
Technical Specifications
Parameter Specification
Wire Resistance ≤ 1 Ohm/cm
Current Rating 25-100mA, 0-30V DC
Work Voltage ≤ 50V DC
Insulation Voltage ≤ 100M Ohm 250V DC
Working Life ≤ One Million Cycles
Work Temperature -40°C to 70°C
Work Humidity 40°C ≤ 98%RH
Basic Material Pressurization 1500V DC
Product Gallery
Rigid Flexible Printing Electric FPC Circuit Board Film Switch Rigid Flexible Printing Electric FPC Circuit Board Film Switch Rigid Flexible Printing Electric FPC Circuit Board Film Switch Rigid Flexible Printing Electric FPC Circuit Board Film Switch
