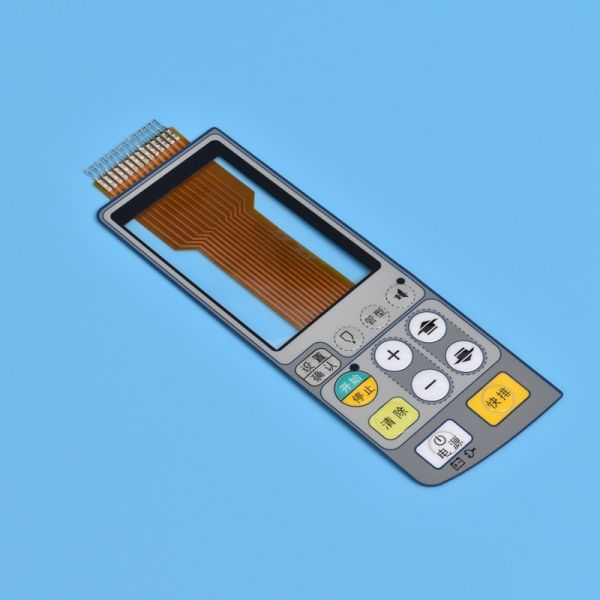

Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Keyboard Flexible Printed Printing FPC Circuit Board
Specifications
MOQ :
100
Price :
0.6
Model NO. :
HC-FPC-009
Combination Mode :
Adhesive Flexible Plate
Conductive Adhesive :
Conductive Silver Paste
Flame Retardant :
HB
Processing Technology :
Electrolytic Foil
Base Material :
Copper
Insulation Materials :
Organic Resin
Size :
289.00mm * 216.00mm
Key Count :
136 Keys
Key Type :
Metal Dome and Embossing
Connector Type :
65pin (Zif)
Overlay Colors :
11 Colors
LED Count :
12PCS
Wire Resistance :
≤ 1 Ohm/cm
Current Rating :
25-100mA, 0-30V DC
Description

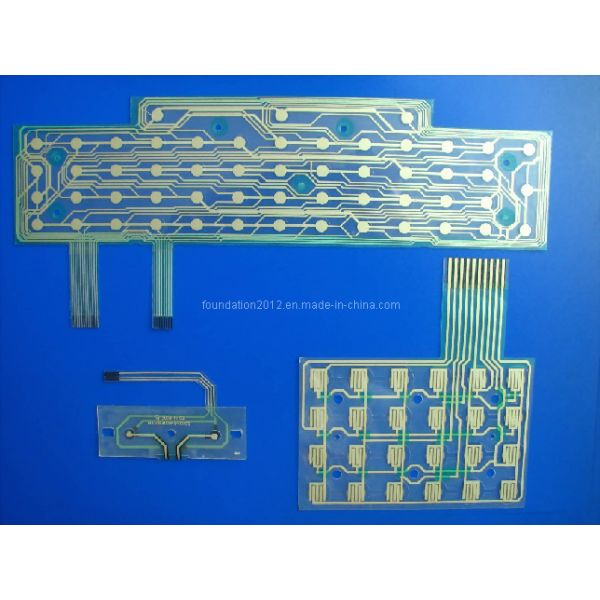

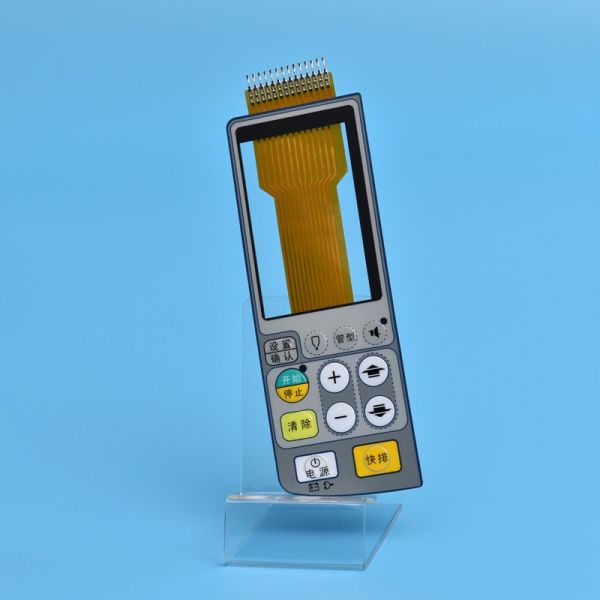

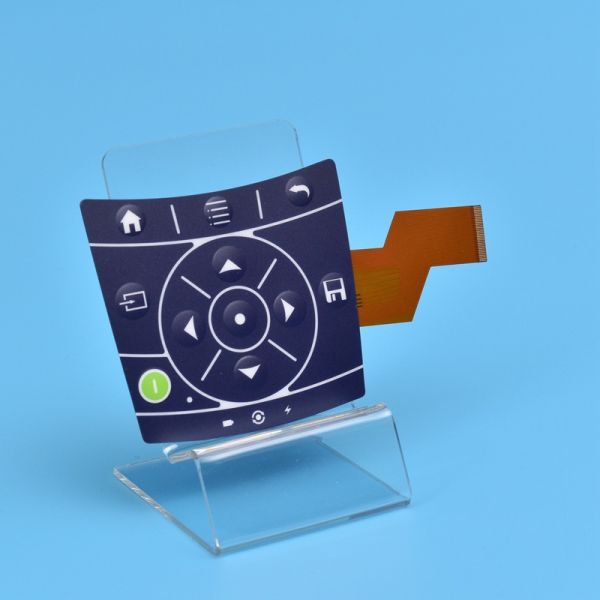

Keyboard Flexible Printed Circuit (FPC) Board
Keyboard Flexible Printed Printing FPC Circuit Board Keyboard Flexible Printed Printing FPC Circuit Board Keyboard Flexible Printed Printing FPC Circuit Board Keyboard Flexible Printed Printing FPC Circuit Board Keyboard Flexible Printed Printing FPC Circuit Board
We are a professional manufacturing company with comprehensive production systems and stable technical teams. We provide complete one-stop service solutions for flexible printed circuit boards.
Layer Structure
  • Overlay
  • Overlay adhesive
  • Dome retainer
  • Metal dome
  • Spacer adhesive
  • Circuit
  • Rear adhesive (customizable as requested)
Production Capabilities
  • Screen Print Department
  • IR Tunnel
  • Thickness Tester
  • IR Oven
  • Laser Cutting Machine

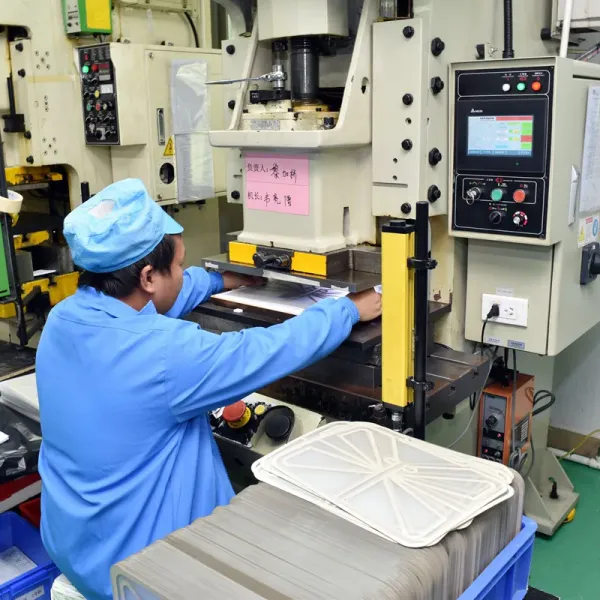

  • Punching Department
  • Emboss Key Section
  • Assemble
  • Electric Testing
  • OQC Department
  • Virtual Aspect Testing
  • Punch Machine Department
  • PU Coating Section
Technical Specifications
Parameter Specification
Wire Resistance ≤ 1 Ohm/cm
Current Rating 25-100mA, 0-30V DC
Work Voltage ≤ 50V DC
Insulation Voltage ≤ 100M Ohm 250V DC
Working Life ≤ One Million Times
Work Temperature -40°C to 70°C
Work Humidity 40°C ≤ 98%RH
Basic Material Pressurization 1500V DC
Please contact us for more detailed information and technical specifications. Let's discuss your specific requirements!
