Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Specifications
MOQ :
100
Price :
0.6
Model NO. :
HC-FPC-008
Combination Mode :
Adhesive Flexible Plate
Conductive Adhesive :
Conductive Silver Paste
Flame Retardant :
HB
Processing Technology :
Electrolytic Foil
Base Material :
Copper
Insulation Materials :
Organic Resin
Size :
230.00mm * 176.00mm
Connector :
65pin (Zif)
LED Count :
12PCS
Wire Resistance :
≤ 1 Ohm/cm
Current Rating :
25-100mA, 0-30V DC
Work Voltage :
≤ 50V DC
Insulation Voltage :
≤ 100M Ohm 250V DC
Working Life :
Over One Million Times
Description
Keyboard PET Flexible Printing Circuit Board Electronic Membrane Switch
High-quality membrane switches manufactured with PET/PC raw materials and flexible printed circuit technology using silk screen printing methods.
Key Features
  • Membrane switch with windows
  • Touch feeling keys with embossing
  • Silk screen printing for perfect exterior
  • Over 1 million life cycle
  • High quality construction
Technical Specifications
Wire Resistance ≤ 1 Ohm/cm Life Time > 1 Million times
Current Rating 25-100mA, 0-30V DC Operation Temperature -40ºC ~ 70ºC
Rated Voltage ≤ 50V DC Operation Humidity at 40ºC, ≤ 98%RH
Insulation Resistance ≤ 100M Ohm 250V DC Dome Springback Time < 5 msec
Switch Travel Flat Type 0.05-0.3mm Base Material Voltage Withstand 1500V DC
Tactile Type 0.3-1.5mm Tail Flexibility Any angle within 180 degree
Materials
  • Material: PET/PC
  • Adhesive: 3M467 & 3M468 or as per request
  • High lifetime: >1 million times
  • Certifications: ISO9001:2008, RoHS, SGS
Applications
  • Medical Equipment
  • Telecommunications Apparatus
  • Telephone Systems
  • Household Appliances
  • Security Systems
  • Industrial Controls
Product Details
Place of Origin Dong Guan, China
Brand Name Foundation
Model Number HC-MS-002
Certification ISO9001:2008, SGS, Rohs
Commercial Terms
  • MOQ: 50pcs
  • Payment Terms: T/T or L/C
  • Mold Charge: 100% in Advance
  • Sample Time: 9-10 days after drawing approval
  • Lead Time for Production: 15-22 days after sample approval
Company Advantages
  • Experienced management team with extensive field expertise
  • Professional staff and skilled workers
  • Strong R&D capability
  • Quick delivery service
  • Competitive pricing
  • Two factories available for large orders
  • Expert sales team and excellent customer service

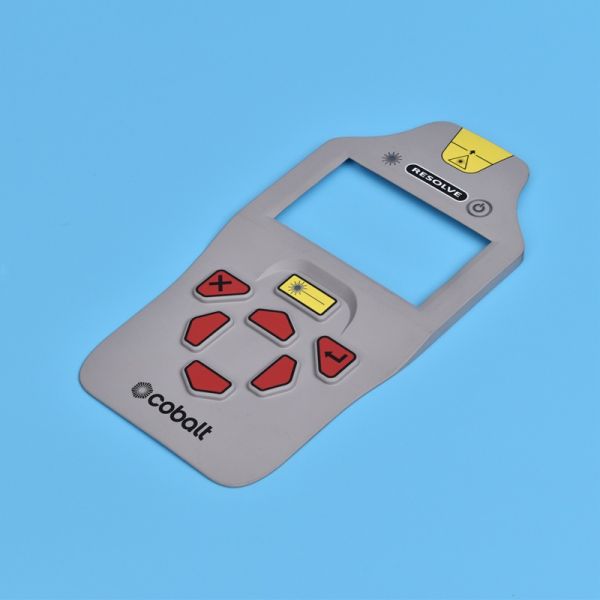

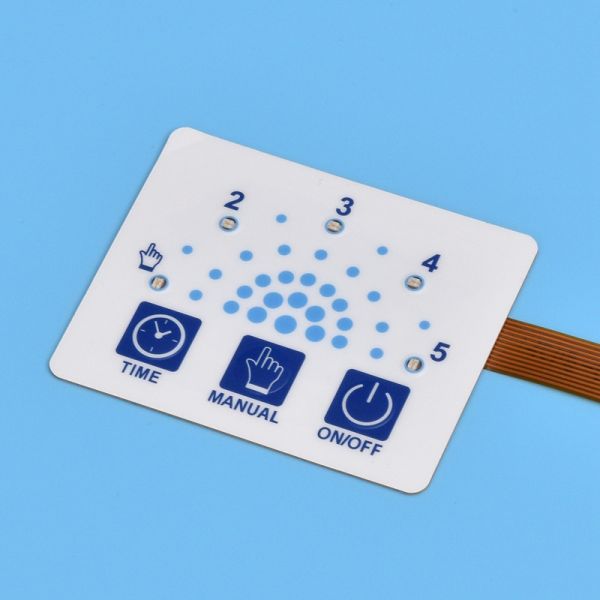

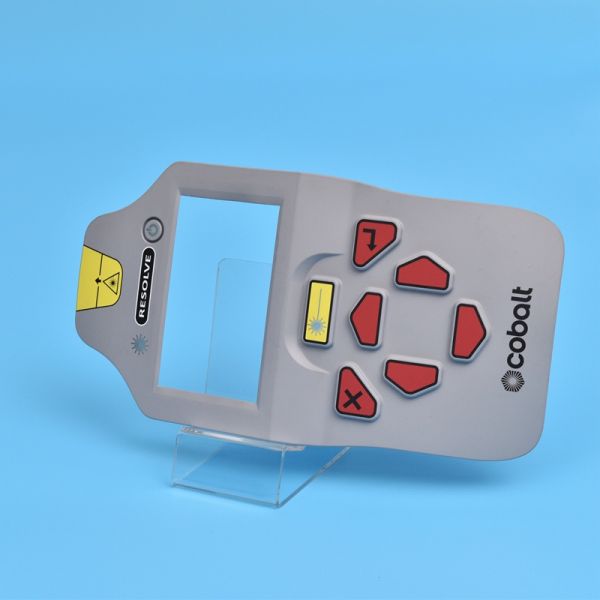

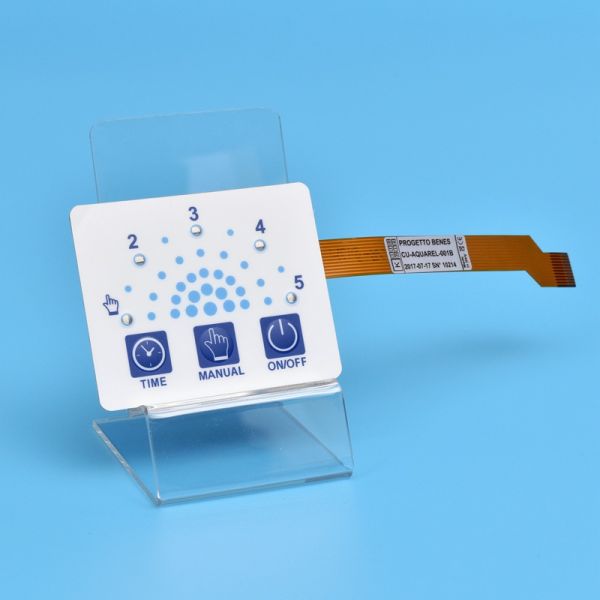

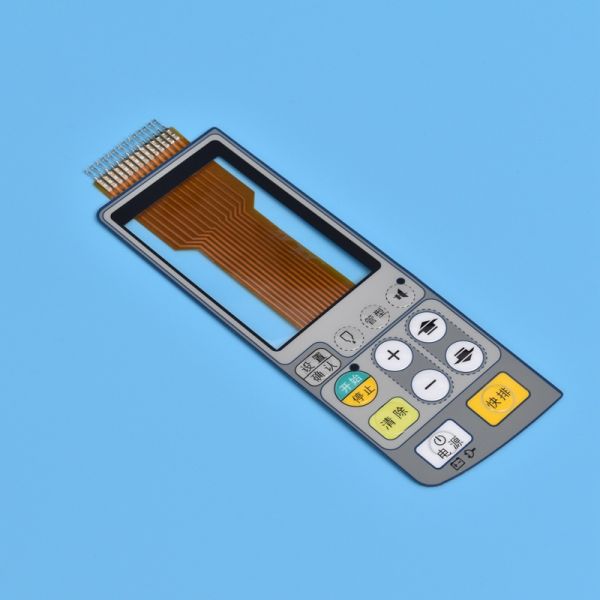

Product Images
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Contact us for more detailed information and customized solutions. Let's discuss your specific requirements!
