Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Specifications
MOQ :
100
Work Voltage :
≤ 50V DC
Work Humidity :
40 Centigrade-≤ 98%RH
Working Life :
≤ One Million Times
Certification :
ISO9001
Dome Springback Time :
<5 msec
Material :
Silicone
Tactile Type :
0.3-1.5mm
Contact Type :
Type c Contact
Current Rating :
25-100mA, 0-30V DC
Switch Travel :
Flat Type 0.05-0.3mm
Production Capacity :
1000.000PCS/Year
Insulation Voltage :
≤ 100M Ohm 250V DC
Work Temperature :
-40 Centigrade-70 Centigrade
Wire Resistance :
≤ 1 Ohm/cm
Base Material Voltage :
1500V DC
Tail Flexibility :
any angle within 180 degree
Description
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
Professional membrane switch assembly featuring multiple layers for reliable electronic switching applications.
Layer Construction
  • Overlay
  • Overlay adhesive
  • Dome retainer
  • Metal dome
  • Spacer adhesive
  • Circuit
  • Rear adhesive (optional)
Production Capabilities
Our comprehensive manufacturing facility includes:
  • Screen Print Department
  • IR Tunnel & Oven
  • Thickness Tester
  • Laser Cutting Machine
  • Punching Department
  • Emboss Key Section
  • Assembly Line
  • Electric Testing
  • OQC Department
  • Virtual Aspect Testing
  • Punch Machine Department
  • PU Coating Section
Technical Specifications
Parameter Specification Parameter Specification
Wire Lead Resistance <1Ω/CM Life Time >1 Million times
Rated Current 25-100mA, 0-30V DC Operation Temperature -40°C to 70°C (-104°F to 158°F)
Rated Voltage <50V DC Operation Humidity 40°C <98%RH
Insulation Resistance <100MΩ, 250V DC Dome Springback Time <5 msec
Switch Travel (Flat Type) 0.05-0.3mm Base Material Voltage Withstand 1500 V DC
Switch Travel (Tactile Type) 0.3-1.5mm Tail Flexibility Any angle within 180 degrees
Foundation Technology Manufacturing Limited employs a team of senior experts specializing in membrane switch production, including PVC inlay, membrane circuit printing, metal dome integration, and heat seal connector products.
"Quality first, Customer first"

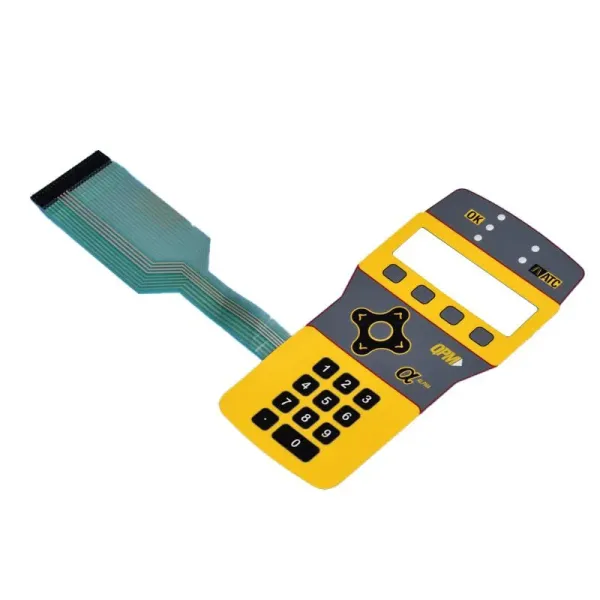

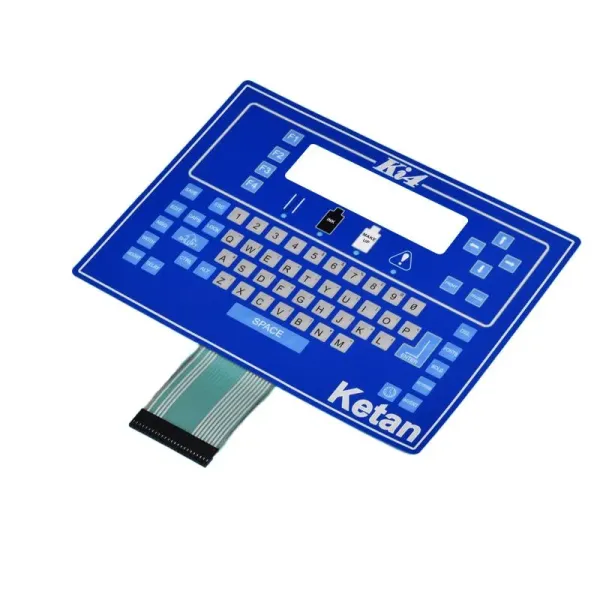

Product Images
Metal Dome Graphic Overlay Membrane Keypad Electronic Switch Metal Dome Graphic Overlay Membrane Keypad Electronic Switch Metal Dome Graphic Overlay Membrane Keypad Electronic Switch Metal Dome Graphic Overlay Membrane Keypad Electronic Switch Metal Dome Graphic Overlay Membrane Keypad Electronic Switch
