Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Silicone Rubber Keypad for Epoxy
Specifications
Operation Humidity :
at40ºC,<98%RH
Production Capacity :
50000000/Year
MOQ :
1
Insulation resistance :
<100MΩ,250V DC
Material :
PET /PC
Dome springback time :
<5 msec
Life time :
>1million times
Rated current :
25-100mA,0~30V DC
Specification :
20g
Adhesive :
3M467 & 3M468
Tactile type :
0.3-1.5mm
Base Material voltage withstand :
1500 V DC
Price :
1.5
Operation Temperature :
-40ºC~70ºC
Switch travel :
Flat Type 0.05-0.3mm
Wire lead resistance :
<1Ω/CM
Rated Voltage :
<50V, DC
Description
Silicone Rubber Keypad for Epoxy
High-quality membrane switch designed for epoxy applications with superior tactile response and durability.
Product Overview
  • Membrane Switch with windows
  • Touch feeling keys with embossing
  • Silk Screen Printing
  • Over 1 million life cycles
  • Metal dome or silicone keypad options available
Product Specifications
Place of OriginDong Guan China
Brand NameFoundation
Model NumberHC-MS-003
CertificationISO9001:2008, SGS, Rohs
Materials & Construction
  • Material: PET / PC
  • Adhesive: 3M467 & 3M468 or as per request
  • High lifetime: >1 million cycles
  • Certifications: ISO9001:2008, RoHS, SGS
  • Premium quality construction
Technical Specifications
Wire Lead Resistance<1Ω/CMLifetime> 1 Million times
Rated Current25-100mA, 0~30V DCOperation Temperature-40ºC ~ 70ºC
Rated Voltage<50V, DCOperation Humidityat 40ºC, <98%RH
Insulation Resistance<100MΩ, 250V DCDome Springback Time<5 msec
Switch TravelFlat Type 0.05-0.3mmBase Material Voltage Withstand1500 V DC
Tactile Type0.3-1.5mmTail FlexibilityAny angle within 180 degree
Commercial Terms
MOQ100pcs
Payment TermsT/T or L/C
Mold Charge100% in Advance
Sample Time9-10 days after drawing approval
Production Lead Time15-22 days after sample approval
Applications
  • Medical Equipment
  • Telecommunications Apparatus
  • Telephone Systems
  • Household Appliances
  • Security Systems
  • Industrial Controls
Company Advantages
  • Experienced top management in the field
  • Professional staff and workers
  • Strong R&D capability
  • Quick Delivery
  • Competitive pricing
  • Two factories available for large orders
  • Expert sales team and excellent customer service

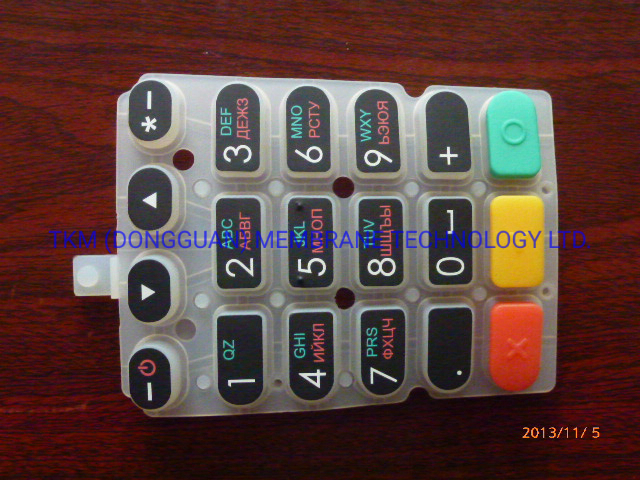

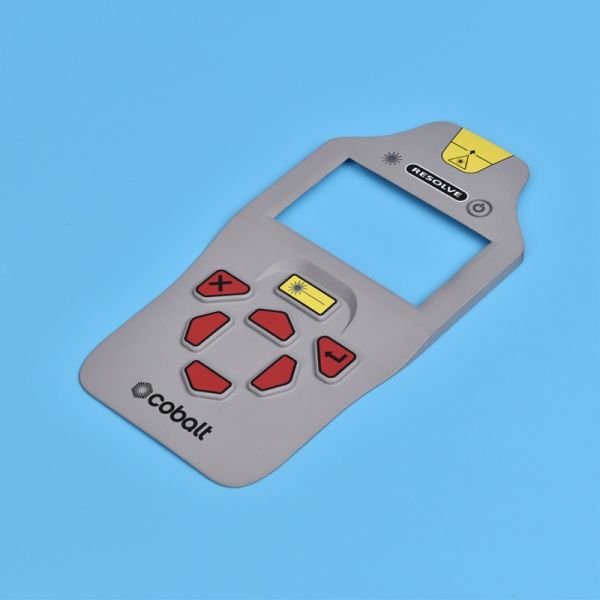

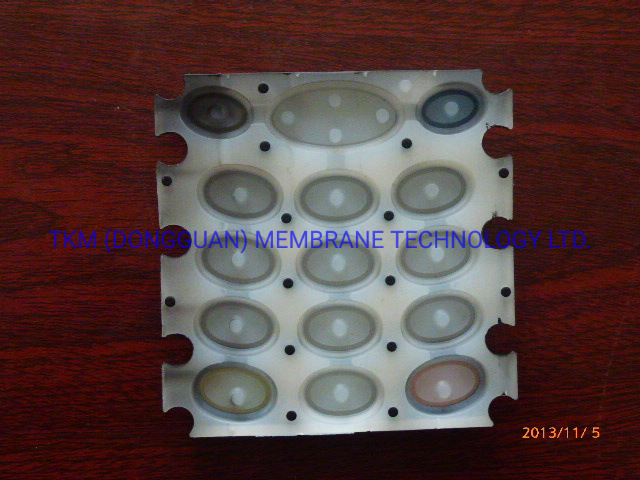

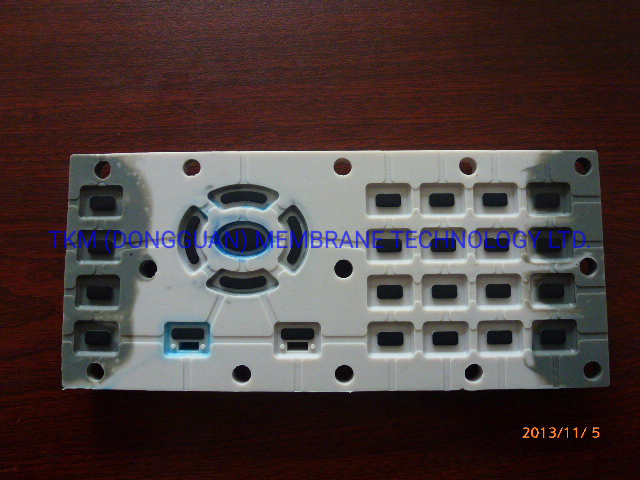

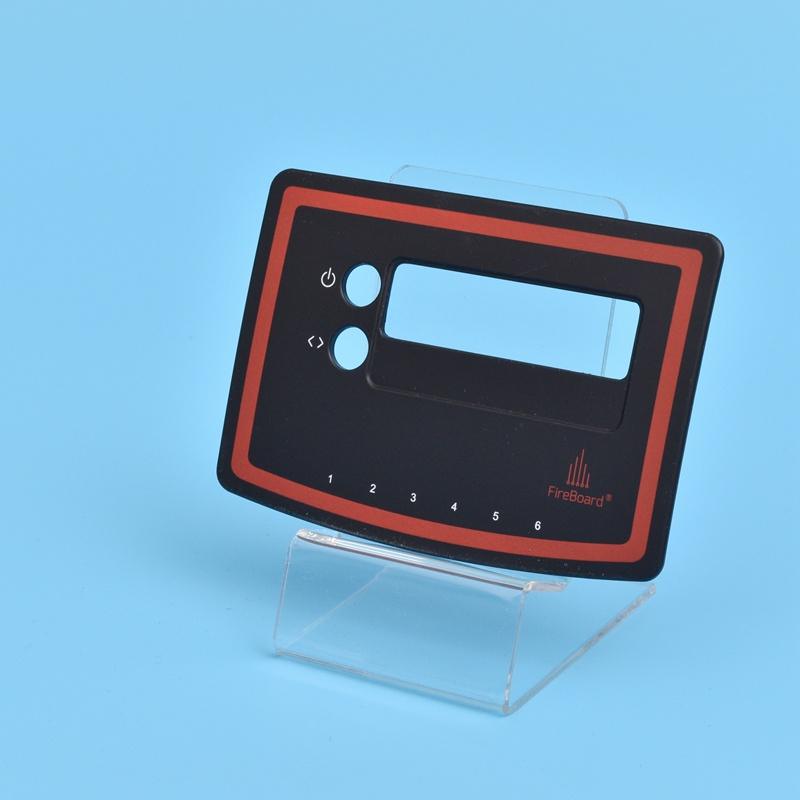

Product Images
Silicone Rubber Keypad for Epoxy Silicone Rubber Keypad for Epoxy Silicone Rubber Keypad for Epoxy Silicone Rubber Keypad for Epoxy Silicone Rubber Keypad for Epoxy Silicone Rubber Keypad for Epoxy
