Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
Specifications
Tail flexibility :
any angle within 180 degree
Certification :
ISO9001
MOQ :
100
Isolation of electric :
Yes
Spring time :
≤ 5ms
Substrate voltage :
2000V DC
Contact resistance :
<1Ω /cm
Temperature stabilized :
Yes
Material :
Silicone
Weather fastness :
ozone resistance, UV resistance
Insulation Resistance :
<100MΩ,250V DC
Service life :
>1 million times
Working current :
25-100mA,0-30V DC
Contact Type :
Type c Contact
Operating humidity :
when40°C,<98%RH
Switch travel :
Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
Operating voltage :
≤ 50VDC
Description
Corrosion Resistance 3M Adhesive Membrane Switch Moisture Proof Silicone Rubber Keypad
Product Overview

High-performance membrane switch featuring 3M adhesive backing, exceptional corrosion resistance, and moisture-proof silicone rubber construction for reliable operation in demanding industrial environments.

Key Features
  • Temperature stabilized performance
  • Electrical isolation capabilities
  • Superior weather fastness, ozone resistance, and UV resistance
  • Stable appearance maintained through high-temperature compression
  • Easy to manufacture and install
Competitive Advantages
  1. Beautiful appearance with rich, bright colors and customizable designs that reflect product individuality and designer creativity
  2. Washable panel with excellent protection for durable colors, characters, logos, and other content without damage
  3. Compact design with small size, light weight, thin thickness, good tactility, abrasion resistance, and convenient installation
  4. Superior tightness providing moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion, gas erosion protection, acid and alkali resistance, and quakeproof performance
  5. Cost-effective solution with high lifespan exceeding 100 million cycles across different membrane switch types
Technical Specifications
Insulation Resistance <100MΩ, 250V DC Contact Resistance <1Ω /cm
Operating Voltage ≤ 50VDC Working Current 25-100mA, 0-30V DC
Reliability/Service Life >1 million times / Withstand millions of cycles Operating Humidity When 40°C, <98% RH
Spring Time ≤ 5ms Substrate Voltage 2000V DC
Tail Flexibility Any angle within 180 degrees Switch Travel Flat Type: 0.05-0.3mm / Tactile Type: 0.3-1.5mm

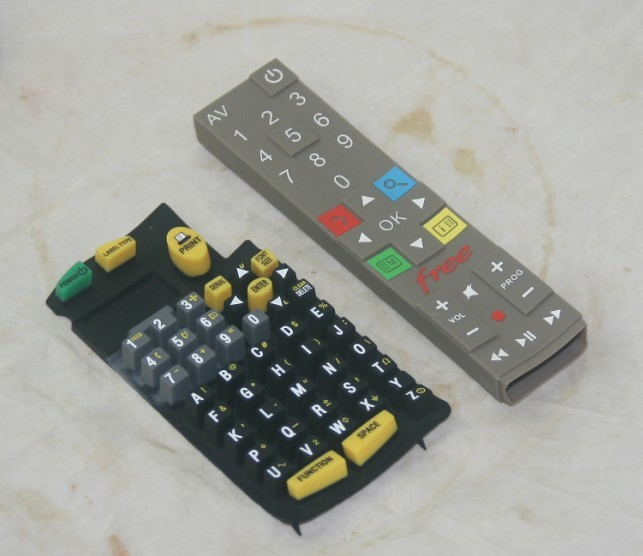

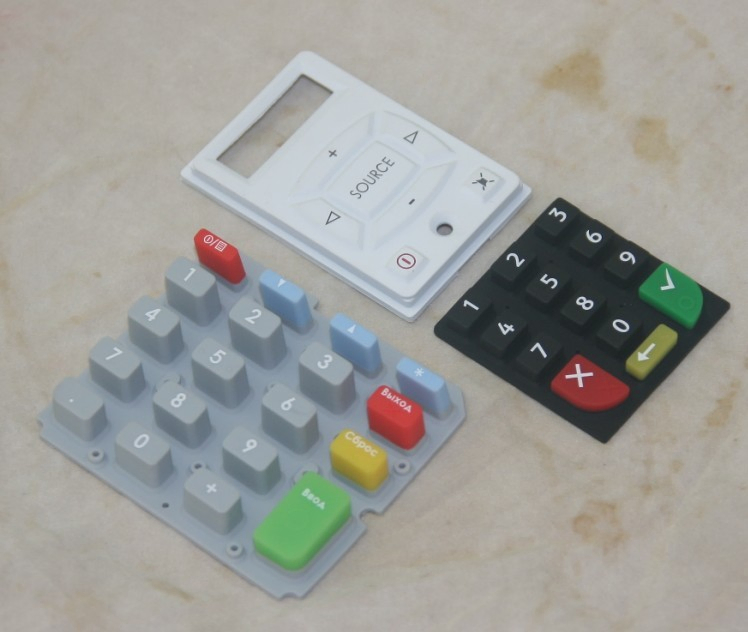

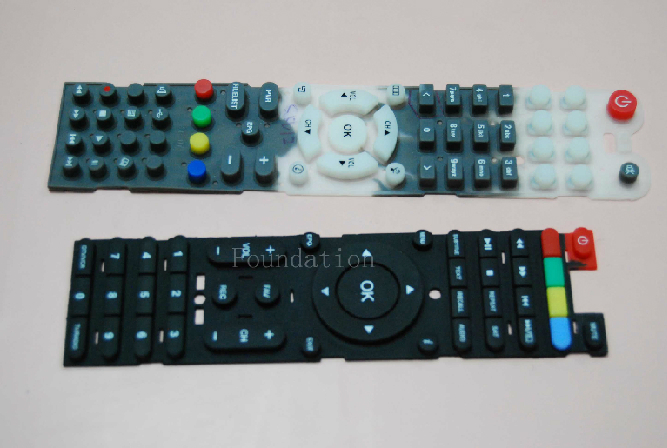

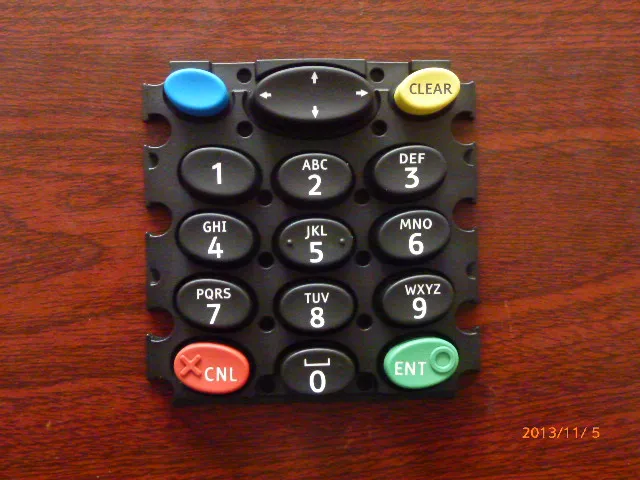

Product Images
Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad Corrosion Resistance 3m Adehsive Membrane Switch Moisture Proof Silicone Rubber Keypad
