Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Silicone Rubber Epoxy
Specifications
Material :
PET /PC
Operation Temperature :
-40ºC~70ºC
Life cycles :
>1million times
Rated current :
25-100mA,0~30V DC
Life time :
> 1 Million times
MOQ :
1
Switch travel :
Flat Type 0.05-0.3mm
Tactile type :
0.3-1.5mm
Adhesive :
3M467 & 3M468
Operation Humidity :
at40ºC,<98%RH
Dome springback time :
<5 msec
Wire lead resistance :
<1Ω/CM
Base Material voltage :
1500 V DC
Rated Voltage :
<50V, DC
Insulation resistance :
<100MΩ,250V DC
Price :
1.5
Tail flexibility :
any angle within 180 degree
Description
Silicone Rubber Epoxy Membrane Switch
High-performance membrane switch with windows featuring tactile feedback keys and embossing for superior user experience.
Key Features
  • Membrane switch with integrated windows
  • Tactile feedback keys with embossing
  • High-quality silk screen printing
  • Over 1 million life cycles
  • Metal dome or silicone keypad options available
Product Specifications
Place of Origin Dong Guan, China
Brand Name Foundation
Model Number HC-MS-003
Certification ISO9001:2008, SGS, Rohs
Material Composition
  • Material: PET/PC
  • Adhesive: 3M467 & 3M468 or custom options
  • High lifetime: >1 million cycles
  • Certifications: ISO9001:2008, RoHS, SGS
  • Premium quality construction
Technical Specifications
Parameter Specification Parameter Specification
Wire Lead Resistance <1Ω/CM Lifetime >1 Million cycles
Rated Current 25-100mA, 0~30V DC Operation Temperature -40ºC ~ 70ºC
Rated Voltage <50V, DC Operation Humidity at 40ºC, <98% RH
Insulation Resistance <100MΩ, 250V DC Dome Springback Time <5 msec
Switch Travel Flat Type 0.05-0.3mm Base Material Voltage Withstand 1500 V DC
Tactile Type 0.3-1.5mm Tail Flexibility Any angle within 180 degrees
Commercial Terms
Minimum Order Quantity 100pcs
Payment Terms T/T or L/C
Mold Charge 100% in Advance
Sample Time 9-10 days after drawing approval
Production Lead Time 15-22 days after sample approval
Applications
  • Medical Equipment
  • Telecommunications Apparatus
  • Telephone Systems
  • Household Appliances
  • Security Systems
  • Industrial Controls
Company Advantages
  • Experienced top management with extensive field expertise
  • Professional staff and skilled workforce
  • Strong research and development capabilities
  • Quick delivery times
  • Competitive pricing structure
  • Two factories available for large order fulfillment
  • Expert sales team and exceptional customer service

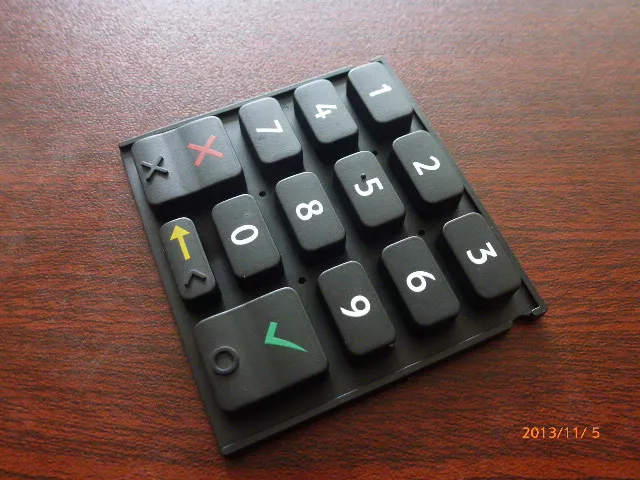

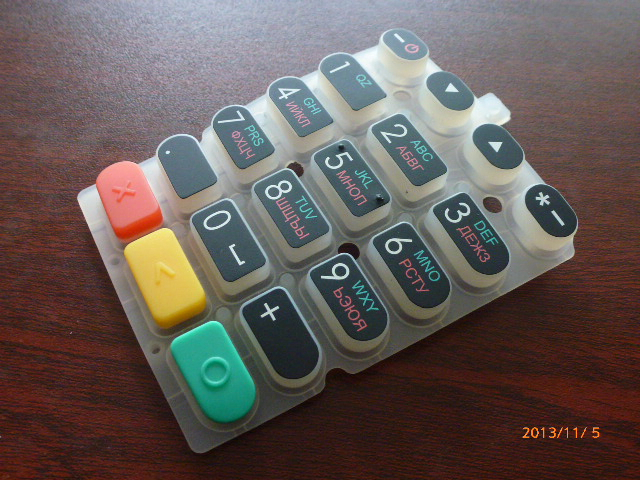

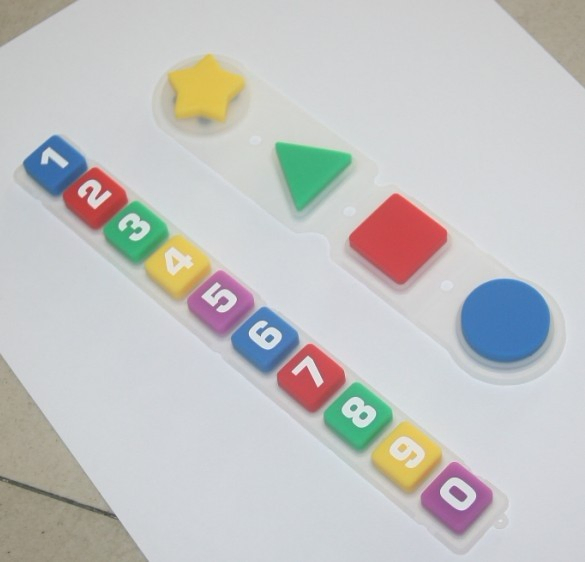

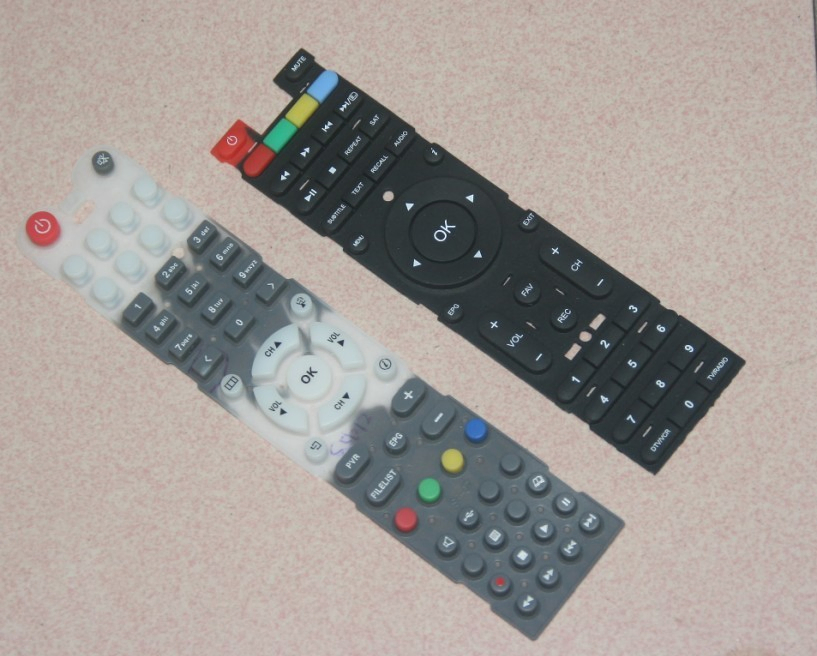

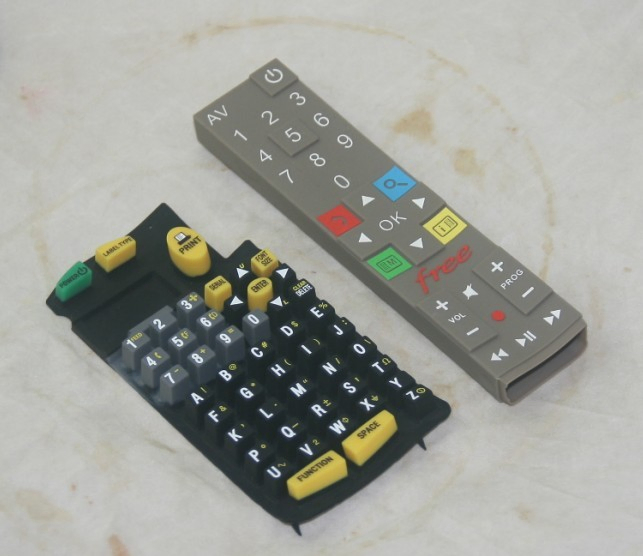

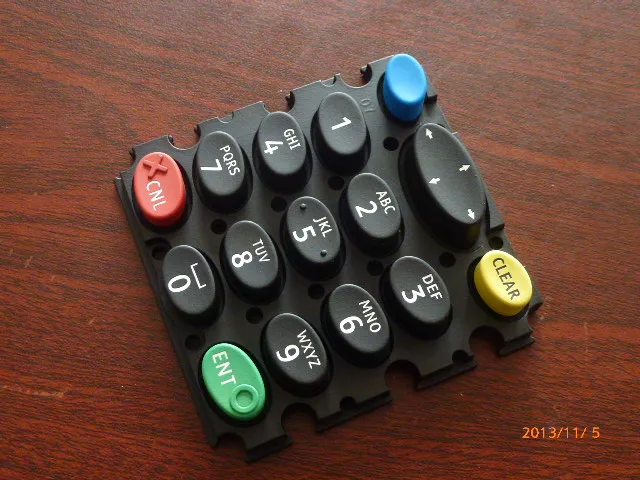

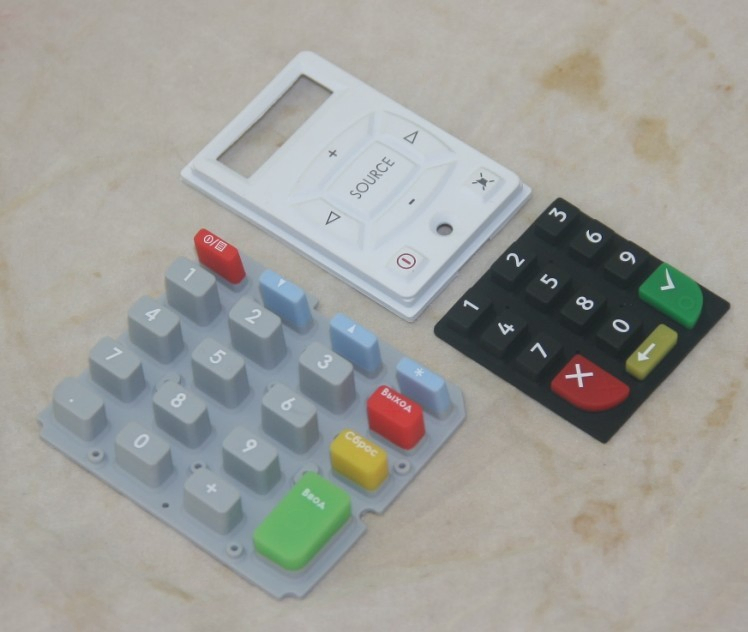

Product Images
Silicone Rubber Epoxy Silicone Rubber Epoxy Silicone Rubber Epoxy Silicone Rubber Epoxy
