Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
Specifications
Operation Humidity :
at40ºC,<98%RH
Tactile type :
0.3-1.5mm
Material :
PET/PC
Insulation resistance :
<100MΩ,250V DC
Switch travel :
Flat Type 0.05-0.3mm
Wire lead resistance :
<1Ω/CM
High life time :
>1million times
Tail flexibility :
any angle within 180 degree
Rated current :
25-100mA,0~30V DC
Base Material voltage :
1500 V DC
Life time :
>1 Million times

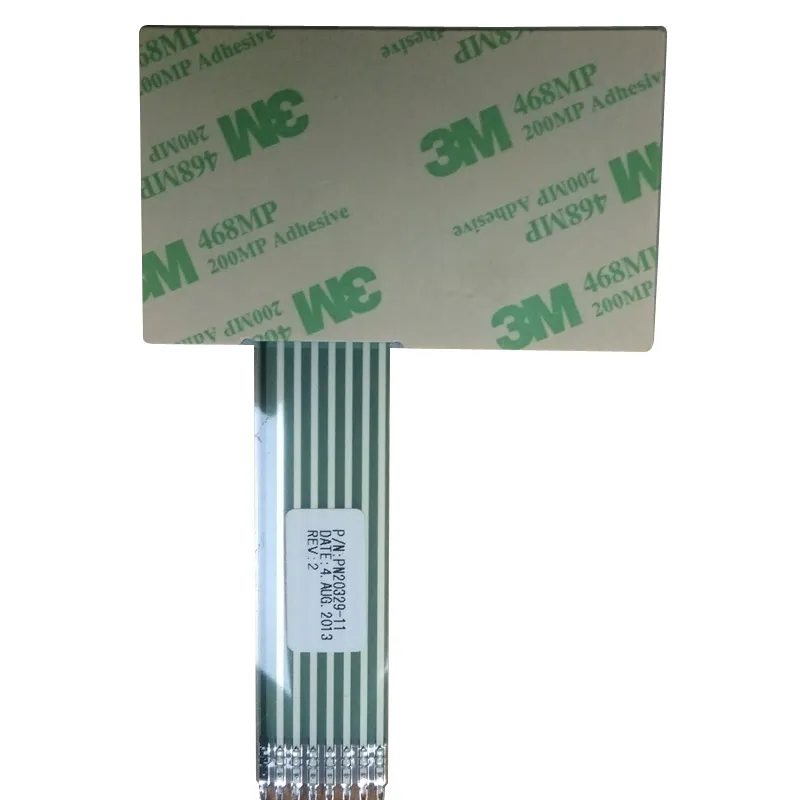

Adhesive :
3M467 & 3M468
Rated Voltage :
<50V, DC
Dome springback time :
<5 msec
Operation Temperature :
-40ºC~70ºC
Description
Resistan Silicone Rubber Wire Sheet Keyboard Keypad
Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product Resistan Silicone Rubber Wire Sheet Keyboard Keypad Product
With over ten years of design and manufacturing experience in Membrane Switches and Silicone Rubber Keypads, our products are widely used in electronics, appliances, hospital equipment, and military vehicles. We proudly serve more than 100 stable customers worldwide.
Silicone Material Advantages
Silicones create air-tight seals that protect sensitive electronic assemblies from contamination, ensuring long-term stability and performance. These non-corrosive, non-pyrophoric materials meet stringent safety requirements for electronics production. Their excellent insulating properties safeguard electrical circuitry from heat, dirt, and dust in applications ranging from consumer electronics to high-voltage power systems.
Product Specifications
Membrane Switch Features
  • Membrane Switch with windows
  • Touch feeling keys with embossing
  • Silk Screen Printing
  • Perfect exterior finish
  • Over 1 million life cycle
Technical Specifications
Parameter Specification Parameter Specification
Wire Lead Resistance <1Ω/CM Life Time > 1 Million times
Rated Current 25-100mA, 0~30V DC Operation Temperature -40ºC ~ 70ºC
Rated Voltage <50V, DC Operation Humidity at 40ºC, <98%RH
Insulation Resistance <100MΩ, 250V DC Dome Springback Time <5 msec
Switch Travel Flat Type 0.05-0.3mm Base Material Voltage Withstand 1500 V DC
Tactile Type 0.3-1.5mm Tail Flexibility Any angle within 180 degree
Materials & Construction
  • Material: PET/PC
  • Adhesive: 3M467 & 3M468 or as per request
  • High lifetime: >1 million times
  • Certifications: ISO9001:2008, RoHS, SGS
  • High quality construction
Applications
Our membrane switches are widely used in:
  • Medical Equipment
  • Telecommunications Apparatus
  • Telephone Systems
  • Household Appliances
  • Security Systems
  • Industrial Controls
Commercial Terms
  • MOQ: 50pcs
  • Payment Terms: T/T or L/C
  • Mold Charge: 100% in Advance
  • Sample Time: 9-10 days after drawing approval
  • Lead Time for Production: 15-22 days after sample approval
Company Advantages
  • Experienced Management: Top managers with extensive field experience
  • Professional Team: Skilled staff and workers
  • Strong R&D: Advanced research and development capabilities
  • Quick Delivery: Efficient production and shipping
  • Competitive Pricing: Cost-effective solutions
  • Production Capacity: Two factories available for large orders
Expert sales team and comprehensive customer service support.
Product Details
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-002
Certification: ISO9001:2008, SGS, Rohs
