High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
Specifications
Certification :
ISO9001, RoHS
Voltage :
3V
Spring time :
≤ 5ms
MOQ :
100
Transmission Distance :
>100m
Switch travel :
Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
Operating voltage :
≤ 50VDC
Working current :
25-100mA,0-30V DC
Operating humidity :
when40°C,<98%RH
Substrate voltage :
2000V DC
Signal Transmission :
IR Remote Control
Material :
Rubber
Insulation Resistance :
<100MΩ,250V DC
Production Capacity :
100,000PCS/Month
Contact resistance :
<1Ω /cm
Service life :
>1 million times
Tail flexibility :
any angle within 180 degree
Description
High Sensitivity Key Control Overlay Silicone Rubber Button Keyboard
We have more than ten years of experience in designing and manufacturing membrane switches and silicone rubber keypads. Our products are widely used in electronics, appliances, hospital equipment, and military vehicles. We take pride in providing exceptional service to over 100 stable customers worldwide.
Competitive Advantages
  • Beautiful appearance with rich, bright colors and customizable designs that reflect product individuality
  • Washable panel with excellent protection for durable colors, characters, logos, and other content
  • Compact size, lightweight construction, thin profile, excellent tactile response, and abrasion resistance
  • Superior sealing properties providing moisture, dust, water, oil, corrosion, and chemical resistance
  • Cost-effective solution with high lifespan exceeding 100 million cycles
  • Easy to operate with intuitive design, safety, and reliable 100% functional testing
  • Custom specifications available with various key shapes and configurations
  • Durable character printing that withstands cleaning without damage
Technical Specifications
Insulation Resistance <100MΩ, 250V DC Contact Resistance <1Ω /cm
Operating Voltage ≤ 50VDC Working Current 25-100mA, 0-30V DC
Reliability/Service Life >1 million cycles Operating Humidity When 40°C, <98% RH
Response Time ≤ 5ms Substrate Voltage 2000V DC
Tail Flexibility Any angle within 180 degrees Switch Travel Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm

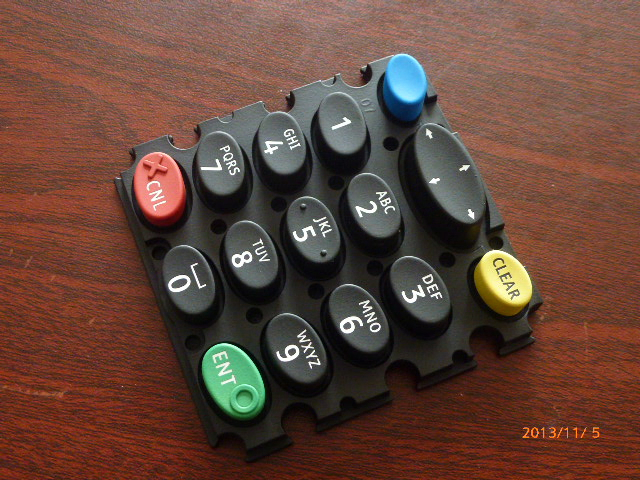

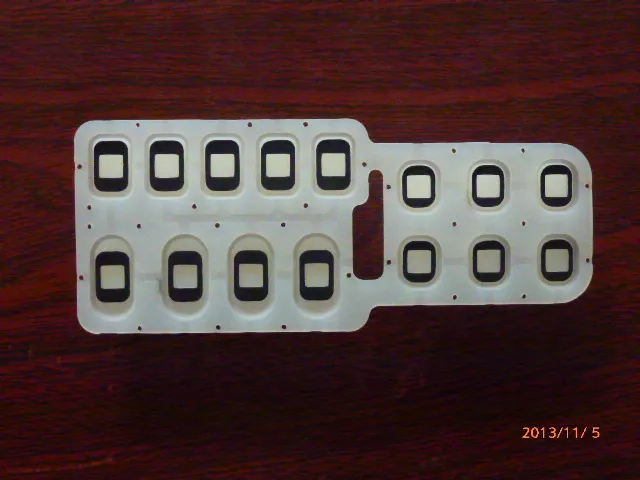

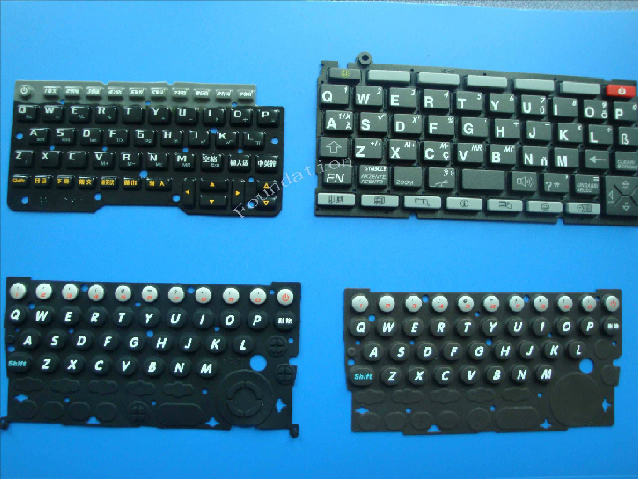

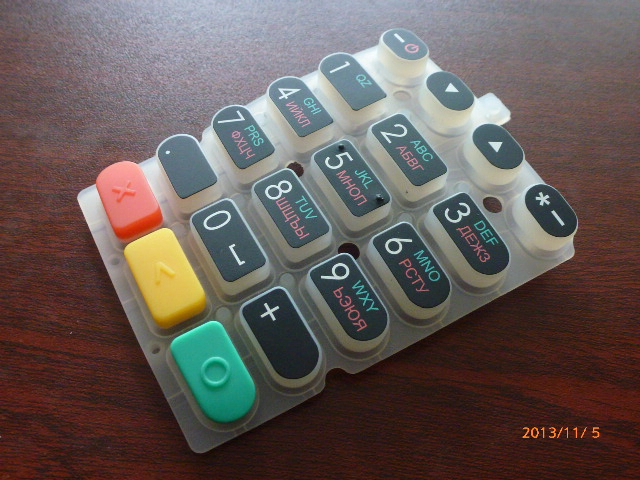

Product Images
High Sensivity Key Control Overlay Silicone Rubber Button Keyboard High Sensivity Key Control Overlay Silicone Rubber Button Keyboard High Sensivity Key Control Overlay Silicone Rubber Button Keyboard High Sensivity Key Control Overlay Silicone Rubber Button Keyboard
