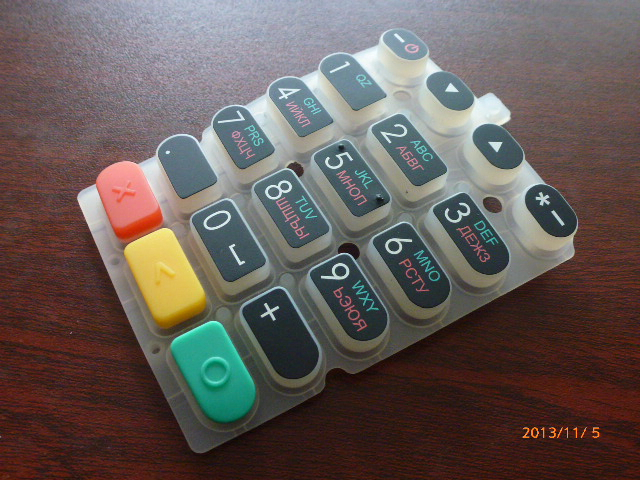

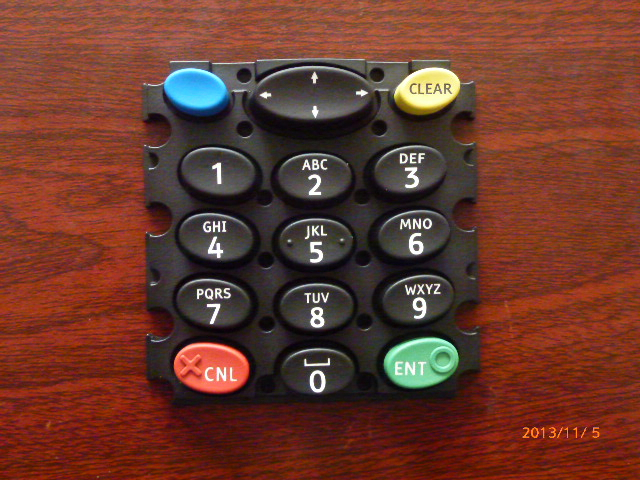

Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
Specifications
Rated Current :
25-100mA,0~30V DC
Certification :
ISO9001, RoHS
Signal Transmission :
Radio Waves
Insulation Resistance :
<100MΩ,250V DC
Voltage :
3V
Switch Travel :
Flat Type 0.05-0.3mm
Base Material Voltage :
1500 V DC
Material :
Plastic
Tail Flexibility :
any angle within 180 degree
Price :
0.2
Dome Springback Time :
<5 msec
Transmission Distance :
50-100m
Rated Voltage :
<50V, DC
Wire Lead Resistance :
<1Ω/CM
MOQ :
100
Operation Humidity :
at40ºC,<98%RH
Life Time :
>1 Million times
Operation Temperature :
-40ºC~70ºC
Description
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
With over ten years of design and manufacturing experience in membrane switches and silicone rubber keypads, we provide reliable solutions for electronics, appliances, medical equipment, and military vehicles. Our products serve more than 100 satisfied customers worldwide.
Product Features
  • Membrane switch with windows
  • Tactile feel keys with embossing
  • Silk screen printing
  • Premium exterior finish
  • Over 1 million life cycles
Technical Specifications
Wire Lead Resistance < 1Ω/CM
Rated Current 25-100mA, 0-30V DC
Rated Voltage < 50V DC
Insulation Resistance < 100MΩ, 250V DC
Switch Travel Flat Type: 0.05-0.3mm
Tactile Type: 0.3-1.5mm
Life Time > 1 Million times
Operation Temperature -40ºC to 70ºC
Operation Humidity at 40ºC, < 98% RH
Dome Springback Time < 5 msec
Base Material Voltage Withstand 1500 V DC
Tail Flexibility Any angle within 180 degrees
Construction Materials
Material: PET/PC
Adhesive: 3M467 & 3M468 or as requested
Certifications: ISO9001:2008, RoHS, SGS
Applications
  • Medical Equipment
  • Telecommunications Apparatus
  • Telephone Systems
  • Household Appliances
  • Security Systems
  • Industrial Controls
Commercial Terms
MOQ: 50pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Company Advantages
  • Experienced management team with extensive industry knowledge
  • Professional staff and skilled workforce
  • Strong research and development capabilities
  • Quick delivery times
  • Competitive pricing
  • Two factories available for large volume orders
  • Expert sales team and exceptional customer service
Product Images
Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031) Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031) Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031) Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031) Silicone Key Control Overlay Rubber Button Keypad (HC-SRK-031)
