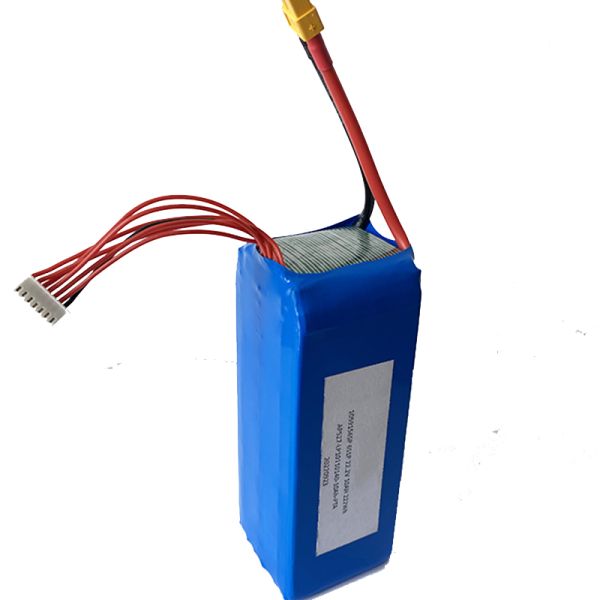

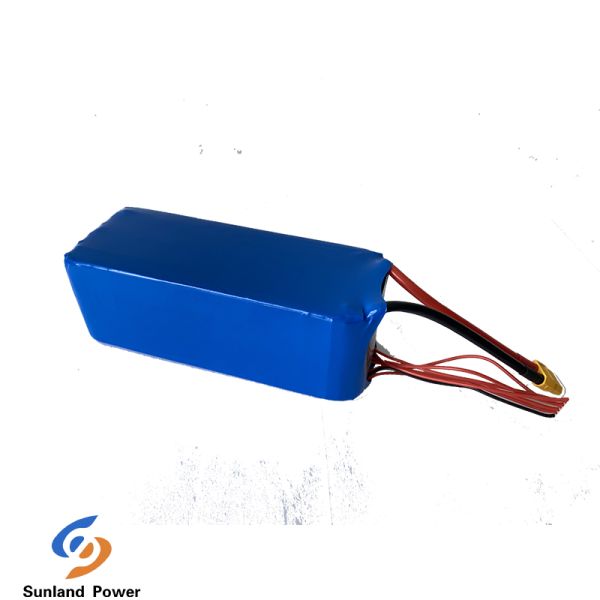

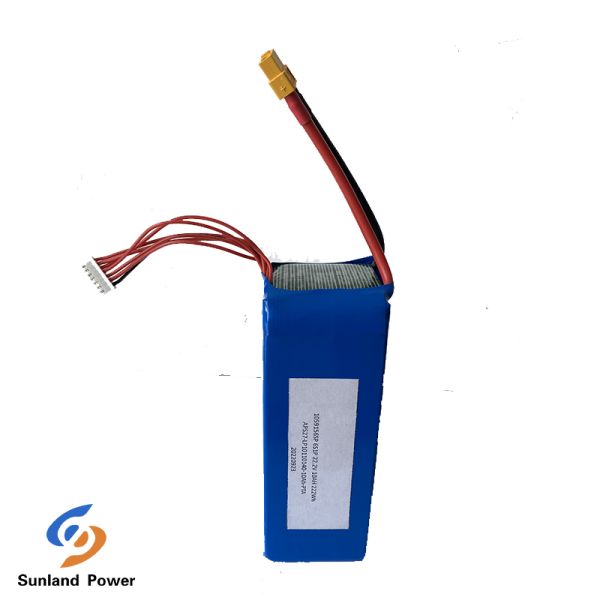

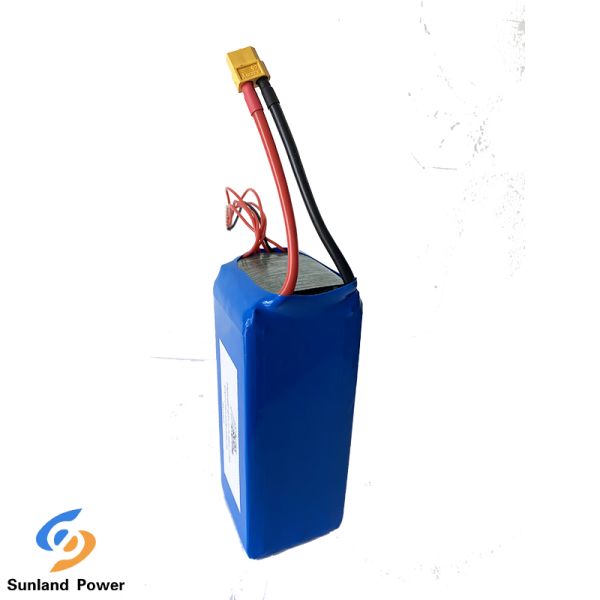

22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector
Specifications
Brand Name :
ODM OR OEM
Model Number :
1059156SP 6S1P
Certification :
UN38.3,ROHS,REACH,CE,UL
Place of Origin :
GUANGZHOU
MOQ :
1000pcs
Price :
USD77
Supply Ability :
10000PCS per month
Material :
Lithium ion polymer battery
Application :
UAV
Voltage :
22.2V
Capacity :
10AH
Size :
63mm*61mm*165mm
Description

22.2V 10AH Polymer Lithium Ion Battery For UAV With XT60,PH Connector

Item Specification Remark
3.1 Nominal Capacity 10000 mAh 0.5 C discharge
3.2 Minimum. Capacity 9800 mAh 0.5 C discharge
3.3 Nominal Voltage 22.2 V
3.4 Charge Voltage 25.2 ± 0.12 V
3.5 Charge Current Standard charge: 0.5 C ( 5000 mA)
Rapid charge : 1.0 C ( 10000 mA)
3.6 Charging Time Standard charge: 3.0 hours (Ref.)
Rapid charge: 2.0 hours (Ref.)
3.7 Max. charge current 1.0 C ( 10000 mA )
3.8 Cont.. Discharge Current 10.0 C ( 100 A )
15.0 C ( 150 A ) ≤ 30 S
3.9 Max. Discharge Current 25.0 C ( 250 A ) ≤ 1 S
3.10 Cutoff Voltage 18.0 V
3.11 Weight (Approx.) 1.3 KG
3.12 Dimensions(T.W.H.) Thickness: Max 63 mm
Width: Max 61 mm
Length: Max 165 mm
3.13 Operating Temperature Charge: 0 ~ 45℃
Discharge: 0 ~ 45℃
3.14 Storage Temperature Short period less 0℃~35℃ Long period more 10℃~25℃

22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector

22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector

22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector

22.2V 10AH Polymer Lithium Ion Batteries For UAV With XT60 PH Connector

No. Part Name Description Q’ty
1 Cell 1059156SP - 10000 mAh 6
2 Connector Balance:JST XH-7P 1
Discharge/Charge:XT60 1
3 PVC Black or blue 1
