ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
Specifications
Brand Name :
TAC OEM & ODM
Model Number :
ICM22-4-E2
Certification :
MSDS REACH ROHS UN38.3
Place of Origin :
Shenzhen
MOQ :
500 pcs for single cell , 50pack for battery packs
Price :
USD 23 each set
Payment Terms :
100% prepaid before shipping out
Supply Ability :
100000PCS EACH WEEK
Delivery Time :
7-10 days after order confirm for stock model
Packaging Details :
meet UN38.3 Certification
Place of Origin: :
Guang dong China
Brand Name: :
TAC
Model Number: :
ICM22-4-E2
Rated Capacity: :
4400mAh
Weight :
600g
Pack Dimension :
H75mm:W58mm:L76. 5mm
Warranty: :
12months
Environmental Compliance: :
BIS, ROHS, REACH,UN38.3
part no :
PLIC0867
Description

ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system

Description for ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system

1. Normal voltage:22.2V

2. Normal capacity:4400mAh

3. Long service life and economical

4. Excellent discharge characteristics

5. Long shelf life
6. Protect circuit board protected

7. Rcharge battery

8. 1 Year Warranty

9. MOQ: 50set

Quick Detail:

Place of Origin: Guang dong China Brand Name: TAC
Model Number:

ICM22-4-E2

Rated Capacity: 4400mAh

Weight:

 600g Voltage: 22.2V
OEM & ODM: Support Packing: PVC Packing
Warranty: 12months Environmental Compliance: BIS, ROHS, REACH

Packaging & Delivery:

Packaging Details: Standard Carton Package
Delivery Detail: 100 sets within 7days

ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system

ICR18650 22.2V 44Ah Cylindrical Li-ion Rechargeable Battery pack Specification:

No.

Item

General Parameter

Remark
1

Rated Capacity

 4.4Ah

Standard discharge(0.2C)after standard charge(0.2C)
2

Minimal Rated Capacity

 4.2Ah
3

Nominal Voltage

 22.2V
4

Cycle Life

 Higher than 80% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 25.2V, then CV till current to 0.02C

◆Rest: 30min.

◆Discharge: 0.2C to 18.0V

◆Temperature:20±5℃

◆Carry out 500cycles
5

Discharge cut-off voltage

 18.0V 18.0V(recommended)
6

Charging cut-off voltage

 25.2V 25.2V(recommended)
7

Cell and assembly method

 ICR18650-2200mAh 6S2P
8

Packing material

 PVC shrink

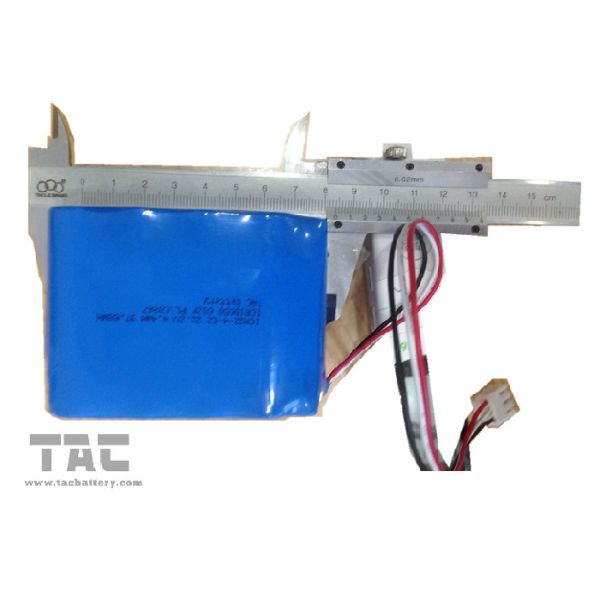

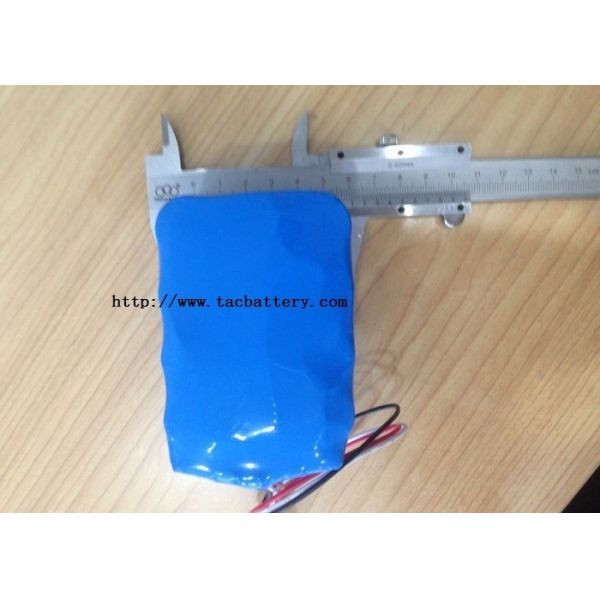

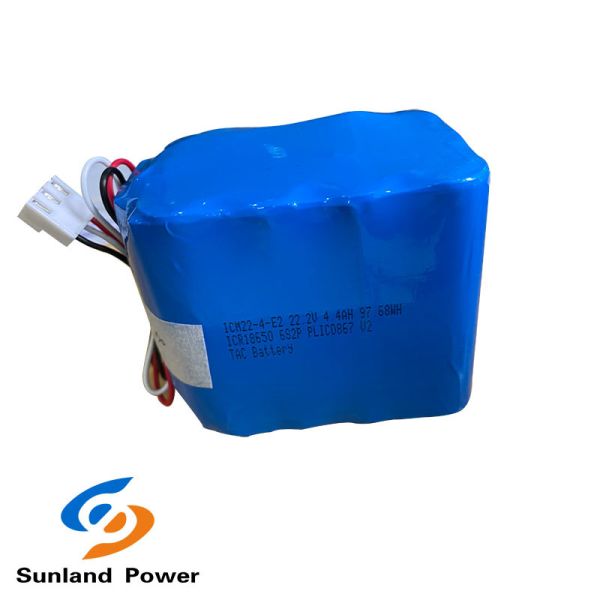

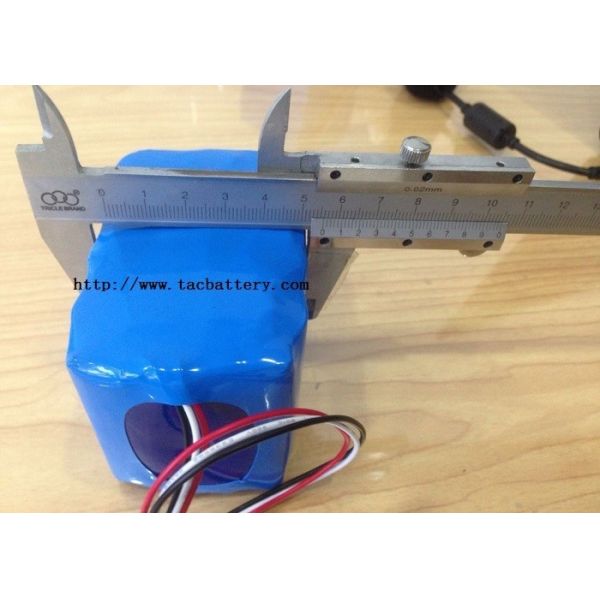

Picture for Cylindrical Li-ion Rechargeable Battery pack

Key Applications:

Widely applied in POS system, Solar supply system, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, Portable equipment: Laptop, camcorder,emergency light , Military equipment: IR telescope, Medical devices, household appliances, small portable Power tools and etc.

Certification

UL for singlce cell

UN38.3 certfication for pack

Similar Battery Pack for ICR18650

ICM22-4-E2 ICR18650 6S2P 22.2V 4400mAh Li-Ion Rechargeable Battery Pack For Loudspeakers system
