ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
Specifications
Brand Name :
TAC OEM & ODM
Model Number :
ICM22-4-E2
Certification :
MSDS REACH ROHS UN38.3
Place of Origin :
Shenzhen
MOQ :
500 pcs for single cell , 50pack for battery packs
Price :
Price negotiable
Payment Terms :
100% prepaid before shipping out
Supply Ability :
100000PCS EACH WEEK
Delivery Time :
7-10 days after order confirm for stock model
Packaging Details :
meet UN38.3 Certification
Place of Origin: :
Guang dong China
Brand Name: :
TAC
Model Number: :
ICM22-4-E2
Rated Capacity: :
4400mAh
Weight： :
600g
Voltage: :
22.2V
OEM & ODM: :
Support
Packing: :
PVC Packing
Warranty: :
12months
Compliance: :
BIS, ROHS, REACH
Production No :
PLIC0867
Description

ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers

Features for ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers


1.Model: li-ion 18650 6S2P battery pack assembled by ICR18650 2200MAH 3.7V single cell
2.Voltage: 22.2V ,full charge voltage 25.2V
3.Capacity: 4400mAh ,Mini capacity 4350mah
4.Dimension: H75:W58:L76.5MM weigt : 60g
5.Certificate: CE, UL, ROHS, REACH UN38.3 Certification
6. 1 Year Warranty
7. MOQ: 50set


Quick Detail for 18650 Battery 22.2V 44AH 6S2P Lithium Ion Pack For Outdoor Speaker

Place of Origin: Guang dong China Brand Name: TAC
Model Number: ICR18650 22.2V 44Ah Rated Capacity: 4400mAh
Weight: 600g Voltage: 22.2V
OEM & ODM: Support Packing: PVC Packing
Warranty: 12months Compliance: CE, UL, ROHS, REACH

Specification for 18650 Battery 22.2V 44AH 6S2P Lithium Ion Pack For Outdoor Speaker

No.

Item

General Parameter

Remark
1

Rated Capacity

 4.4Ah

Standard discharge(0.2C)after standard charge(0.2C)
2

Minimal Rated
Capacity

 4.2Ah
3

Nominal Voltage

 22.2V
4

Cycle Life

 Higher than 80% of the Initial Capacity of the Cells(

◆Charge: CC@0.2C to 25.2V, then CV till current to 0.02C
◆Rest: 30min.
◆Discharge: 0.2C to 18.0V
◆Temperature:20±5℃
◆Carry out 500cycles
5

Discharge cut-off voltage

 18.0V 18.0V(recommended)
6

Charging cut-off voltage

 25.2V 25.2V(recommended)
7

Cell and assembly method

 ICR18650-2200mAh 6S2P
8

Packing material

 PVC shrink

Charge and Discharger performance

No.

Item

General Parameter

Remark
9

Standard charge

0.2C constant current(CC) charge to 25.2V,then constant voltage (CC)25.2V charge till charge current decline to ≤0.02C

Charge time : Approx 6h
10

Standard discharge

Constant current 0.2C
Cut-off voltage 18.0V
11

Maximum Charge Current

 4A
12

Maximum Discharge Current

 4A
13

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -10~50℃
14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.
at the shipment state

Less than 3 months:-5~35℃
15

Weight

 Approx/: 600g
16

Pack Dimension

 High/:70.5mm Max Size
Width/: 58.0mm
Length/: 84. 0mm

Packaging & Delivery:



20-30days after the customer confirm the order and

ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers

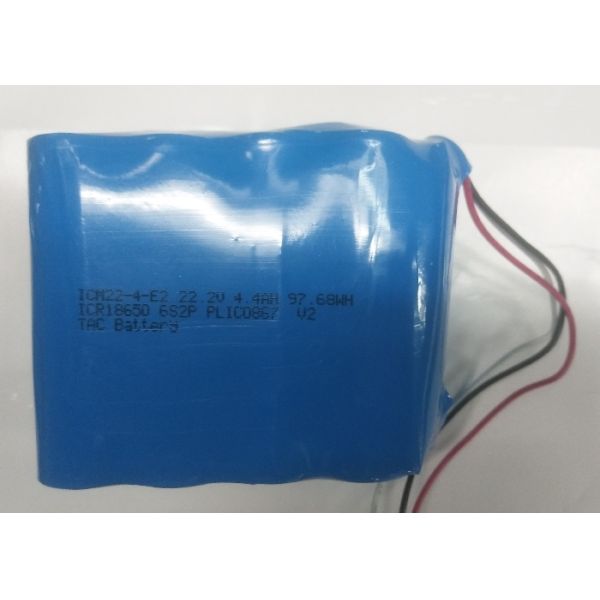

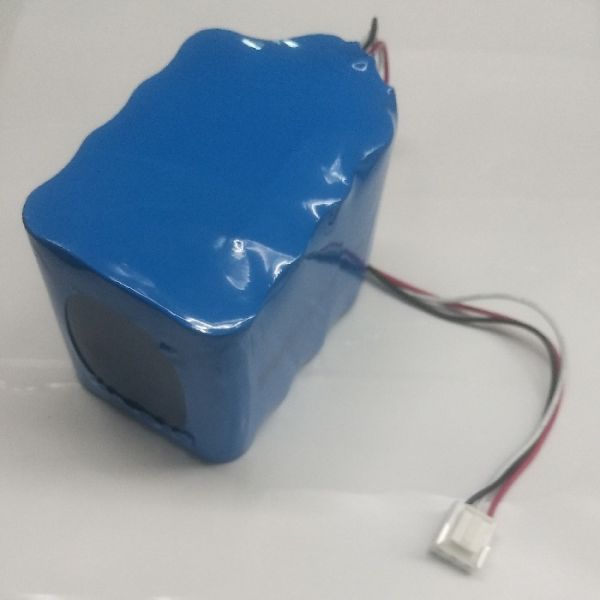

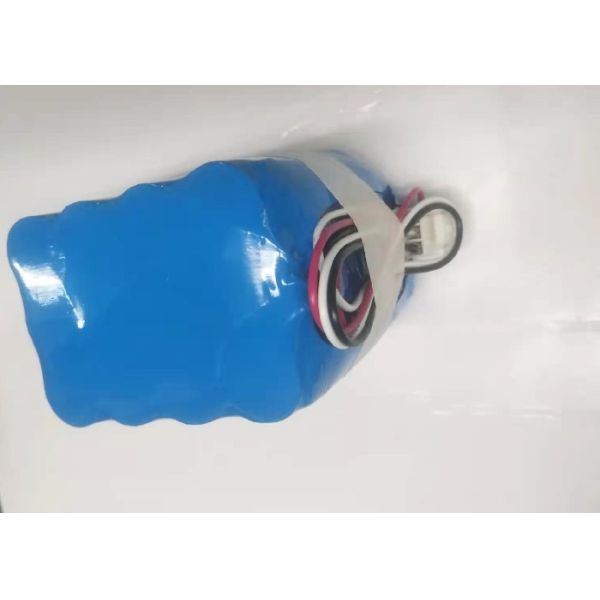

Picture for 18650 Battery Voltage 22.2V 44AH Lithium Battery

ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers

ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers

ICR18650 6S2P 22.2V 4.4AH Lithium Ion Pack For Subwoofers
