UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
Specifications
Brand Name :
TAC
Model Number :
22.2v 22ah
Certification :
ROHS
Place of Origin :
guangzhou
MOQ :
500pcs
Price :
usd185/ set
Supply Ability :
10000set/ month
Delivery Time :
15-20 work day
Packaging Details :
1 set / strong inner box / 10 box / export carton
material :
polymer lithiium-ion battery
voltage :
22.2V
Capacity :
22.2 Ah
size for cell :
12*90*190MM
discharge rate :
25C
Pack size :
with customer require
color :
blue
MOQ :
50 SET
customize :
acceptable
Description

UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane

Specification

Item Specification Remark
3.1 Nominal Capacity 22000 mAh 0.5 C discharge
3.2 Minimum. Capacity 21000 mAh 0.5 C discharge
3.3 Nominal Voltage 22.2 V
3.4 Charge Voltage 22.6 ± 0.06 V
3.5 Charge Current Standard charge : 0.5 C ( 2500 mA)
Rapid charge : 1.0 C ( 5 A)
3.6 Charging Time Standard charge : 3.0 hours (Ref.)
Rapid charge: 2.0 hours (Ref.)
3.7 Max. charge current 1.0 C ( 5 A )
3.8 Cont.. Discharge Current 25.0 C ( 125 A )
3.9 Max. Discharge Current 50.0 C ( 250 A ) ≤ 1 s
3.10 Cutoff Voltage 9 V
3.11 Resistance ≤ 10 mΩ 1kHz AC Method
3.12 Weight (Approx.) 1000 g
3.13 Dimensions(T.W.H.) Thickness: 28.5 ±1.0 mm
Width: 44.0 ±1.0 mm
Length: 136 ±2.0 mm
3.14 Operating Temperature Charge : 0 ~ 45℃
Discharge : 0 ~ 45℃
3.15 Storage Temperature Short period less 0℃~35℃ Long period more 0℃~25℃

Standard Test Conditions

Appearence:

There shall be no such defects as scratch, discoloration, leakage which may adversely affect commercial value of the cell

Environmental Conditions:

Unless otherwise specified, all tests stated in this specification are conducted at temperature 25±5℃ and humid-ity 60±20%.

Measuring Equipment

Ammeter and Voltmeter

Standard class specified in the national standard or more sensitive class

Specially Serve

  • competitive price base on quality product
  • Comprehensive service for order following and tracking.
  • lower Shipping cost
  • OEM and customize design for your potential marketing product.
  • Prompt reply within 24 hours.

Production Photos

UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane

​

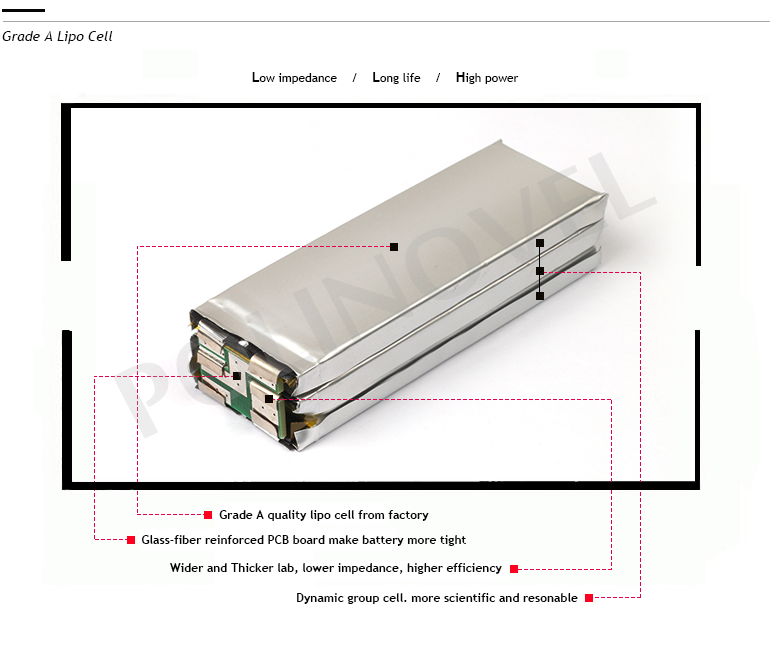

Inner construction for UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane

UAV Battery Pack Polymer Lithium ion 25C 22.2V 22ah For Air Plane
