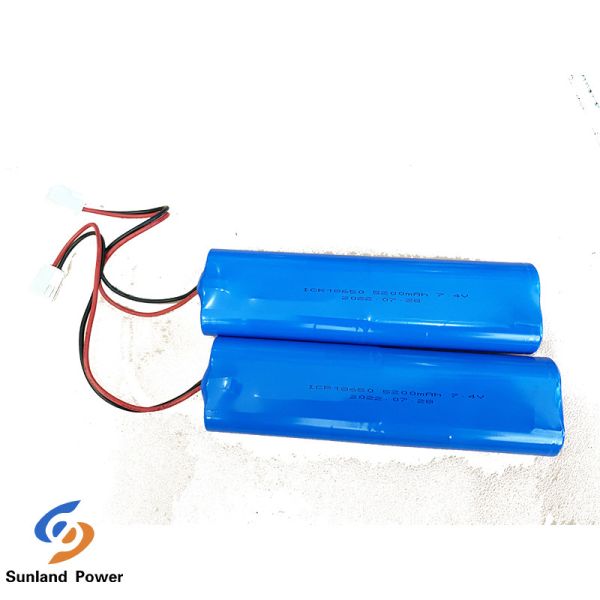

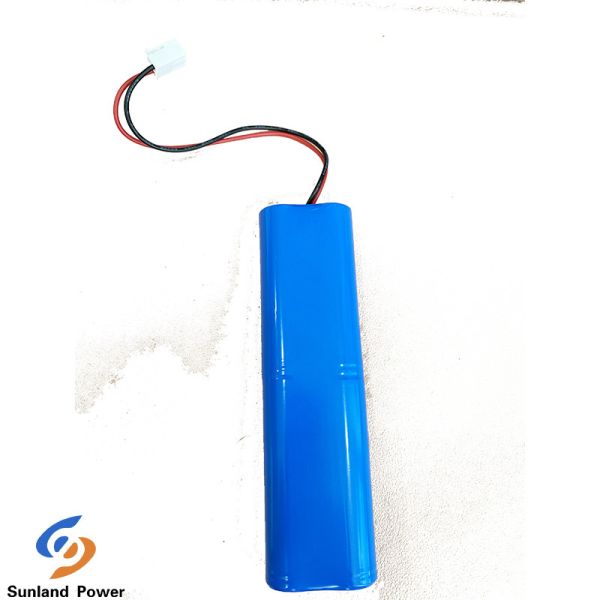

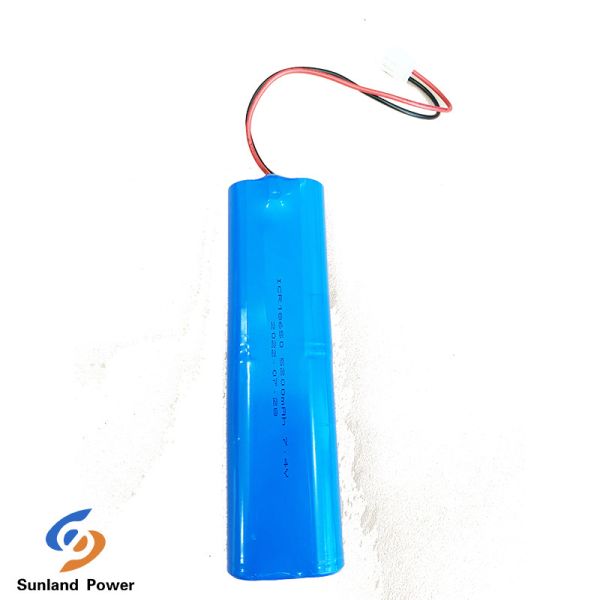

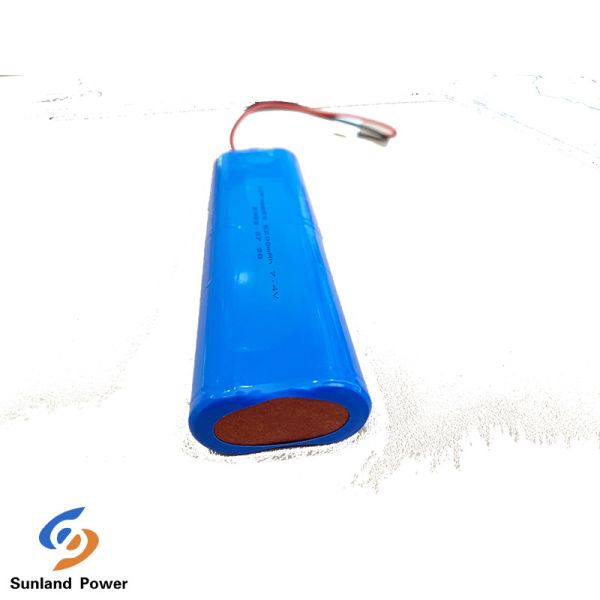

7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
Specifications
Brand Name :
ODM OR OEM
Model Number :
ICR18650 2S2P
Certification :
MSDS REACH ROHS UN38.3
Place of Origin :
GUANGZHOU
MOQ :
100pcs
Price :
USD3.3
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000PCS per month
Delivery Time :
30 days
Packaging Details :
100pcs per carton
Size :
22.5mm*38mm*134mm
Voltage :
7.4V
Capacity :
5.2Ah
Warranty :
1 year
Cycle life :
500 times
Application :
handheld network teste
Description

7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester

Description:

1. MODEL :ICR18650 2S2P

2. Nominal Capacity:5.2AH

3. Nominal Voltage:7.4V

4. Weight:180g

5. Size:22.5mm*38mm*134mm

6. Max continuous charge current:5A

7. Max continuous discharge current:5A

No.

Items

Specifications

Remark

1

Capacity for assembled cell discharging by 0.2C

≥5Ah

Standard discharging method

2

Battery Voltage

 ≥7.4V

Base on MOQ 10K Within 10 days from Factory

Battery SOC

 Appr 30%

3

Standard charge condition

Charge with 1A constant current and 8.4V constant voltage, charge to 8.4V,continue charging till current decline to ≤0.01C

Charge voltage: 8.4V±0.03V Charge current:1A
4

Max continuous charge current

2A

5

Standard discharging method

2A constant current discharge to 6V,

6

Max continuous discharge current

5A

7

Internal Impedance

Assemblage Impedance

Measure the Red and black wire of the connector after assembling.
8

Charge upper limit temperature

 0-45℃

Charging at low temperature, capacity and cycle life will reduce.
9

Discharge upper limit temperature

 -20-60℃
10 Connector JST VH-2N

The original JST connectors (PHR-4P)
11 Wire UL1007 22AWG

Outside diameter Max :1.5mm
12 Date code Cell date code and battery date code not beyond 3month

7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester

7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
