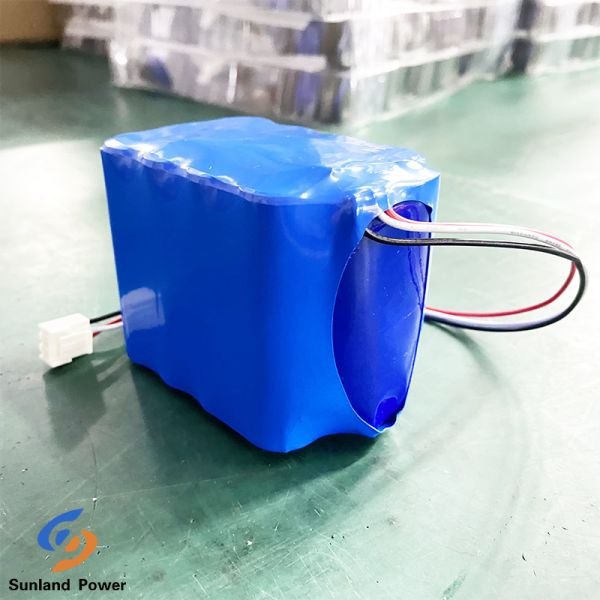

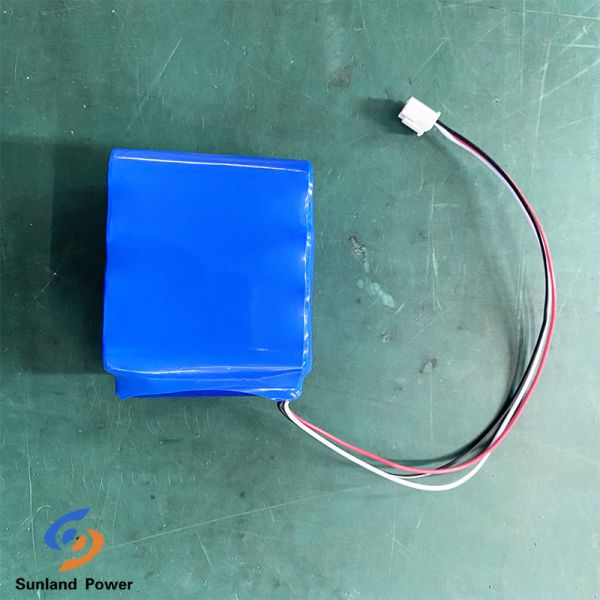

Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker
Specifications
Brand Name :
TAC/Sunland
Model Number :
ICM22-4-E2
Certification :
MSDS/REACH/ROHS/UN38.3/UL
Place of Origin :
GUANGZHOU
MOQ :
100PCS
Price :
US$26
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000PCS EACH WEEK
Delivery Time :
About 25 to 30 days
Packaging Details :
24pcs per carton
Material :
Rechargeable Lithium ion battery
Rated Capacity: :
4400mAh

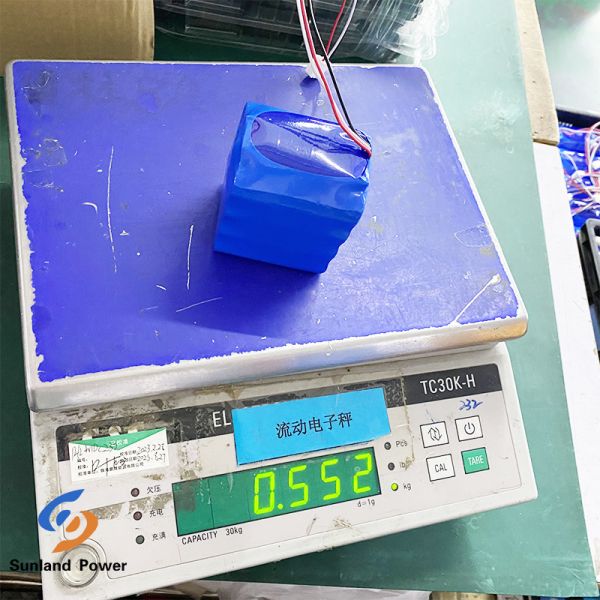

Net Weight： :
0.552KG
Voltage: :
22.2V
Part No. :
PLIC0867
Size :
84mm*58mm*70.5mm
Power :
97.68Wh
Application :
Speaker
Protection circuit :
YES
Connector :
Original JST VHR-3P
Description

Rechargeable 22.2V 4.4Ah Lithium ion battery ICR18650 6S2P Pass UL2054 certificate for Speaker

Feature:

1. Application for speaker

2. The cell and the PCM pass UL,with UL mark.

3. Original connector:JST VHR-2P

4. Packing:24pcs/cartons,14KG/Carton

5. With CE,ROHS,UL,MSDS,UN38.3

6. Warranty:1 year


Specification for 18650 Battery 22.2V 44AH 6S2P Lithium Ion Pack For Outdoor Speaker

No.

Item

General Parameter

Remark
1

Rated Capacity

 4.4Ah

Standard discharge(0.2C)after standard charge(0.2C)
2

Minimal Rated
Capacity

 4.2Ah
3

Nominal Voltage

 22.2V
4

Cycle Life

 Higher than 80% of the Initial Capacity of the Cells(

◆Charge: CC@0.2C to 25.2V, then CV till current to 0.02C
◆Rest: 30min.
◆Discharge: 0.2C to 18.0V
◆Temperature:20±5℃
◆Carry out 500cycles
5

Discharge cut-off voltage

 18.0V 18.0V(recommended)
6

Charging cut-off voltage

 25.2V 25.2V(recommended)
7

Cell and assembly method

 ICR18650-2200mAh 6S2P
8

Packing material

 PVC shrink
9

Standard charge

0.2C constant current(CC) charge to 25.2V,then constant voltage (CC)25.2V charge till charge current decline to ≤0.02C

Charge time : Approx 6h
10

Standard discharge

Constant current 0.2C
Cut-off voltage 18.0V
11

Maximum Charge Current

 4A
12

Maximum Discharge Current

 4A
13

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -10~50℃
14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.
at the shipment state

Less than 3 months:-5~35℃
15

Weight

 Approx/: 600g
16

Pack Dimension

 High/:70.5mm Max Size
Width/: 58.0mm
Length/: 84. 0mm


Rechargeable 22.2V 4.4Ah Lithium ion battery ICR18650 6S2P Pass UL2054 certificate for Speaker

Rechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For SpeakerRechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For SpeakerRechargeable 22.2V 4.4Ah Lithium Ion Battery ICR18650 6S2PUL2054 For Speaker

Rechargeable 22.2V 4.4Ah Lithium ion battery ICR18650 6S2P Pass UL2054 certificate for Speaker


Handling of battery

1. Prohibition short circuit

Never short circuit battery. It generates very high current which causes heating of the battery and may cause electrolyte leakage, gassing or explosion that is very dangerous.The poles may be easily short-circuited by putting them on conductive surface.

Such outer short circuit may lead to heat generation and damage of the battery.An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the battery pack.

2. Mechanical shock:

Falling, hitting, bending, etc. may cause degradation of battery characteristics.
