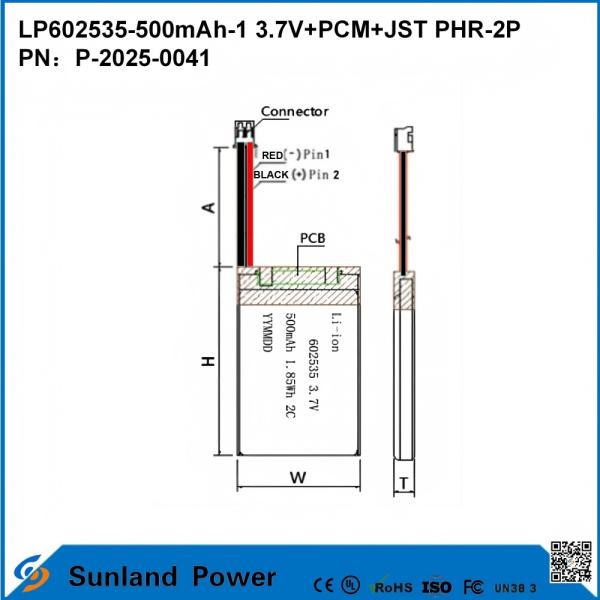

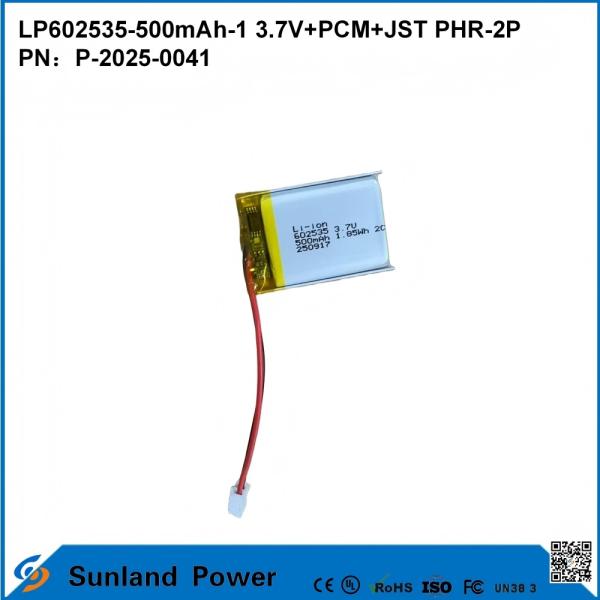

LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery
LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery
LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery
LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery
Specifications
Brand Name :
Sunland
Model Number :
P-2025-0041
Certification :
CE,SGS recognized,ISO9001 approved
Place of Origin :
GUANGZHOU CHINA
MOQ :
300
Delivery Time :
Negotiable
Packaging Details :
Carton with protective liner
Description

LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery

LP602535-500mAh-1 3.7V+PCM+JST PHR-2P batteryLP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery

Basic Performance

No.

Item

Specification

 Note
1

Rated Capacity

 500mAh

0.2C discharge
2 Nominal Capacity 520mAh

0.2C discharge
3

Min. Capacity

 500mAh

0.2C discharge
4 Cell Weight ≈ 9g
5 Cell Initial Impedance ≤ 100mΩ

3.7V AC 1KHz measured
6

Normal Voltage

 3.7 V
7

Initial Voltage

 ≥3.7V
8 Limited Charge Voltage 4.2 V Voltage of CC charge to CV charge
9 Standard Charging Method

0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
10

Cut-off Voltage

 2.75 V Load Voltage when discharge ended
11 Standard Charging 100mA (0.2C)

CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
12 Standard Charging Time 约 6hours
13 Rapid Charging Current 500mA (1C)
14 Rapid Charging Time 约2hours
15

Standard Discharging Current

 100mA (0.2C)

CC discharge to 2.75 V
16 Max. Discharging Current 1000mA (2C)
17

Operating Temperature Range

Charging:10～ 45℃

Discharging: -20 ～ 60℃
18

Operating humidity Range

 ≤ 90%RH
