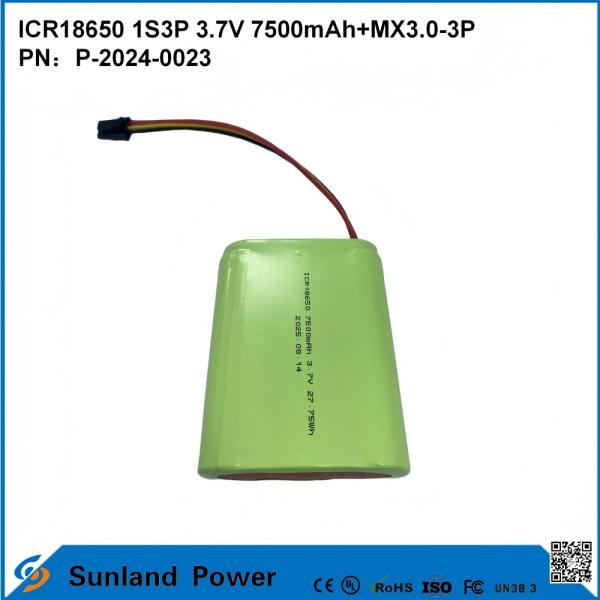

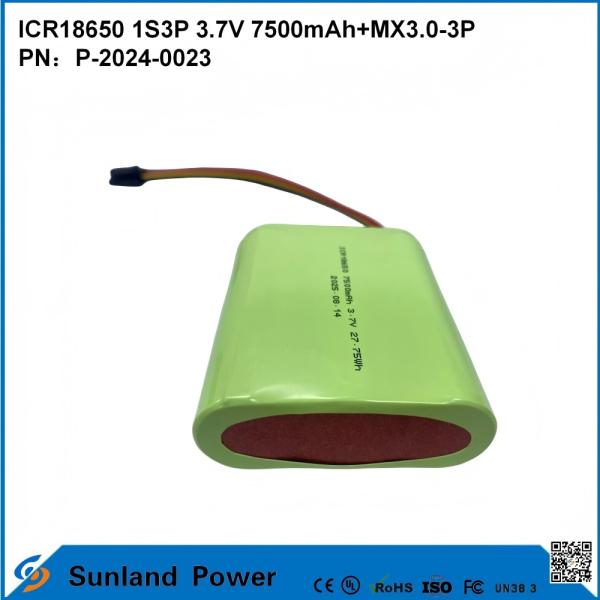

CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054
CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054
CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054
CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054
Specifications
Brand Name :
Sunland
Model Number :
P-2024-0023
Certification :
UN38.3 MSDS
Place of Origin :
GUANGZHOU CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
Negotiable
Packaging Details :
Carton with protective liner
Description

CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054

CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054CR18650 1S3P 3.7V 7500mAh+MX3.0-3P-UL2054

Product Model:ICR18650 7500mAh 3.7V 27.75Wh
Cell Mode:ICR18650-2500mAh 3.7V

Pack Battery specifications

No.

 Items Specifications Remark

1

Capacity for assembled cell discharging by 0.2C

≥ 7330mAh

Standard discharging method

2

 Battery Voltage

3.75-4.0V

Delivery voltage, Within 10 days from Factory

3

Standard charge condition

Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C

Charge voltage:4.2V±0.03V

Charge current:0.2C

4

 Standard discharging method

0.2C constant current discharge to 3.0V,

5

Operation temperature and relative humidity range

 0.2C Charge

0~ 15℃

60±25%R.H.

Charge at a very low temperature such as

blew 0℃,will be get a lower capacity and

reduce cycle life of the battery
0.5C Charge

15~45℃

60±25%R.H.
0.2C Discharge

-20~0℃

60±25%R.H.
1C Discharge

0~60℃

60±25%R.H.

6

Internal Impedance

Assemblage Impedance≤ 160 mΩ

Measure two sides of the drawing line after assembling.
