Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.
Specifications
Brand Name :
TAC
Model Number :
CR123A USB
Place of Origin :
CHINA
MOQ :
Allow negotiable
Price :
Allow negotiable
Supply Ability :
Allow negotiable
Delivery Time :
Allow negotiable
Packaging Details :
Allow negotiable
Description

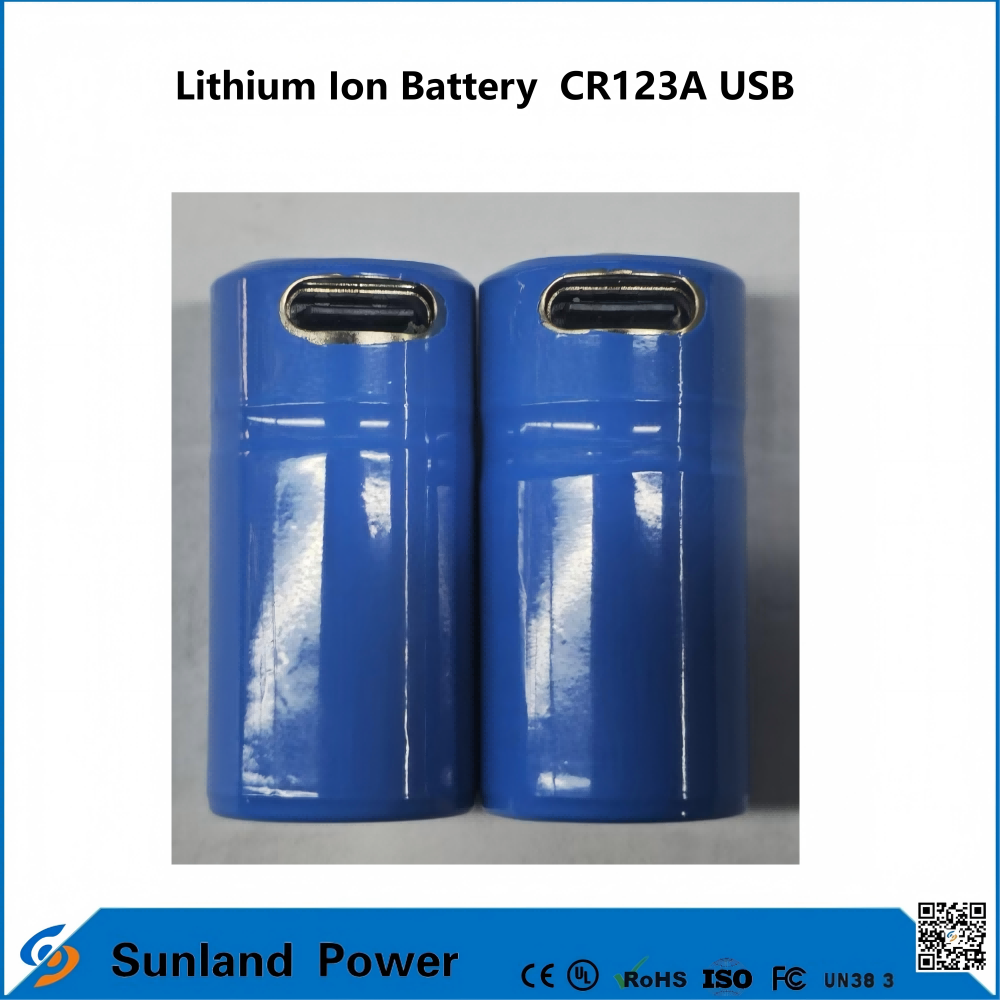

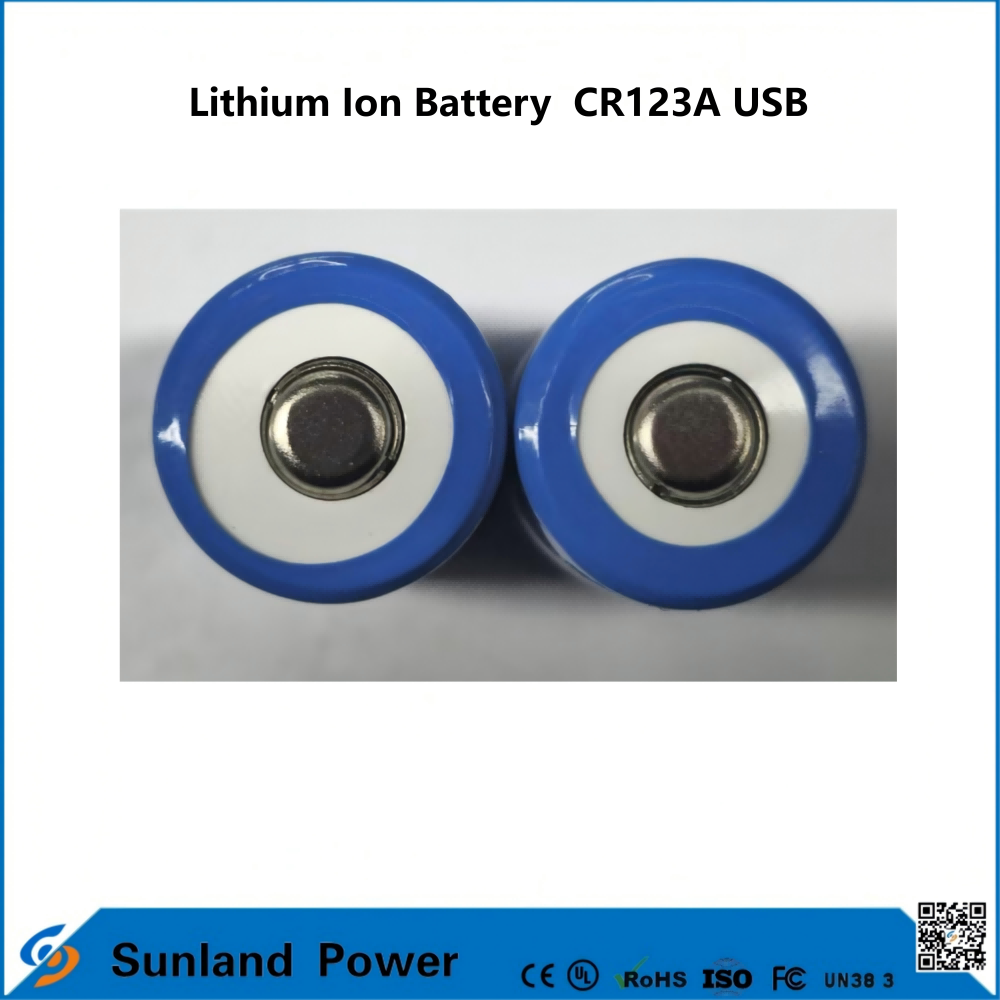

Lithium Ion Battery CR123A USB

Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.Lithium Ion Battery CR123A USB applicable to the production of USB rechargeable lithium-ion batteries.

This specification sheet is applicable to the production of USB rechargeable lithium-ion batteries.

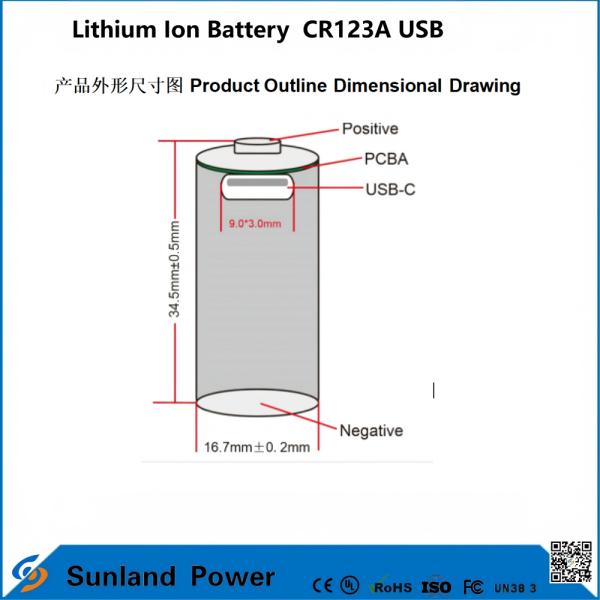

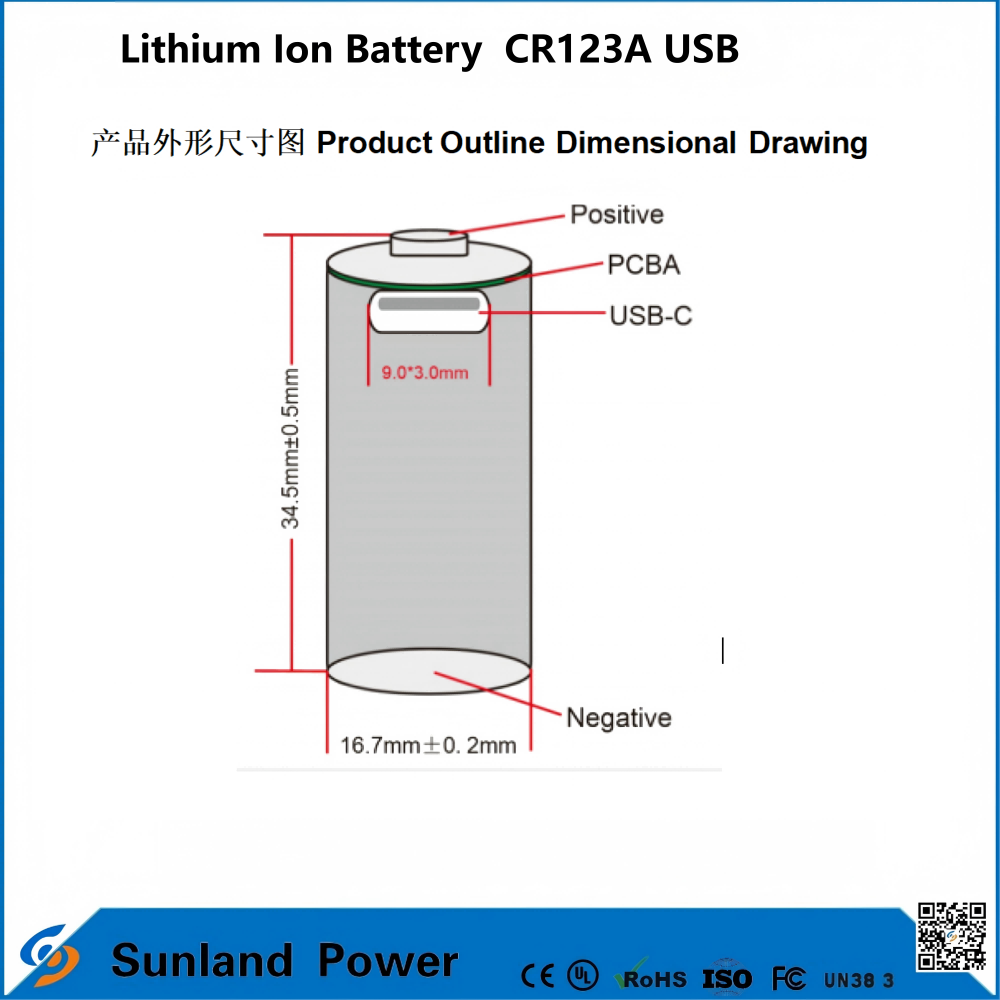

Product Basic dimensions:

项目Item 单位Unit

参数

Parameter

充电接口配置

Charging interface configuration

直径

Diameter (D)

mm

16.7±0.2

USB

高度

Height (H)

mm

34.5±0.5

产品规格 Specification:

No. 项目 Items 规格 Specifications 备注 Remark
3.1.1 组合方式 Pack method 电芯种类cells type Li-ion 16280
标称电压 nominal voltage 3.7V
3.1.2 容量 Capacity 标称容量 nominal capacity 850mAh 0.2C 放电0.2C Discharge
最小容量 minimum capacity 800mAh 0.2C放电0.2C Discharge
3.1.3 尺寸Size 直径 Diameter 16.7±0.2mm 标准值
高度 Height 34.5±0.5mm
3.1.4 内阻 Internal resistance ≤200 mΩ

AC 1kHz 条件下

At AC 1kHz
3.1.5 重量 Weight 约 About 20g
3.1.6 充电指示灯 LED indication 充电红灯,充满转绿. The LED show red when charging, the LED turn green when fully charged.
3.1.7

电芯充电Cell charge

 充电方式 Charge mode CC-CV 恒流恒压
最高充电电压 Highest voltage 4.25V±0.03V 0℃~ +45℃

标 准 充 电 电 流

Standard charging current

 170mA 0℃~ +45℃

快速充电电流

speediness charging current

 850mA 0℃~ +45℃
3.1.8

USB-C 充电

USB-C charge

 充电方式charge mode CC-CV 恒流恒压
输入电压 input voltage 5.0 ±0.25 0℃~ +45℃

标 准 充 电 电 流

standard charging current

500mA±50mA

充电截止电流

End of Charging Current:

45 ± 15mA
3.1.9

放电 discharge

放电截止电压

discharge cutoff voltage

 2.5V 0.2C放电0.2C Discharge

标准放电电流

standard discharge current

 170mA -10℃~ +60℃

快速放电电流

speediness discharge current

 850mA -10℃~ +60℃

最大放电电流

maximum discharge current

 5000mA 终 止 电 压 2.5V Limited Voltage 2.5V

3.1.10

储存环境Storage

environment

 ≤1个月 one month -20~ 45℃

长期贮存的贮存电压为

3.7V～3.9V

The voltage for a long time

storage shall be 3.7V～3.9V

range.
≤3个月 three months 0℃~ +30℃
≤12 个月 a year 20±5 ℃
