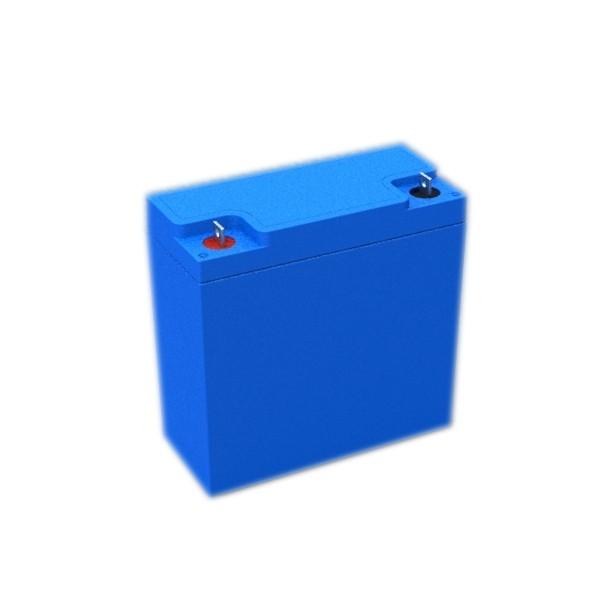

18650 12V LiFePO4 Battery Pack With housing for Solar Lighting
18650 12V LiFePO4 Battery Pack With housing for Solar Lighting
18650 12V LiFePO4 Battery Pack With housing for Solar Lighting
18650 12V LiFePO4 Battery Pack With housing for Solar Lighting
Specifications
Brand Name :
TAC OEM ODM
Model Number :
IFM12.8V-22AH-E2C
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
usd 5-10
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 units/month
Delivery Time :
7-25 days after order confirm
Packaging Details :
1pcs for one bag with UN38.3
material :
LiFePO4
voltage :
12 v
pack capacity :
22.5ah （4S15P）
single cell :
IFR18650 3.2V 1500MAH
Circle life :
2000 times for 100% DOD
Warranty :
1 year
bms :
inside
housing :
abs + plastic
Description

18650 12V LiFePO4 Battery Pack With housing for Solar Lighting

Feature for 18650 12V LiFePO4 Battery Pack With housing for Solar Lighting

1. Lighter weight, with the best power-to-weight ratio

2. High charging & storage efficiency

3. No memory effects

4. Longer life, more than 2000 cycles
5. Low self-discharge rate, less than 3% monthly
6. Environment friendly, Non-toxic, non-contaminating and no rare metal

Specification:

No.

Item

General Parameter

Remark

1

Rated Capacity

22.5Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

21Ah

3

Nominal Voltage

12.8V

4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 10.0V

◆Temperature:20±5℃

◆Carry out 2000cycles

5

Discharge cut-off voltage

10.0V

10.0V( recommended)

6

Charging cut-off voltage

14.8V

14.6V (recommended)

7

Cell and assembly method

IFR18650EC 1.5AH

4S15P

8

Housing material

ABS+PC housing

Circle Life Test Method and Standard

9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

10

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V

11

Maximum Charge Current

1C

(0.2C Recommended)

12

Continuous Discharge Current

1C

Peack Discharge Current

5C

13

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Discharge: -10~60℃

14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

15

Weight

Approx:3Kg

16

Max.Dimension

Height:132mm

132*77*140mm

Width: 77mm

Length: 140mm

Application For 18650 12V LiFePO4 Battery Pack With housing for Solar Lighting

Solar Production

Home wall

Street lighting

18650 12V LiFePO4 Battery Pack With housing for Solar Lighting

Export Packing Describe

18650 12V LiFePO4 Battery Pack With housing for Solar Lighting

Similar Production Picture

18650 12V LiFePO4 Battery Pack With housing for Solar Lighting
