Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope
Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope
Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope
Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope
Specifications
Brand Name :
TAC
Model Number :
ER14500
Certification :
REACH MSDS
Place of Origin :
Shenzhen zhuhai
MOQ :
100 pcs
Price :
usd 1-3
Payment Terms :
T/T, LC, Pay pal etc.
Supply Ability :
100,000PCS/Day
Delivery Time :
7-25 days after order confirm
Packaging Details :
20 pcs each pallet / 1 pack for one box
material :
Primary Li-On Battery
capacity :
2400mah
voltage :
3.6v
primary :
non rechargeable
pvc :
blue
assemble :
workable
long life :
10 years
warranty :
1 year
model :
ER14500 2400MAH 3.6V
SIZE :
14*50MM
Description

Low passivation3.6V Rechargeable Li-On Battery Wide Temperature for Laryngoscope

Description:

1. High energy density primary battery

2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load,the end voltage is 2.0V or 2.5V.

3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,the capacity output is still more than 90%.

4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃

5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than 10years under room temperature.

Specification:

No

Item

Data

1

Nominal voltage:

3.6V

2

Nominal capacity:

2400mAh(1.0mA / 2.0V)

3

Discharge end-voltage:

2.0V

4

Operating voltage :

3.4V(330Ω, in 5s)

5

Max constant discharge current:

100mA

6

Max. pulse current:

200mA

7

Ambient temperature range:

-55~ +85℃

8

Storage life:

≥10 year, Yearly self-discharge ≤ 1%

Size for single cell:

Max dimension : φ10.5mm× H14.5 mm

If you have bought ER battery from other supplier, pls take close attention to max size

in order to avoid the size over your space limit

Application:

*Intelligent water meter, Ammeter, Gas Meter

*Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources

*Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone

*Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.

Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope

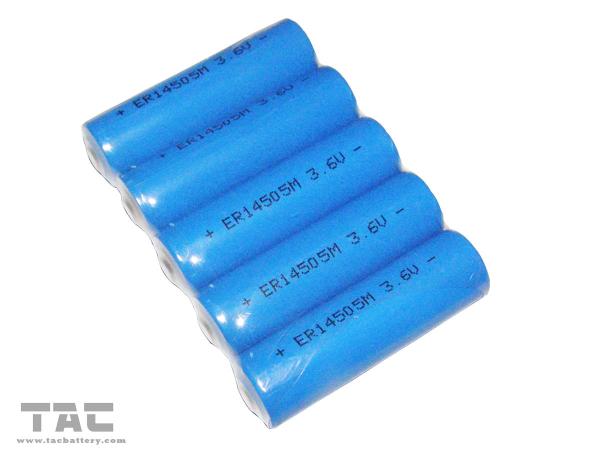

Battery Photos

Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope

Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope

Similar Model Production List

We can support various size for single cell to meet customer design require

Low passivation 3.6V Primary Li-On Battery Wide Temperature for Laryngoscope

Tag:Low passivation,Wide Temperature
