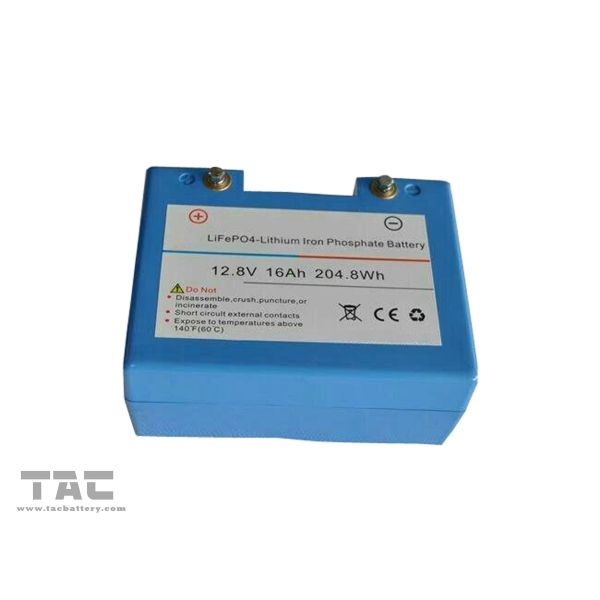

LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
Specifications
Brand Name :
TAC OEM ODM
Model Number :
12.8V16Ah 208.4Wh
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
usd 50-80
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 units/month Contact Now
Delivery Time :
7-25 days after order confirm
Packaging Details :
1pcs for one bag with UN38.3
Model Number: :
PIFC0235
Nominal Voltage: :
12.8V
Rated Capacity: :
16AH
Type: :
Lithium Battery
Size: :
L128*W75*H168mm
Weight: :
2.25Kg
Certification: :
CE/ROSH/UL/MSDS/UN38.3
OEM & ODM: :
Support
Description

LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

Features For LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

1.LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery

2. Solar System, Wind System and Other ESS used Lithium ion Battery Pack

3. Large energy density

4. Long cycle life 2000 times ,and low self discharge

5. No pollution,eco-friendly ,all raw material passed Reach

6. Improved safety with BMS

7. Good high-temperature performance meet specially require

8. MOQ: 50set

Quick Detail for LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

Model Number: 12.8V16Ah Brand Name: TAC-PIF0002
Nominal Voltage: 12.8V Rated Capacity: 16AH
Type: Lithium Battery Size: L128*W75*H168mm
Weight: 2.25Kg Certification: CE/ROSH/UL/MSDS/UN38.3
OEM & ODM: Support Warranty: 12months

Packaging & Delivery

Packaging Details: standard package for lithium ion battery packs
Delivery Detail: shipped in 5 days after payment

LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley

LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery Specification:

No.

 Item General Parameter

Remark
1 Rated Capacity 16.0Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)
2

Minimal Rated

Capacity

 16.0Ah
3 Nominal Voltage 12.8V
4

Cycle Life

 Higher than 60% of the Initial Capacity of the Cells

Charge: CC @0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5°C

Carry out 2000cycles
5 Discharge cut-off voltage 9.2V

10.0V( recommended)

10.0V
6 Charging cut-off voltage 14.8V

14.6V (recommended)
7 Cell and assembly method IFR26650EC-3.3AH 4S5P
8 Housing material ABS+PC
9 size:

L168*W75*H128mm

Discharge and Charge Performance

No.

Item

General Parameter

Remark
9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h
10

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V
11

Maximum Charge Current

 7A
12

Continuous Discharge Current

 7A
13

Operation Temperature Range

 Charge: 0~45℃

60±25%R.H.
Discharge: -10~60℃
14

Storage Temperature Range

Less than 1 year : 0~25℃

0~25℃)

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

-5~35℃)
15

Weight

 Approx/: 1.80Kg
16

Max. Dimension

 thickness/:33mm

Width/: 133mm
Length/: 272mm

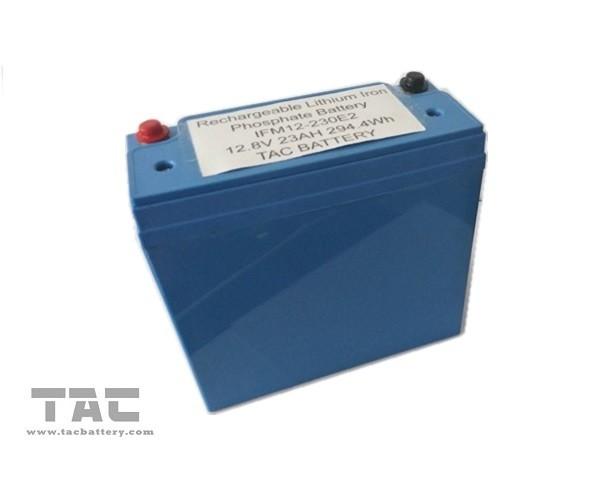

Similar Battery Pack Picture

LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley

We have similar model 12.8V 15AH for Solar Lighting

LiFePO4 Battery 12.8V 16Ah Lithium Ion Battery For Golf Trolley
