LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
Specifications
Brand Name :
TAC OEM ODM
Model Number :
IFM12.8V 18Ah
Certification :
MSDS REACH ROHS
Place of Origin :
SHENZHEN
MOQ :
50 PCS
Price :
usd 10
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000units/days
Delivery Time :
7-25 days after order confirm
Packaging Details :
1pcs for one bag with UN38.3
Brand Name: :
TAC-PIFP0753
Model Number: :
12.8V18Ah
Nominal Voltage: :
12.8V
Rated Capacity: :
18AH
Type: :
LiFePO4 Lithium Battery
Size: :
T33:W159:H272mm
Weight: :
2.1KG
OEM & ODM: :
Support
Description

LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting

Quick Detail:

Model Number: 12.8V18Ah Brand Name: TAC-PIFP0753
Nominal Voltage: 12.8V Rated Capacity: 18AH
Type: LiFePO4 Lithium Battery Size: T33:W159:H272mm
Weight: 2.1KG Certification CE, UN, ROHS, MSDS REACH Compliance
OEM & ODM: Support Warranty: 12Months


LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting Specification:

No. Items Specifications

Remark
1

Nominal Capacity

 3000mAh

0.2C Standard discharge
0.2C
2

Minimum Capacity

 2940mAh
3

Nominal Voltage

 3.2V

Mean Operation Voltage
4

Delivery voltage

 3.2~3.3V

Within 10 days from Factory
5

Charge Voltage

 3.65V±0.03V

By standard charge method
7

Charge current

 0.2C 600mA

Standard charge, charge time about 6h(Ref)
0.5C 1500mA

Rapid Charge, charge time about: 3h(Ref)
9

Cell Internal Impedance

 ≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge


IFR26650 4S6P 12.8V 18AH LiFePO4 Battery 12V Lithium Battery Pack Specification:

No Item Parameter
1 Nominal Voltage 12.8V
2 Rated Capacity 18AH
3 Max.constant discharge current 13.5A
4 Charging Mode CC/CV
5 Charging Current 3-6A
6 Working Voltage Range 10-14.6V
7 Over charging Protection Voltage 15.6V
8 Over discharging Protection Voltage 10V
9 Communication Nope
10 Others Nope
11 Life Cycles

≥1500 times
capacity≥nominal capacity*80%
12 Working Temp.(CC/CV) Working 0℃~65℃
13 Storage -20℃~45℃
14 Dimension T 33mm
W 159mm
H 272mm
15 Weight 2.1kg
16

Cables/
Connectors

Cables OEM
General Water-proof Connectors
(As follows)

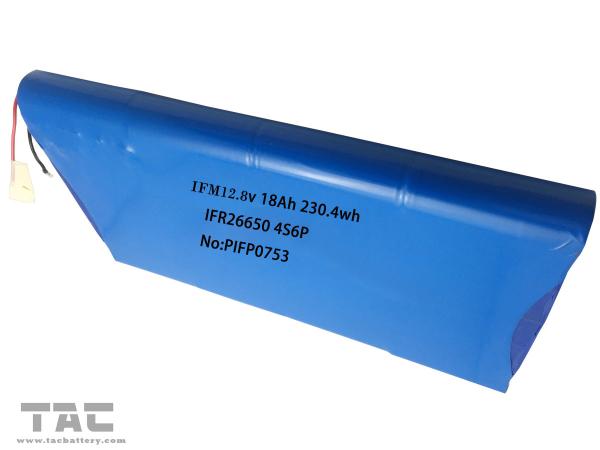

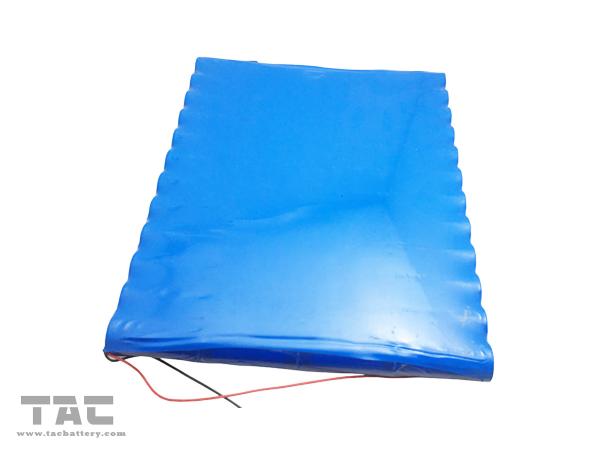

Picture for LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting

LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting



Product Advantages

  1. Long standby time
  2. One year warranty
  3. Excellent safety performance
  4. Excellent storage performance and low self-discharge rate
  5. Short circuit testing passed
  6. Overcharge testing passed


Application

  1. Small medical equipment and portable equipment
  2. Remote control cars, boat, aircraft, toys
  3. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
  4. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
  5. E-tool: electric drill, electric saw, lawn mower and so on
  6. Solar and wind power generation energy storage devices, Telecom base Station

Transportation Packing Photo

The battery were wrapped by double level sponge bag, one set for one inner box, and 8-10 box for one standard paper carton

LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting
