High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply
Specifications
Place of Origin :
Shenzhen zhuhai
Brand Name :
TAC OEM ODM
Certification :
MSDS REACH ROHS
Model Number :
PIFC0036
MOQ :
200PCS
Price :
usd 1.0
Packaging Details :
Follow UN38.3 Rule
Delivery Time :
7 days for single cell 15-20 days for battery pack
Payment Terms :
TT, LC, Paypal, etc
Supply Ability :
50000 pack for one week
Nominal voltage :
3.2V
Charge current :
1C
Charging time :
Standard charge: 2.0 hours Ref
capacity :
3300mah
circle life :
500 times
pvc :
blue
assemble :
workable
wire :
with customized
Description

High Rate Discharge 26650 3.2v Lifepo4 Battery Cell 3300mah For Power Supply

Quick Detail:

  1. High Capacity: 3300mAh
  2. Max. continue discharge current: 10A
  3. Have a long cycle life about 2000 times

Specification for High Rate Discharge 26650 3.2v Lifepo4 Battery Cell 3300mah For Power Supply

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

3300mAh @ 0.2C Discharge

4

Nominal capacity

3350mAh @ 0.2C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

2C

9

Max. continue discharge current

10A (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging: -10°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

80.0g±1.0g

14

Cell Dimension

Length: 65.0±0.3 mm

Width: 26.2±0.2 mm

Pictures:

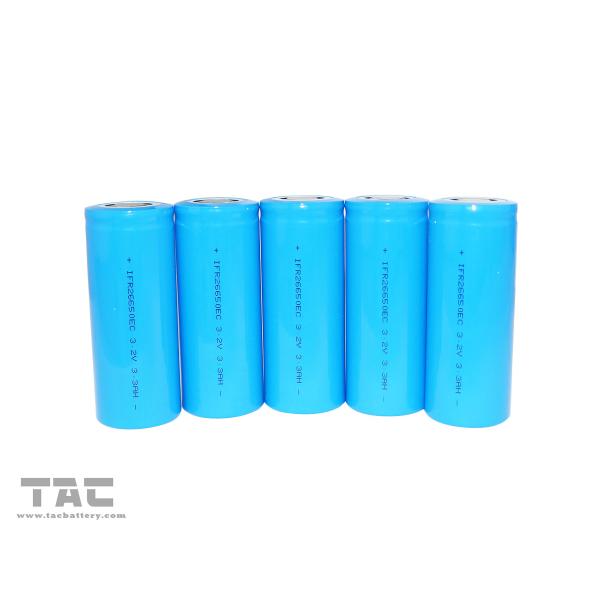

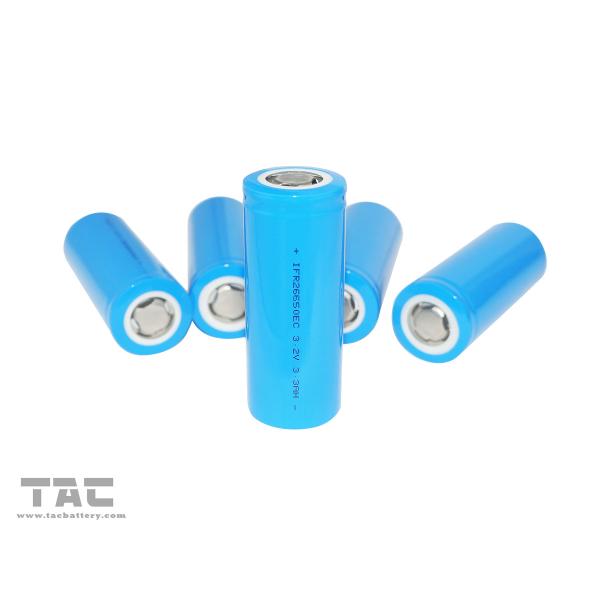

High Capacity 26650 3.2V LiFePO4 Battery cell 3300mAh for Power Supply

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

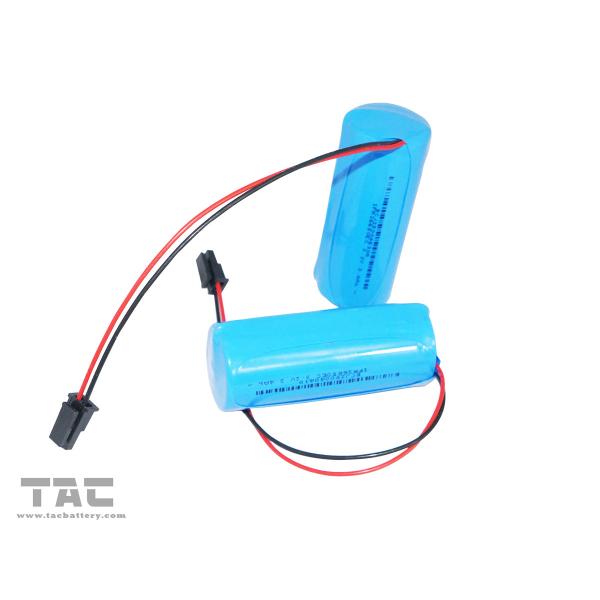

We can add the wire and the connector on the battery if you like

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

Application:

High Capacity 26650 3.2V LiFePO4 Battery cell 3300mAh for Power Supply, Flashlight and LED light

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

Packing Detail

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

More Model for Lifepo4 Battery

Models Dimension Description
IFR18650EC Φ18 x 65mm 3.2V 1500mAh
IFR26650EC Φ26 x 65mm 3.2V 3300mAh
IFR26650JE Φ26 x 65mm 3.2V 3000mAh
IFR18500JE Φ18 x 50mm 3.2V 1000mAh
IFR14500JE Φ14 x 50mm 3.2V 600mAh
IFR18650PC - 45C Φ18 x 65mm 3.2V 1100mAh
IFR26650PC - 30C Φ26 x 65mm 3.2V 2300mAh
IFR26650PE - 0.2C Φ26 x 67mm 3.2V 3000mAh
IFR26650PE - 0.2C Φ26 x 67mm 3.2V 3400mAh
