Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
Specifications
Place of Origin :
Shenzhen zhuhai
Brand Name :
TAC OEM ODM
Certification :
MSDS REACH ROHS
Model Number :
PIFP0048
MOQ :
200PCS
Price :
usd 10-15 each pcs
Packaging Details :
Follow UN38.3 Rule
Delivery Time :
7 days for single cell 15-20 days for battery pack
Payment Terms :
TT, LC, Paypal, etc
Supply Ability :
50000 pack for one week
type :
3.2V LiFePO4 Battery
size :
26650
rechargeable :
yes
voltage :
3.2V
Capacity :
2350mAh
long life :
2000times
warranty :
12 months
application :
Back Up Power
Description

Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power

Quick Detail for Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power

  1. The battery pack Welding the tabs on both of two pole ,and thickness of the tabs is 0.5mm
  2. The battery pack can assembling with M3 screw
  3. Lifepo4 battery 26650 3.2v 2300mah without pcb
  4. the tab can replace with wire and connector

Specification for Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

2300mAh @ 1C Discharge

4

Nominal capacity

2350mAh @ 1C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

5C

9

Max. continue discharge current

20C (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging: -10°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

78.0g±1.0g

14

Cell Dimension

Length: 65.0±0.3 mm

Width: 26.2±0.2 mm

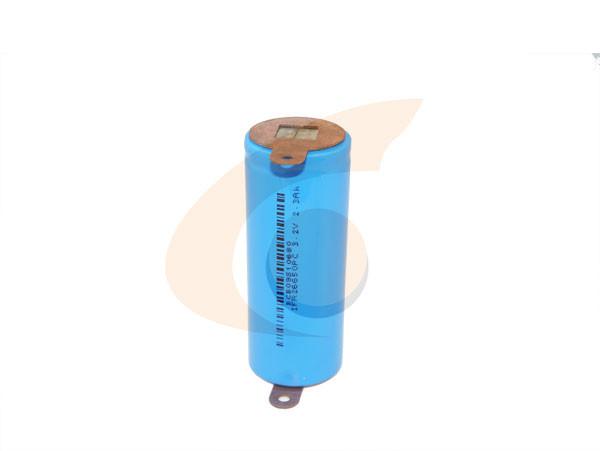

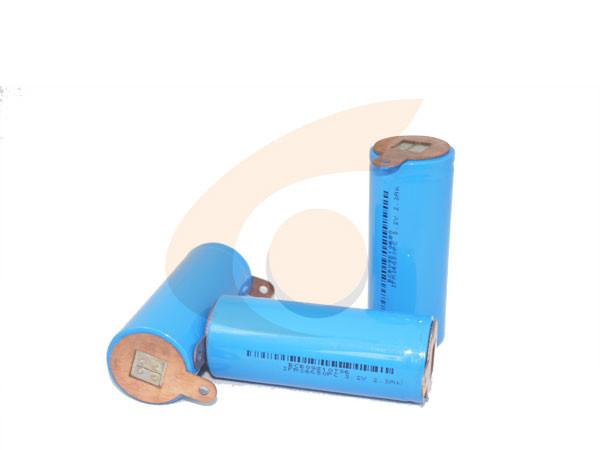

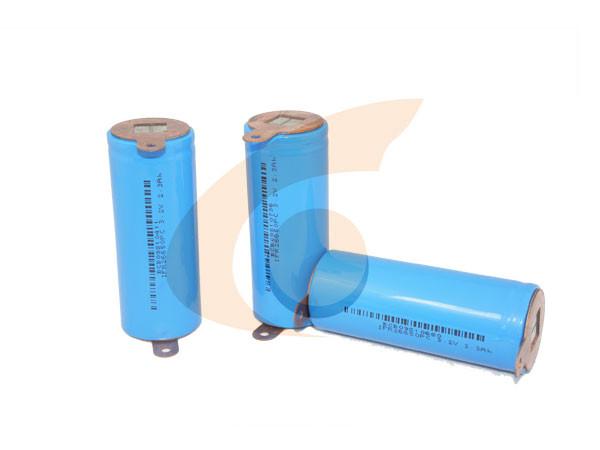

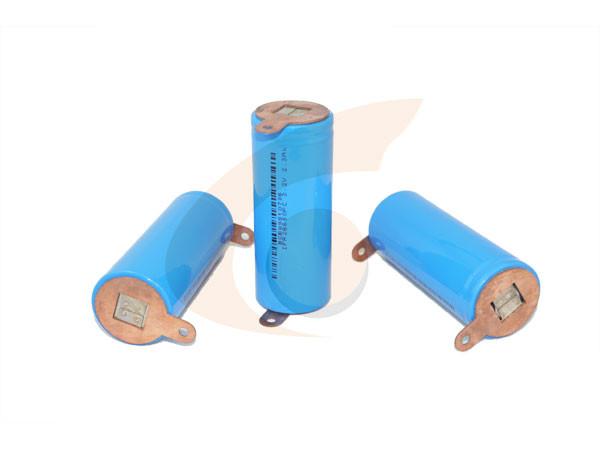

Pictures for Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

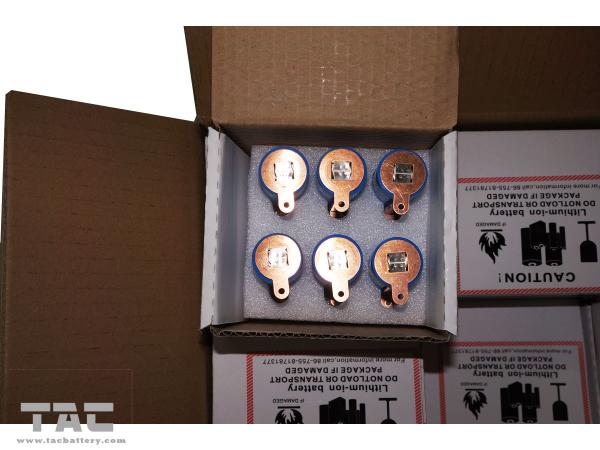

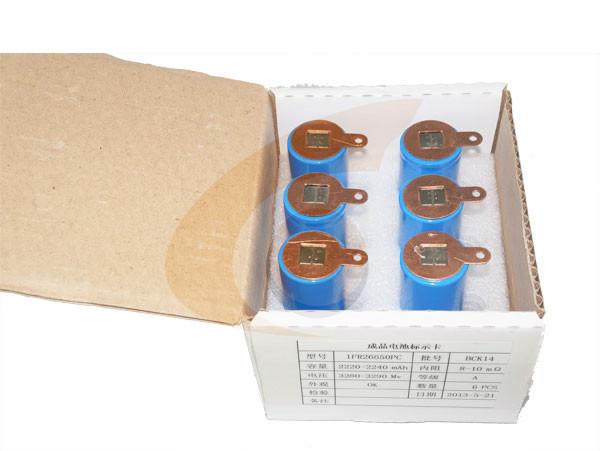

Packing Detail:

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Certification

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

TAC BATTERY issue more solution for 12V IFR26650 Battery Pack

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

Tag: LiFePO4 Battery; IFR26650 Battery; 3.2V 26650 3300mAh
