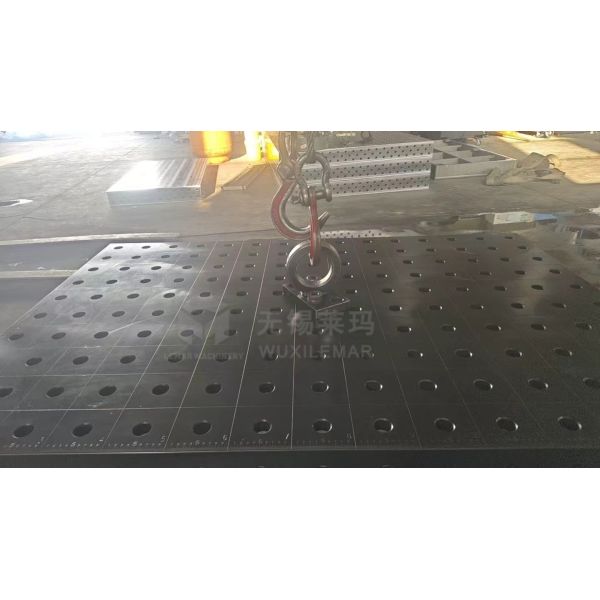

D16 1500x1000mm Table for Precision Bicycle Part Fabrication

The D16 1500x1000mm table is designed for the welding, assembly, positioning, inspection, and small-batch manufacturing of precision bicycle parts (frames, forks, seatposts, bottom brackets, disc brake mounts, etc.). Its core features include a 16mm positioning hole system, five-sided precision machining, and a high-rigidity structure, enabling rapid clamping, repeatable positioning, and high-precision welding and forming.

Core functions

• Precision Positioning and Clamping: Quickly secures frame tubes (head tube, bottom bracket, seat tube, rear stays, front fork, etc.), ensuring coaxiality, symmetry, and angular accuracy.
• Welding Deformation Control: High-rigidity table + multi-point positioning to suppress welding thermal deformation, reducing correction and scrap rates.
• Flexible Changeover: 50mm hole pattern + universal fixtures allow for tooling changeover of different frame models/components within 10 minutes.
• 3D Spatial Welding: 5-sided machining + extended tooling enables three-dimensional positioning and welding of complex components (such as disc brake mounts, derailleur hangers, and e-bike battery brackets).
• Inspection and Rework: Serves as a reference platform for frame dimension inspection, post-weld correction, and rework positioning.

Typical application scenarios

• Road/mountain bike frame welding (aluminum alloy/carbon fiber/titanium alloy/steel frames)
• Welding of core components such as front forks, head tubes, bottom brackets, and seat posts
• Welding of precision accessories such as disc brake mounts, derailleur mounts, and pedal axle mounts
• Small-batch custom frame production (rapid changeover, reduced tooling costs)
• Frame size inspection and repair (reference platform to ensure consistency)
• Welding of electric bicycle battery brackets/motor mounts (high-precision positioning)

We promise

Lifetime Accuracy Guarantee: The D16 1500×1000mm Table for Precision Bicycle Part Fabrication guarantees that the table surface flatness and D16 hole position accuracy will meet factory standards for life. In case of accuracy deviations under normal use, we provide free professional on-site calibration services and corresponding calibration parts, with no additional costs.

Global After-Sales Service Guarantee: The D16 1500×1000mm Table for Precision Bicycle Part Fabrication comes with a 1-year free warranty worldwide. During the warranty period, non-human damaged parts will be replaced free of charge, and shipping costs will be covered. 7×24 multi-language (English/Spanish/Polish/French) technical support is available, providing one-on-one remote guidance for installation, debugging, daily maintenance, and troubleshooting.

Process Compliance Guarantee: The D16 1500×1000mm Table for Precision Bicycle Part Fabrication's entire production process complies with ISO 9001 quality system standards. The product is CE certified, and the table accuracy and compatibility fully meet the EU EN 14764/14766/15194 bicycle industry standards. There are no certification barriers for export, and a complete set of customs clearance certification documents can be provided.
