Specifications
Brand Name :
LEMAR
Model Number :
D16
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,T/T,Western Union,D/A,D/P
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Surface treatment :
Fine grinding + nitriding hardening treatment
Flatness :
0.05–0.1 mm/m
Positioning accuracy :
±0.05 mm
Load capacity :
Tabletop 2T, frame 5T
Workbench structure :
Five-sided machining, three-dimensional positioning
Can be spliced :
Supports unlimited splicing of multiple units
Delivery period :
Standard sizes: 15-25 days; Custom sizes: 15-30 days
Hole diameter specifications :
D16（φ16 mm）
Applicable processes :
Welding, assembly, inspection, tooling and fixtures
Description

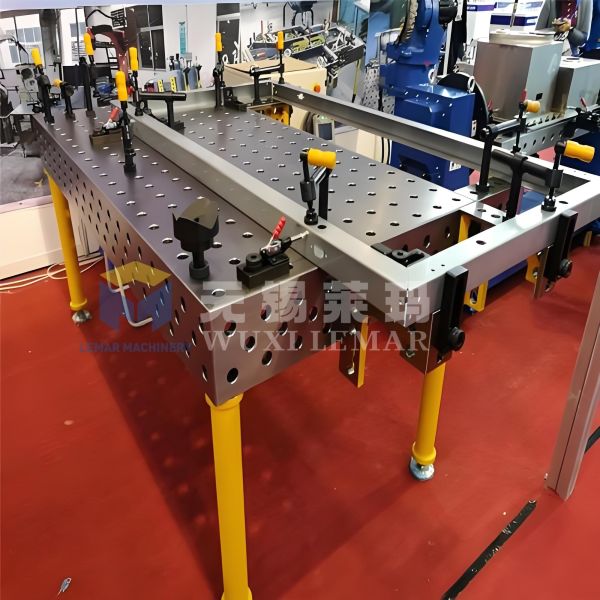

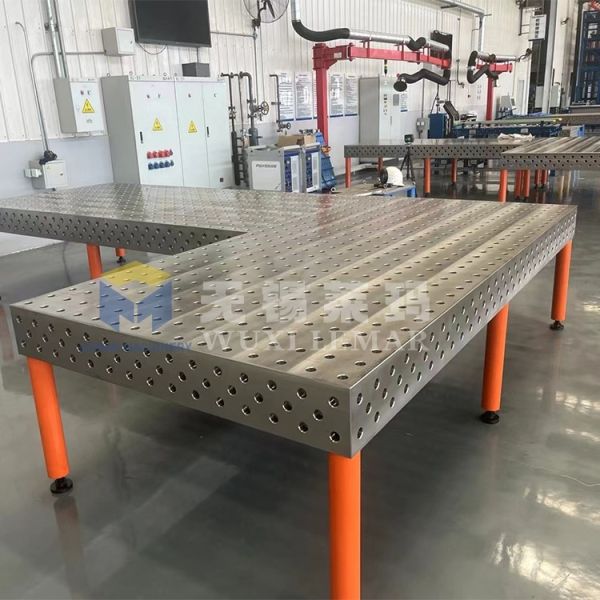

High Strength D16 3D Welding Table for Workshop Use
The High Strength D16 3D Welding Table is a modular, high-precision, and flexible tooling platform designed specifically for workshop welding, assembly, and inspection. Featuring a D16 standard hole system and three-dimensional positioning clamping, this table is ideal for precision welding of small and medium-sized parts and rapid changeover operations.
Technical Specifications
Specification Details
Hole Diameter φ16.065-16.149mm (precise tolerances ensure consistent positioning)
Hole Spacing 50×50mm (dense grid offers greater flexibility than 100×100mm D28)
Flatness ≤0.05-0.1 mm/m (high precision reference)
Verticality ≤0.1/200mm
Surface Treatment Nitriding treatment (HV450-630)
Roughness Ra1.6 (precision machined surface)
Mainstream Materials HT300; Q355
Standard Load Capacity Worktable: 2 tons, Frame: 5 tons
High Strength 3D Welding Table for Workshop welding platform Five sided High Strength 3D Welding Table for Workshop welding platform Five sided
Materials and Craftsmanship
  • Main body constructed from high-strength cast iron HT300 or Q355 steel plate with exceptional rigidity and resistance to welding deformation
  • Tabletop undergoes stress-relief annealing treatment to prevent deformation or warping during long-term use
  • Surface features nitriding/quenching treatment for high hardness, wear resistance, prevention of weld slag adhesion, corrosion resistance, and extended lifespan
  • Tabletop precision ground on five sides ensuring high flatness and enabling three-dimensional clamping
Core Advantages
  • High Precision: Repeat positioning accuracy ±0.05 mm, welding form and position tolerance controllable within ±0.1 mm
  • High Flexibility: One platform adaptable to almost all welded parts including sheet metal, steel structures, pipe fittings, and profiles
  • High Efficiency: Clamping time reduced from hours to minutes, increasing production efficiency by 3-5 times
  • Low Cost: Replaces specialized fixtures, reducing tooling investment by 70%+ and lowering inventory and management costs
  • Long Lifespan: High-strength materials with surface hardening maintain accuracy for over 10 years under normal use
Applicable Scenarios and Industries
Applicable Workpieces: Small to medium-sized precision parts, sheet metal structures, racks, cabinets, automotive parts, construction machinery parts, metal furniture, pipe flanges
Applicable Processes: MIG/MAG/TIG/manual arc welding, cutting, assembly, inspection, tooling verification, robotic welding workstations
Applicable Industries: Machinery manufacturing, sheet metal processing, construction machinery, automotive and parts, rail transportation, shipbuilding, aerospace, steel structures, chassis and cabinets, metal furniture, laboratory tooling
Company Advantages
  • Professional Expertise: Years of dedicated R&D and production of 3D flexible welding platforms, welding fixtures, and jigs
  • Specialized Focus: Concentrated expertise in welding fixtures ensures professional, stable solutions that understand industry needs
  • Comprehensive Product Range: Full D16/D22/D28 series coverage to meet diverse customer requirements
  • Export Quality: Long-term international export experience meeting global market quality standards
  • Professional Support: Efficient communication, rapid response, stable delivery, complete packaging and documentation
  • Comprehensive After-Sales: Installation guidance, usage videos, and technical support
