Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Specifications
Brand Name :
LEMAR
Model Number :
D28
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Hole Pitch :
100 mm ± 0.02 mm
Repeat Positioning Accuracy :
± 0.02 mm
Table Flatness :
≤ 0.05–0.1 mm/m
Perpendicularity :
≤ 0.05 mm/1000 mm
Hole diameter :
φ28.065–φ28.149mm
Framework support :
5 tons
Surface hardness :
Nitriding treatment HV450–HV630
Tensile strength :
≥600MPa
Standard dimensions (length × width) :
1000×1000mm, 1500×1000mm, 2000×1000mm, 2000×1500mm, 2000×3000mm, 2000×4000mm (customizable)
Description
Innovative D28 3D Welding Table with Advanced Positioning Technology
The Innovative D28 3D Welding Table with Advanced Positioning Technology is a high-precision, flexible, and intelligent welding fixture system designed for modern precision manufacturing. This system achieves micron-level precise positioning, rapid clamping, and adaptive compensation of workpieces in three-dimensional space, significantly improving welding accuracy, efficiency, and consistency.
Technical Specifications
Positioning Accuracy ±0.02-0.05mm
Repeatability ±0.01mm
Flatness 0.05mm/1000mm
Hole Spacing Accuracy 100±0.03mm
Load-bearing Capacity 500-5000 kg (depending on specifications)
Surface Roughness Ra≤3.2μm
Material High-strength cast iron (HT300) / High-rigidity steel
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Advanced Positioning Technology
3D Coordinate Positioning System
  • Based on CNC/servo drive technology, achieves micron-level precise movement and rotation along X/Y/Z axes
  • Supports workpiece positioning at any angle and orientation
  • Integrates linear encoder/grating ruler for real-time position feedback and closed-loop control
  • Positioning error ≤ ±0.02mm
Intelligent Sensing and Vision Positioning
  • Equipped with machine vision, laser displacement sensors, and temperature sensors
  • Scans workpiece contour in real-time and monitors weld position and thermal deformation
  • Automatically corrects, compensates, and adjusts fixture/workpiece position
  • Achieves dynamic adaptive positioning to resolve dimensional deviations from welding thermal deformation

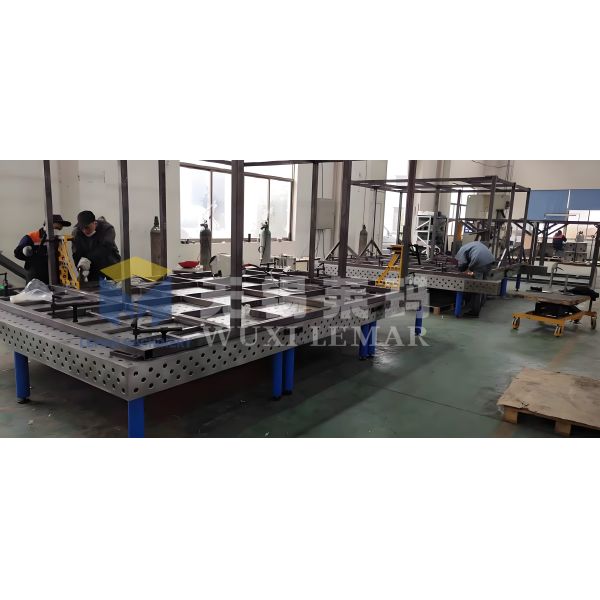

Modular Flexible Fixtures
  • Standardized positioning blocks, clamps, support columns, angle rulers, and quick clamps
  • Freely combinable and quickly assembled/disassembled on platform's hole system
  • Complete new workpiece clamping solutions within minutes
  • Supports pneumatic/hydraulic/electric automatic clamping for automated production lines
Structure and Load Capacity
The welding table features an integral frame/box structure for exceptional stability. Load capacity ranges from 500kg to 5000kg+ with customization options available. Optional accessories include feet, casters, and adjustable bases to suit various production environments.
Durability and Maintenance
The D28 3D Welding Table features a high-strength main body made of stress-relief materials, making it resistant to deformation and cracking even after long-term use. The tabletop is specially treated for wear resistance, high temperature resistance, and resistance to welding slag, making it scratch and corrosion resistant. Simple daily cleaning maintains optimal condition. All clamps and accessories use standardized structures, allowing individual replacement of damaged parts rather than complete system replacement, significantly reducing long-term maintenance costs.
Ideal Applications
Innovative D28 3D Fabrication Jig Table Positioning Tech Industrial Welding Table
Sheet metal processing, metal structure, and chassis/cabinet manufacturers
Automotive parts, construction machinery, and agricultural equipment manufacturers
Fitness equipment, hardware furniture, and metal products manufacturers
Mold, aerospace, and medical device high-precision manufacturing companies
All types of factories pursuing automation, lean production, cost reduction, and efficiency improvement
