Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Octagonal Precision Welding Table Engraved Scale For Precise Measurement
Specifications
Brand Name :
LEMAR
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
D/A,T/T,Western Union,D/P,L/C
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Model Number :
D28
Engraving Process :
Deep engraved, permanent
Surface Flatness :
0.05–0.1 mm/m
Load Capacity :
1000–3000 kg
Fixture System :
Standard 3D welding table hole system
Surface Treatment :
Quenched, anti‑rust, anti‑splash
Diagonal Size :
≈ 1131 mm / ≈ 1414 mm / ≈ 1697 mm
Scale Type :
mm + inch dual scale
Adjustment Range :
±20 mm
Working Temperature :
-20℃ ～ 200℃
Description

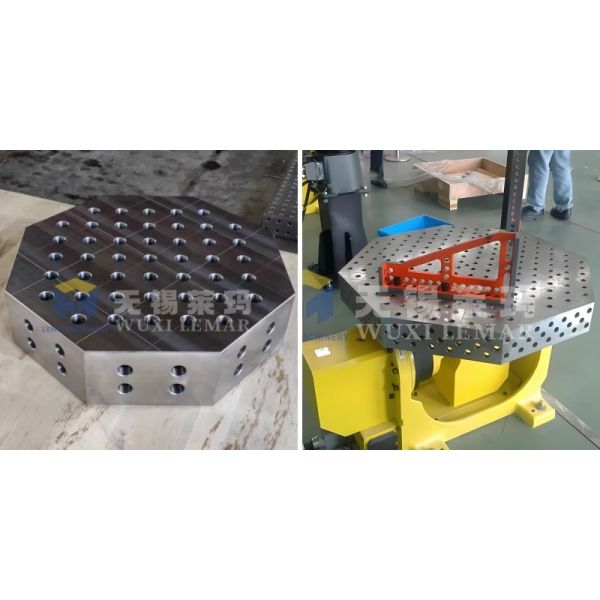

Octagonal Welding Table with Engraved Scale for Precise Measurement
The Octagonal Welding Table with Engraved Scale for Precise Measurement is a heavy-duty precision welding fixture platform designed for integrated operations of welding, assembly, positioning, measurement, and fixture installation. This high-precision worktable serves the welding, sheet metal, steel structure, and tooling fixture industries.

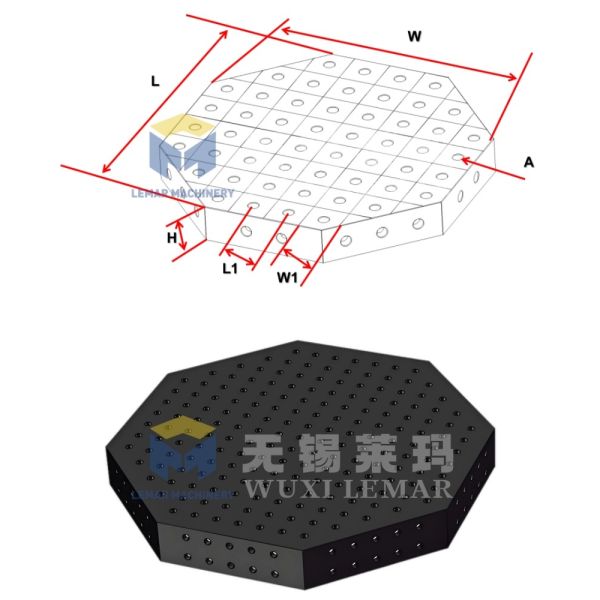

Technical Specifications
Feature Specification
Table Shape Octagonal (8-sided)
Table Material High-strength cast iron / heavy steel plate
Table Size 800 mm / 1000 mm / 1200 mm (across flats)
Diagonal Size Φ1130 mm / Φ1414 mm / Φ1697 mm
Table Thickness 20-30 mm
Working Height 700-850 mm
Scale Type mm + inch dual scale
Surface Flatness 0.05-0.1 mm/m

Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Octagonal Countertop Design
The work surface features an innovative octagonal shape rather than traditional square or round designs.
  • Simultaneous operation from 8 directions enables multi-station and multi-person collaborative work
  • Enhanced flexibility for workpiece rotation, angle welding, and pipe welding applications
  • Superior space utilization, ideal for precision welding of small and medium-sized parts
Permanently Engraved Scale System
Precision markings are directly engraved onto the work surface, eliminating temporary stickers or spray paint solutions. The engraved scale includes:
  • Millimeter markings (mm)
  • Inch markings (inch)
  • Angle lines for precise angular positioning
  • Center lines and baselines for accurate alignment
Key advantages of the engraved scale system:
  • High temperature resistance, wear resistance, and permanent adhesion
  • Direct measurement, marking, and positioning during welding operations
  • Significant improvement in welding accuracy and production efficiency

Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Functions and Advantages
This multi-purpose platform serves as a comprehensive welding, positioning, measurement, assembly, scribing, and tooling fixture system.
Key Performance Benefits
  • High Precision: Engraved scale and superior surface flatness ensure accurate workpiece dimensions
  • High Efficiency: Reduces time spent on repeated measurement, clamping, and alignment operations
  • High Durability: Heavy-duty construction and deep engraving ensure long-term performance without deformation or wear
  • Flexible Operation: Octagonal design enables simultaneous multi-directional and multi-station workflows
  • High Versatility: Compatible with various standard welding fixtures and suitable for multiple industrial applications
Advantages Over Traditional Square Workbenches
  • Octagonal design provides 8 operable sides compared to only 4 sides on square benches
  • Enhanced flexibility for angle welding and pipe welding applications
  • Multiple operators can work simultaneously without interference
  • Integrated engraved scale eliminates need for separate measuring tapes or squares
  • Superior precision, efficiency, and professional workflow capabilities
