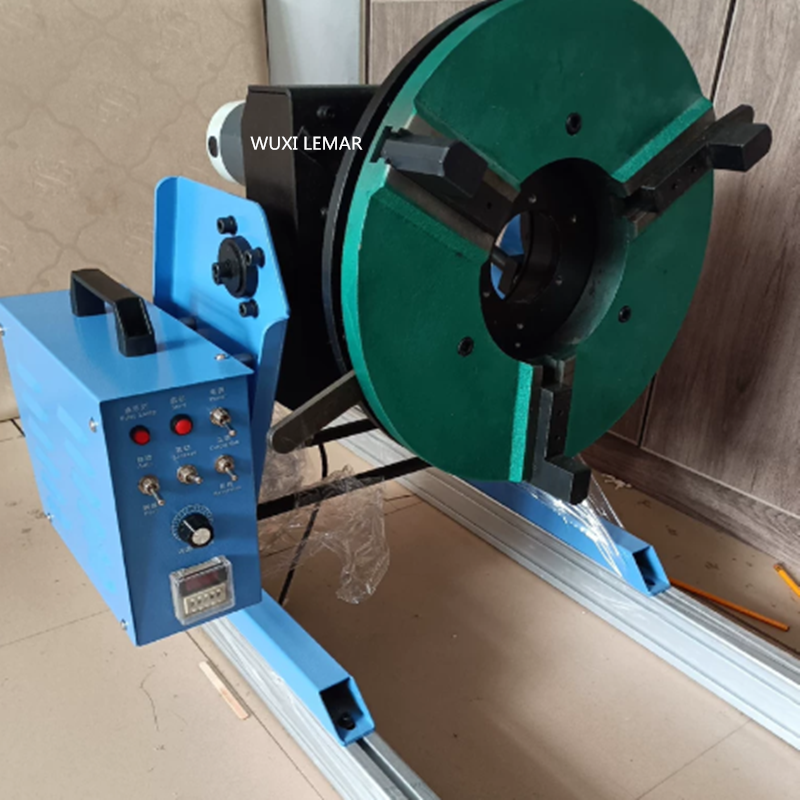

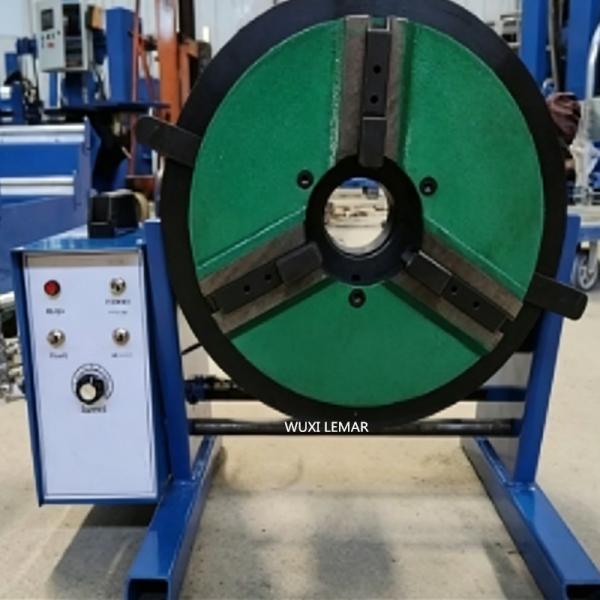

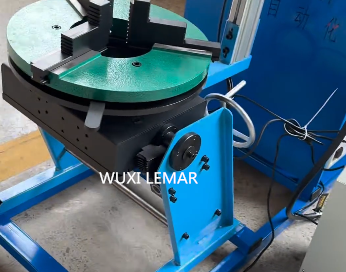

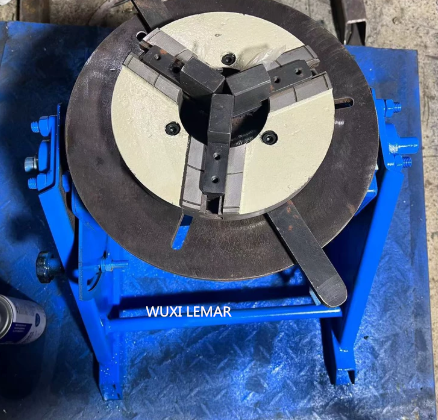

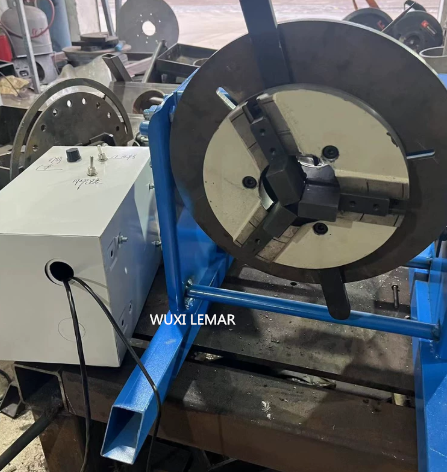

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Specifications
Brand Name :
LEMAR
Model Number :
BWJ-05
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000USD
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
10-20 work days
Packaging Details :
55.00cm * 55.00cm * 60.00cm
Model :
BWJ-05
Max Eccentricity Distance :
320mm
Voltage :
110V/220V
Welding Tilter Type :
No
Product Name :
50kg Welding Positioner
Produnt Type :
Rotary Welding Positioner
Application :
Pipe / Circular Welding
Material :
Steel Structure
Description
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Product Introduction

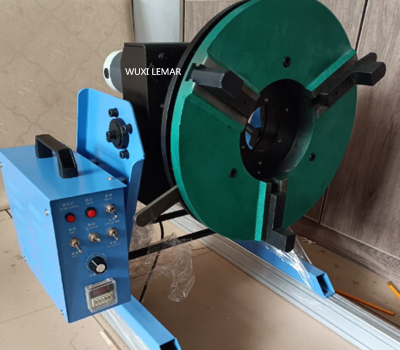

50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner

This 50kg mini welding positioner is lightweight portable welding auxiliary equipment, specially designed for small workpiece processing. It features compact size and flexible movement, ideal for small workshop daily welding work.

Adopts stable drive structure and stepless speed regulation, running smoothly with low noise. It can rotate and tilt workpieces freely, helping workers finish circumferential welding quickly and easily.

  • Body Material: Thickened high-strength carbon steel, solid integrated frame, high rigidity, stable structure and anti-deformation
  • Drive Treatment: Precision gear drive assembly, smooth transmission, low noise and long service life
  • Running Accuracy: Stable rotating balance, accurate tilting positioning, ensure uniform welding seam effect
  • Multi-angle Design: Support 360° horizontal rotation and electric tilting angle adjustment, flexible workpiece placement
  • Speed Control: VFD stepless speed regulation, wide speed range, easy adjustment to meet different welding processes
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner 50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Technical Specifications
Model BWJ-05 Input power AC220V
Horizontal loading 50KG Vertical loading 25KG
Work table diameter 315mm Work table height 340mm
Rotate speed 0.5-5rpm Rotate motor 120W
Flip angle 0-90° Flip mode Manual
Suitable chuck KP-65/125/200/300 Warranty 1 year
Product Production Process
  • Raw Material Cutting: Adopt high-quality steel plate raw materials, cut materials accurately according to drawing standards
  • Integral Welding: Integrate frame welding, conduct stress relief treatment to avoid structural deformation
  • Precision Machining: Process core rotating parts via CNC machining to ensure assembly precision
  • Drive Assembly: Install reducer, motor and frequency converter, complete internal wiring layout
  • Debugging Test: Carry out no-load running, speed test and load bearing test one by one
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Product Configuration
Standard Configuration Optional Configuration
High-strength carbon steel main body, anti-deformation VFD stepless speed regulation system
Standard motor and reducer drive system Handheld remote control pendant
360° rotation + fixed angle tilting Foot pedal control switch
Standard welding table / chuck High-precision positioning brake device
Wired control panel Customized fixtures for different workpieces
Anti-rust painting surface treatment Waterproof & high-temperature resistant parts
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner 50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner

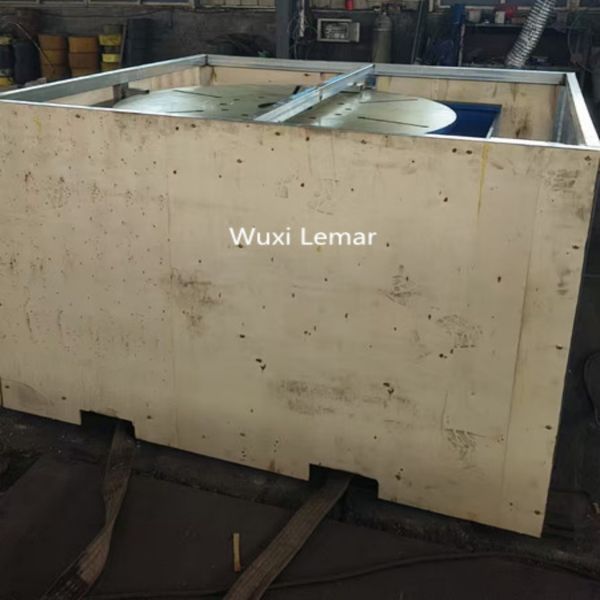

Product Packaging
50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner50KG Mini Welding Positioner 360° Rotation Electric Tilting Welding Positioner
Frequently Asked Questions
Q: What is the rated load of 50kg welding positioner?
A: Its safe bearing capacity is 50kg, specially suitable for various small workpieces welding processing.
Q: Can this mini positioner adjust rotating speed freely?
A: Yes, it supports VFD stepless speed regulation, runs smoothly and keeps stable rotating speed.
Q: What angle can this welding positioner tilt?
A: It can realize 360° horizontal rotation and 0-120° electric tilting for omnidirectional welding.
Q: Is it convenient to operate this light duty positioner?
A: Simple control design, easy to start and adjust, labor-saving and high working efficiency.
Q: What kinds of workpieces is it mainly used for?
A: Widely used for small pipes, hardware parts, small cylinders and other miniature workpieces welding.
