Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Specifications
Model Number :
D16
Custom Sizes :
Support customized length, width and table height
Brand Name :
WUXI LEMAR
Uniform Area Load :
3000–5000kg/㎡
MOQ :
1 PCS
Delivery Time :
15-20 work days
Optional Tabletop Thickness :
12mm
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Side Verticality :
≤0.05mm per 200mm height
Hole Edge :
45° chamfer for smooth pin insertion
Hole Machining Tolerance :
H7 precision grade
Supply Ability :
500 units/month
Overall Flatness :
≤0.1mm/m (high precision custom: ≤0.05mm/m)
Price :
500-1500 USD
Hole Position Repeat Accuracy :
±0.05mm
Max Single-Point Concentrated Load :
1500kg
Certification :
CE
Place of Origin :
WUXI
Packaging Details :
4000*2000*200mm
Description
Standard D16 3D Grid Hole Modular Welding Working Table
Standard D16 3D Grid Hole Modular Welding Working Table
Product Overview

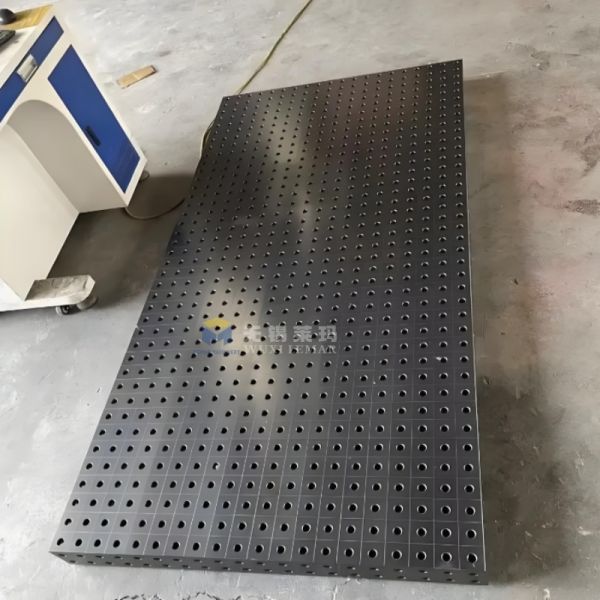

The Standard D16 3D Grid Hole Modular Welding Working Table is a full three-dimensional flexible clamping platform built with international standard D16 hole system.

Unlike 2D welding tables that only have holes on the top surface, this 3D welding table is fully perforated on the top plane plus four vertical side panels (5 working surfaces in total), forming a complete X/Y/Z three-dimensional positioning grid.

D16 means the diameter of all locating holes is 16 mm, with a uniform 50×50 mm center-to-center grid spacing. The dense small-hole layout delivers more clamping points, ideal for thin sheet metal, small precision assemblies, stainless steel workpieces and complex small stereo frames.

Standard D16 3D Grid Hole Modular Welding Working Table
Technical Specifications
Specification Details
Hole System Standard D16, Hole Dia 16mm, Grid Pitch 50×50mm
Working Surfaces Top + Four Vertical Sides (5-sided full perforation)
Tabletop Material S355JR Alloy Steel / HT300 Gray Cast Iron Optional
Surface Treatment Whole-body Nitriding
Surface Hardness HRC 42 ~ 52
Overall Flatness ≤0.1mm / Meter
Repeat Positioning Accuracy ±0.05mm
Standard Table Sizes (mm) 1000×800, 1200×1000, 1500×1000, 2000×1000, 2400×1200, Custom Sizes Supported
Load Bearing Capacity 1-8 tons according to table dimension
Material Comparison

Material Deep Comparison: S355 Steel VS HT300 Cast Iron Tabletop

S355JR Low Alloy Steel D16 3D Table
  • Light weight, short production cycle, affordable cost
  • Good toughness, impact-resistant
  • Best for: Small & medium job shops, multi-model small batch production, budget limited customers
HT300 High-Grade Gray Cast Iron D16 3D Table
  • Ultra-strong vibration absorption, excellent thermal stability
  • Almost no thermal deformation during continuous welding
  • Dense texture, welding spatter easier to clean
  • Long-term precision retention for over 10 years
  • Best for: Robot automatic welding lines, precision stainless steel processing, high-volume mass production factories, laboratory prototype workshop
Standard D16 3D Grid Hole Modular Welding Working Table Standard D16 3D Grid Hole Modular Welding Working Table
Package Contents
Standard D16 3D Grid Hole Modular Welding Working Table
Standard Packing
  • D16 3D welding table main body (5-sided perforated tabletop + reinforced support stand)
  • 4 adjustable leveling feet + all assembly bolts
  • Anti-rust protective oil, shockproof foam inner padding
Optional Extra Parts
  • Brake swivel casters for easy table moving
  • Complete D16 fixture set (locating pins, clamps, angle blocks, V-supports)
  • Splicing connectors for multi-table expansion
Packing Method

Export standard plywood wooden case or iron frame packaging, suitable for long-distance sea / land global transportation, effectively avoid collision damage.

Choose the Standard D16 3D Grid Hole Modular Welding Working Table for all your precision 3D welding tasks. Request a quote, check technical drawings or ask about full fixture kits via our contact form at any time.
