D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
Specifications
MOQ :
1 PCS
Supply Ability :
500 units/month
Packaging Details :
4000*2000*200mm
Hole Center Distance Tolerance :
±0.03 mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Squareness :
≤0.1 mm / 200 mm
Fitting Specification :
Universal D28 Accessories
Price :
500-1500 USD
Nitrided Layer Thickness :
0.2–0.5mm
Certification :
CE
Place of Origin :
WUXI
Table Thickness :
25 mm
Brand Name :
WUXI LEMAR
Flatness :
≤0.1 mm / 1000 mm
Model Number :
D28
Delivery Time :
15-20 work days
Hole Diameter Tolerance :
H7
Load Capacity :
2000–3000 kg/㎡
Repeat Positioning Accuracy :
±0.03 mm
Description
D28 1000x1000mm 3D Welding Table with Full Welding Kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
Product Overview

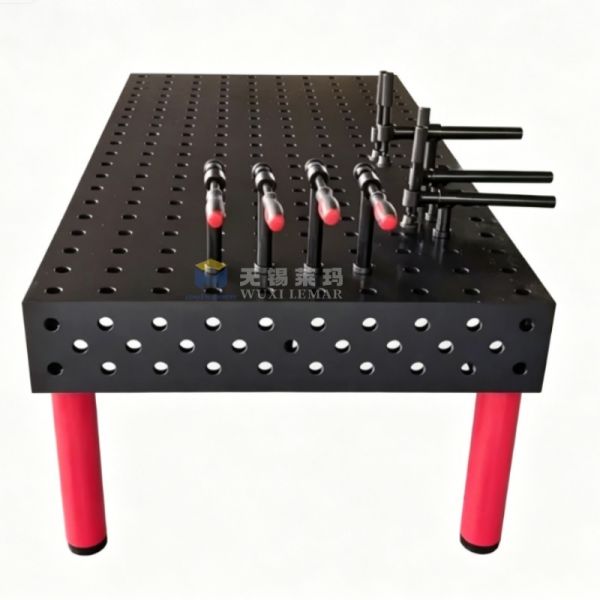

The D28 1000×1000mm 3D Welding Table with Full Welding Kit comprises a 3D flexible welding platform featuring a D28 hole system, a 1m × 1m tabletop, and five usable working surfaces along with a complete set of standard fixtures. Designed for precision welding, assembly, and inspection, it enables rapid fixture setup and offers high repeatability in positioning, serving as a superior alternative to traditional welding fixtures.
D28 1000x1000mm 3D Welding Table with Full Welding Kit D28 1000x1000mm 3D Welding Table with Full Welding Kit
Technical Specifications
Tabletop dimensions 1000 × 1000 mm
Working surfaces 5 sides (top + 4 sides) fully machined with complete hole pattern
Hole grid 100 × 100 mm ±0.05 mm; hole center-to-center tolerance ±0.03 mm
Flatness ≤0.1 mm/1000 mm
Material Steel version: Q355/S355J2N
Cast iron version: HT300
Surface treatment Plasma nitriding (HV450-700); resistant to weld spatter, rust, and wear
Tabletop thickness 25 mm
Load capacity 2000-3000 kg/m²
Bottom structure Dense reinforcing ribs; deformation ≤0.02 mm/m
Accuracy Horizontal 0.1/1000 mm, Vertical 0.1/200 mm
Full Welding Kit Contents
The standard configuration includes the following tooling to meet most welding and assembly requirements:
Positioning and Clamping
  • 28mm locating pins, quick-locking bolts (M16), flat clamping plates, angled clamping plates
  • 90° squares/positioning blocks, L-shaped supports, 3D connectors, extension arms
  • Adjustable clamps, quick-action clamps, screw clamps
Support and Adjustment
  • Height support blocks (50/100/150mm), adjustable support legs (±25mm)
  • Leveling bolts, floor anchoring kits
Protection and Accessories
  • Hole protection plugs, anti-spatter coating/spray, cleaning brush
  • Accuracy inspection report, operation manual, tool kit
D28 1000x1000mm 3D Welding Table with Full Welding Kit
Core Advantages
  • High Precision: Precision machining of hole patterns and surface flatness; repeatability of ±0.03mm ensures welding consistency.
  • High Efficiency: Modular design reduces fixture setup time by over 80% and enables rapid switching between product types.
  • High Rigidity: Usable on five sides with reinforced bottom ribbing; prevents deformation even with heavy workpieces.
  • Low Cost: Replaces dedicated jigs, saving 90% on tooling costs; easy to maintain.
  • High Versatility: Suitable for complex welding applications involving vehicle frames, enclosures, piping, construction machinery, and more.
Safety and Certification
D28 1000x1000mm 3D Welding Table with Full Welding Kit
CE Certification: All our 3D welding tables comply with the EU Machinery Directive 2006/42/EC.
Safety Design Features
  • Rounded table edges to prevent cuts
  • Anti-slip and anti-tip support legs
Environmental Compliance
Free from hazardous substances, recyclable, and compliant with industrial environmental standards.
Upgrade your welding performance!
D28 1000×1000mm 3D Welding Table with Full Welding Kit — your ideal solution. Contact us today.
