Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table
Specifications

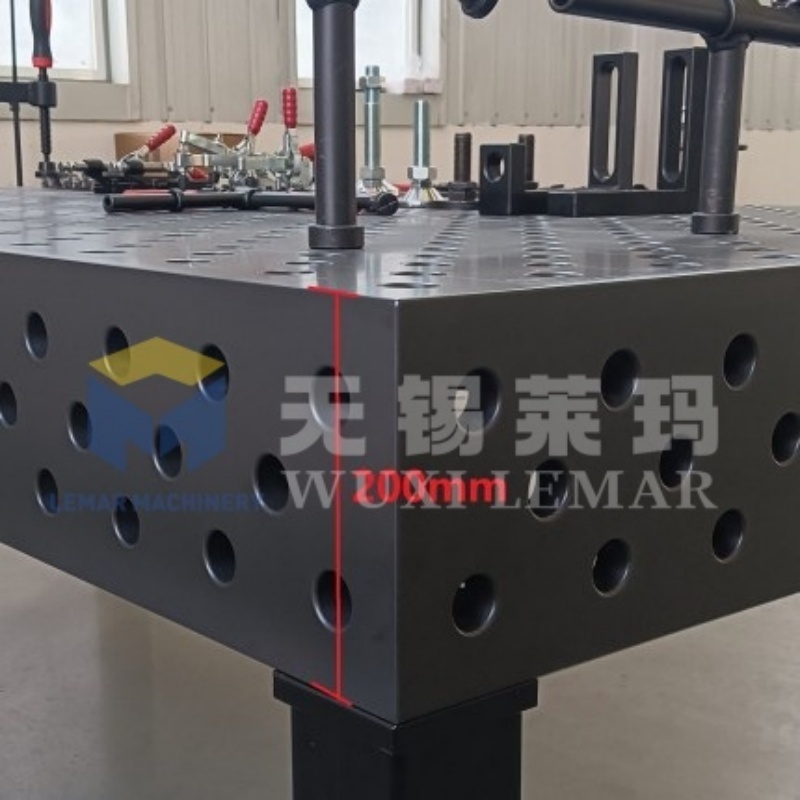

Tabletop Thickness :
25 mm
Delivery Time :
1-20 work days
Hole Perpendicularity :
≤0.03 mm/25 mm
Supply Ability :
500 units/month
Overall Weight :
800–1500 kg (varies by dimension)
Hole Wall Roughness :
Ra 1.6–3.2
Certification :
CE
Working Surfaces :
5 fully machined sides (1 top + 4 lateral sides) with complete hole system
Place of Origin :
WUXI
Tabletop Flatness :
≤0.3 mm per 1000 mm (after nitriding treatment)
MOQ :
1 PCS
Payment Terms :
D/A,L/C,D/P,T/T
Brand Name :
WUXI LEMAR
Tabletop Material :
Cast iron HT300/High-strength alloy steel S355JR (Q355)
Packaging Details :
4000*2000*200mm
Lateral Side Verticality :
≤0.1 mm per 200 mm
Locating Hole Diameter :
φ28 mm (+0.05 ~ +0.15 mm)
Model Number :
D28
Price :
500-1500 USD
Description
Metal Processing Plant Standard D28 3D Welding Fixture Table
Metal Processing Plant Standard D28 3D Welding Fixture Table

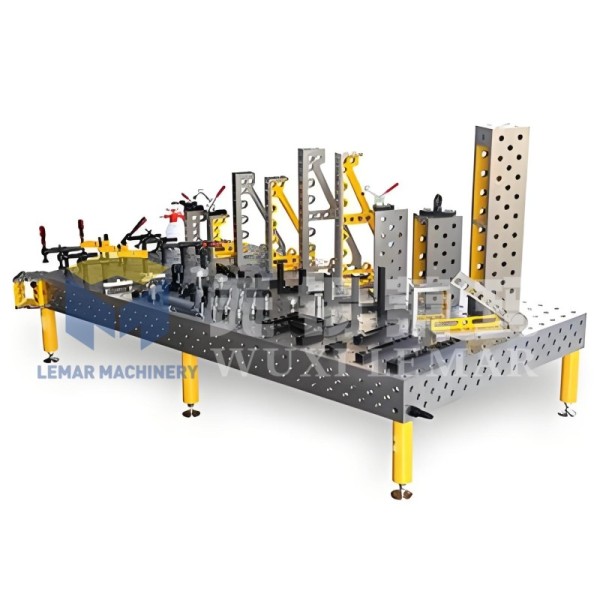

The Metal Processing Plant Standard D28 3D Welding Fixture Table is a core equipment for metal processing standardization, modularity, and flexibility. It features a diameter of 28mm holes and a 100mm grid, five sided machining, and heavy-duty wear resistance.
Suitable for heavy-duty, large-scale, high-precision welding and assembly scenarios, this table significantly improves efficiency, ensures quality, and reduces costs. It is a standard equipment for modern metal processing plants.
Metal Processing Plant Standard D28 3D Welding Fixture Table
Technical Specifications
Material High strength alloy steel Q355 or cast iron HT300, with strong rigidity and deformation resistance
Process Five sided precision milling to ensure flatness and perpendicularity; The bottom is densely reinforced with reinforcing ribs, providing better load-bearing and stability

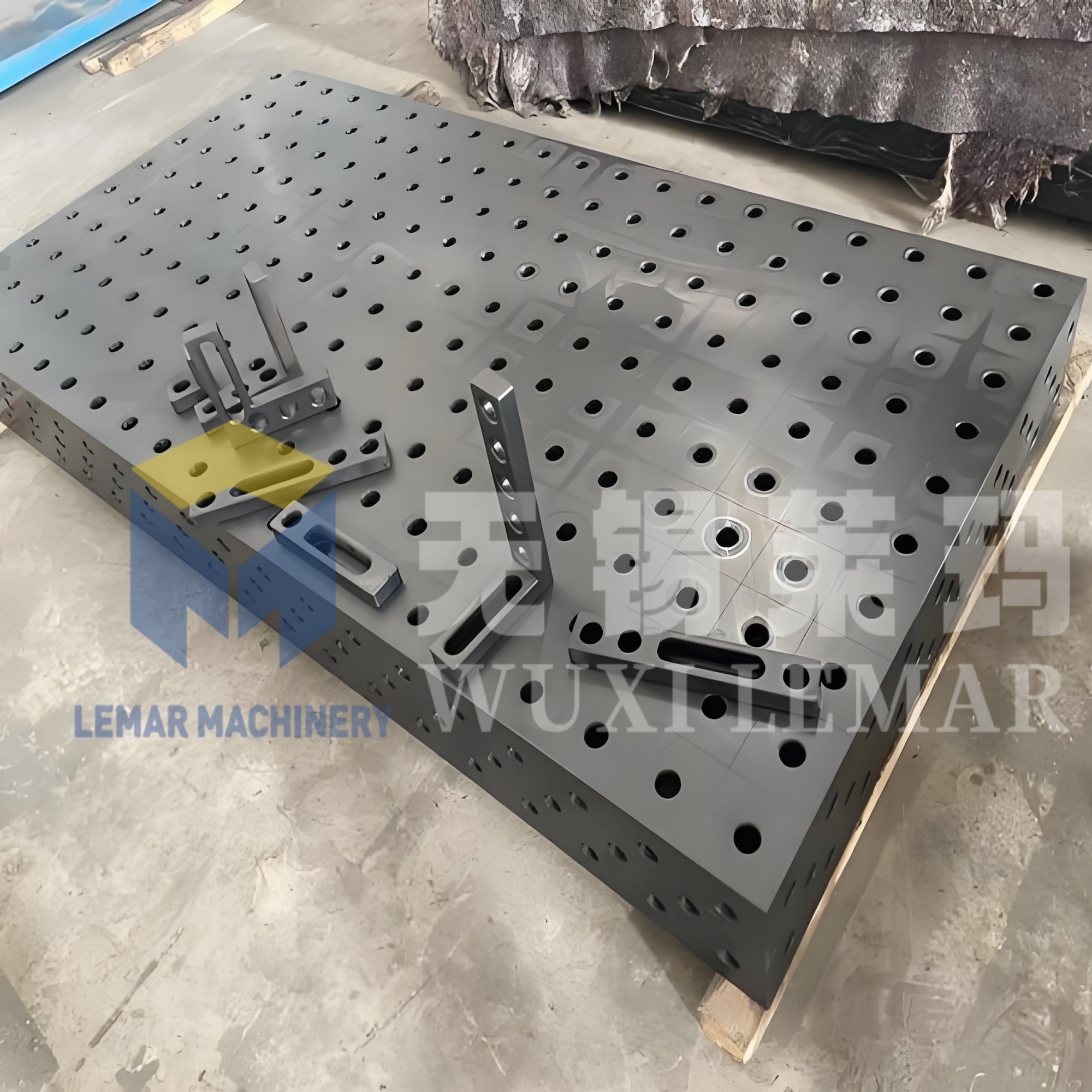

Hole System 28mm positioning hole, 100mm equidistant grid, convenient for three-dimensional clamping and positioning

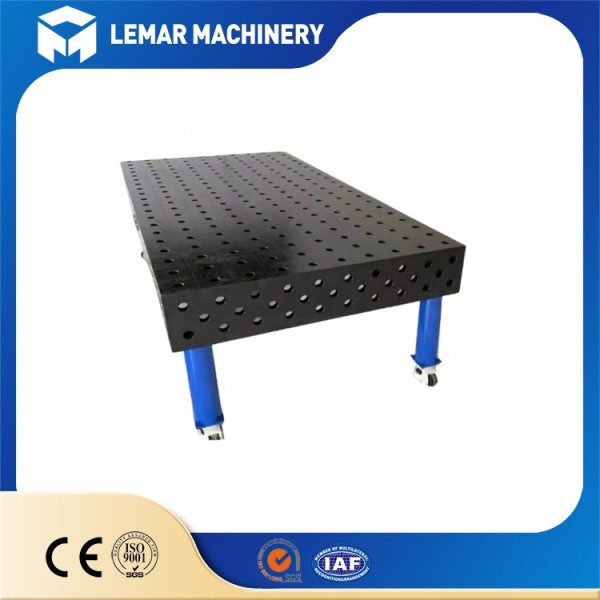

Support Legs Adjustable height (±50mm), with horizontal adjustable feet, suitable for uneven ground

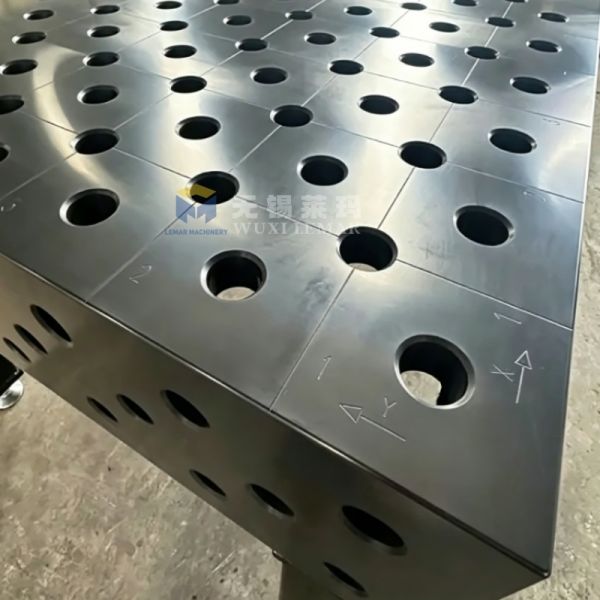

Surface Treatment Nitriding treatment, high hardness, wear resistance, resistance to welding slag adhesion, easy to clean, industrial preferred
Internal Structure
  • Bottom reinforcement bars: spacing of 400-500mm, criss crossing
  • Reinforcement plate thickness: 10-12mm, fully welded to the tabletop, with strong rigidity
  • Load bearing: D28 welding table can support a single weight of 2000-3000kg/m², and a single point support can reach 1000kg/leg
Metal Processing Plant Standard D28 3D Welding Fixture Table Metal Processing Plant Standard D28 3D Welding Fixture Table
Service Life & Accuracy Maintenance
  • Normal use (8 hours per day, standardized operation): The accuracy of the 3D welding table is maintained for 5-8 years
  • Wear of nitriding layer: Over 10 years, slight wear of the orifice can be repaired
  • Prohibited: hammering the table, arc burning the working surface, overloading (>3 tons/m²)
