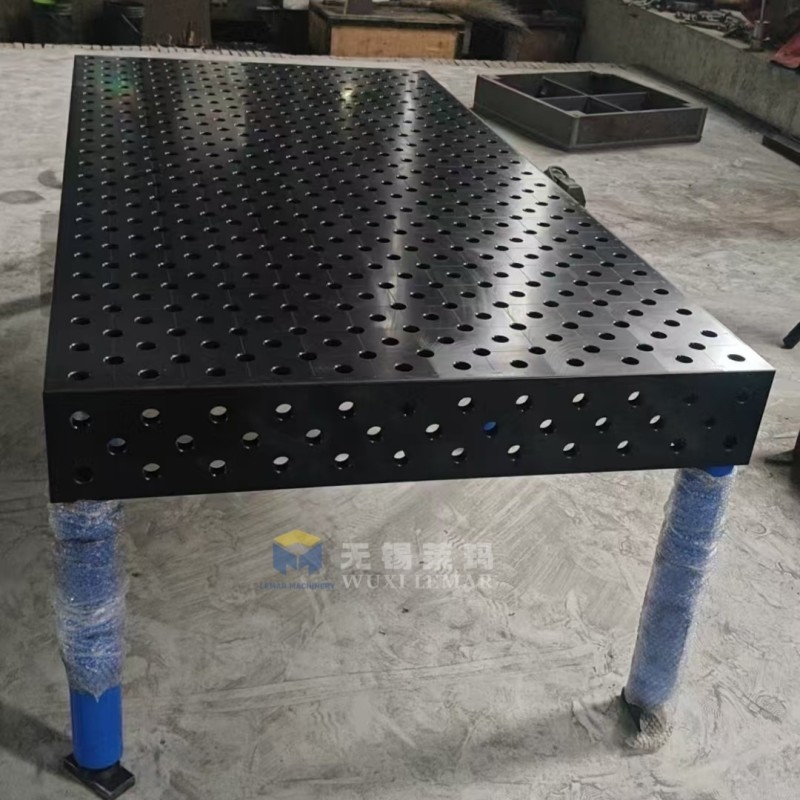

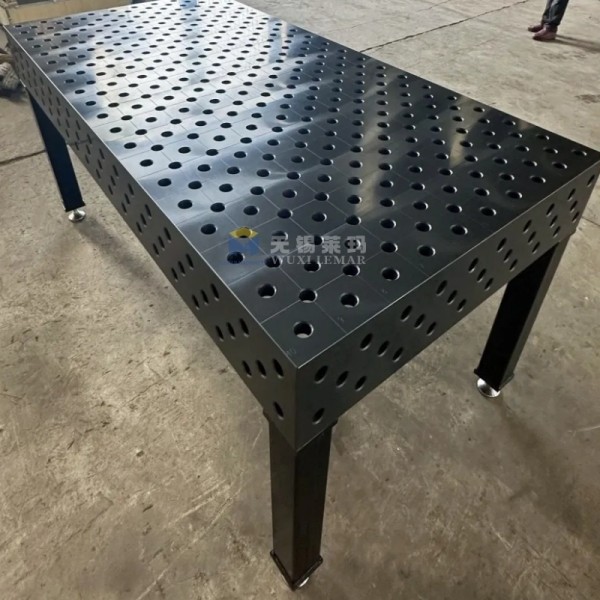

System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
Specifications
Model Number :
D28
Hole Standard :
System 28 (D28)
MOQ :
1 PCS
Delivery Time :
15-20 work days
Standard Working Height :
630mm
Nitride Layer Depth :
0.25–0.35mm
Payment Terms :
D/A,L/C,D/P,T/T
Main Plate Material :
S355J2+N normalized low alloy high strength steel
Price :
500-1500 USD
Yield Strength :
≥355MPa
Certification :
CE
Grid Spacing :
100×100mm Orthogonal Grid
Brand Name :
WUXI LEMAR
Brand :
Custom OEM / ODM Acceptable
Supply Ability :
500 units/month
Standard Plate Thickness :
25mm
Place of Origin :
WUXI , CHINA
Sidewall Height: :
200mm
Packaging Details :
4000*2000*200mm
Description
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole

Looking for a durable heavy welding platform for large steel fabrication? Our System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole is your ideal solution. Built with certified S355J2+N structural steel and unified 28mm locating holes in 100×100mm grid, this 3D welding jig table supports heavy load, multi-angle positioning and full universal System28 accessories matching, perfectly serving engineering machinery, rail transit and automated welding production lines.


System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole

Size Specifications
Table Dimension (L×W, mm) Top Plate Thickness Total Weight (Approx.) Application Scenario
1000 × 800 25mm 480 KG Small batch sheet metal, small robotic workstation
1500 × 1000 25mm 760 KG General machinery frame, pipe welding
2000 × 1000 25mm 980 KG Auto parts, light engineering equipment
2000 × 1500 25mm 1320 KG Truck chassis, container accessories
3000 × 1500 25mm 1860 KG Construction machinery, wind power brackets
4000 × 2000 25mm 2650 KG Large steel structure, heavy vehicle frame
Core Material Advantages
  • Excellent weldability: Low carbon, low sulfur, and low phosphorus design with a low carbon equivalent reduces the likelihood of porosity and cracking during welding, and prevents localized embrittlement even under long-term exposure to high welding slag temperatures
  • Deformation resistance and high rigidity: 355MPa yield strength, standard 25mm platform thickness, and integrated bottom reinforcement ensure no denting under a full load of 6 tons
  • Temperature resistance and stability: Dimensional stability far surpasses that of ordinary Q355 and cast iron platforms, even in low-temperature workshops during winter and continuous high-temperature welding conditions
  • Long service life: Strict impurity control prevents corrosion, and the plasma nitriding surface doubles the wear resistance life
Structural Design Features
System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole
  • Five-sided 3D fixture with full holes: The top surface and four sides all have standard 28mm holes, enabling positioning at any angle in three-dimensional space
  • Rounded corners: All edges and corners of the table are rounded to prevent scratches on the fixture and workpiece, and reduce welding stress concentration
  • Integrated bottom reinforcing ribs: Milled ribs/box-shaped welded structure on a single piece of steel plate, resistant to heavy loads and welding heat deformation
  • Universal fixture compatibility: Our D28 welding table is fully interchangeable with all System28 standard fixtures worldwide (locating pins, right-angle rulers, quick clamps, V-blocks, support columns)
Common Customer Solutions

Problem: Deformation and dimensional inaccuracies on the welding table

Solution: Double-stage aging + S355J2+N low-stress substrate, FEM-optimized reinforcing ribs to suppress thermal deformation

Problem: Incomplete export material certificates, hindering customs clearance

Solution: One-stop provision of complete original material certificates, low-temperature impact reports, and CE certification

Problem: Poor fixture interchangeability, incompatible parts from different manufacturers

Solution: Strict adherence to the globally unified System28 100×100 H7 hole standard, compatible with all brand tooling

Problem: Weld slag adheres to the work surface, difficult to clean, and prone to rust

Solution: 0.3mm plasma nitriding layer, high-temperature resistant, non-stick, rust-proof, and wear-resistant

Problem: Insufficient clamping rigidity of large-part tooling, causing welding vibration and misalignment

Solution: 28mm large-diameter locating pins, reinforced housing structure, single-point clamping force far exceeding that of the D16 system

Stop wasting costs on inefficient fixed welding jigs! Invest in our high-performance System 28 S355J2+N Steel Welding Table with 28mm Locating Borehole to boost your welding flexibility and machining accuracy greatly.

We provide one-stop service including platform production, supporting fixture matching and technical after-sales guidance. Leave your message in the inquiry box with your working condition requirements, and our sales manager will reply to you within 24 hours with a full solution and favorable price.
