5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
Specifications
Model Number :
D28
Surface Treatment :
Nitriding (HV550‑800)
Price :
500-100 USD
Grid Pitch :
100 ±0.05 mm
Side Perpendicularity :
0.1 mm /200 mm
MOQ :
1 PCS
Delivery Time :
15-25 work days
Optional Material :
Q355 Alloy Steel / HT300 High‑Strength Cast Iron
Payment Terms :
D/P,L/C,D/A,T/T
Flatness Tolerance :
0.1 mm /1000 mm
Side Height :
200 mm (All four vertical sides fully holed)
Supply Ability :
500 units/month
Bore Diameter :
φ28.065‑28.149 mm
Certification :
CE
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Table Top Thickness :
25mm
Brand Name :
WUXI LEMAR
Standard Dimensions :
1000×1000 ~ 4000×2000 mm, multi‑table splicing available
Description

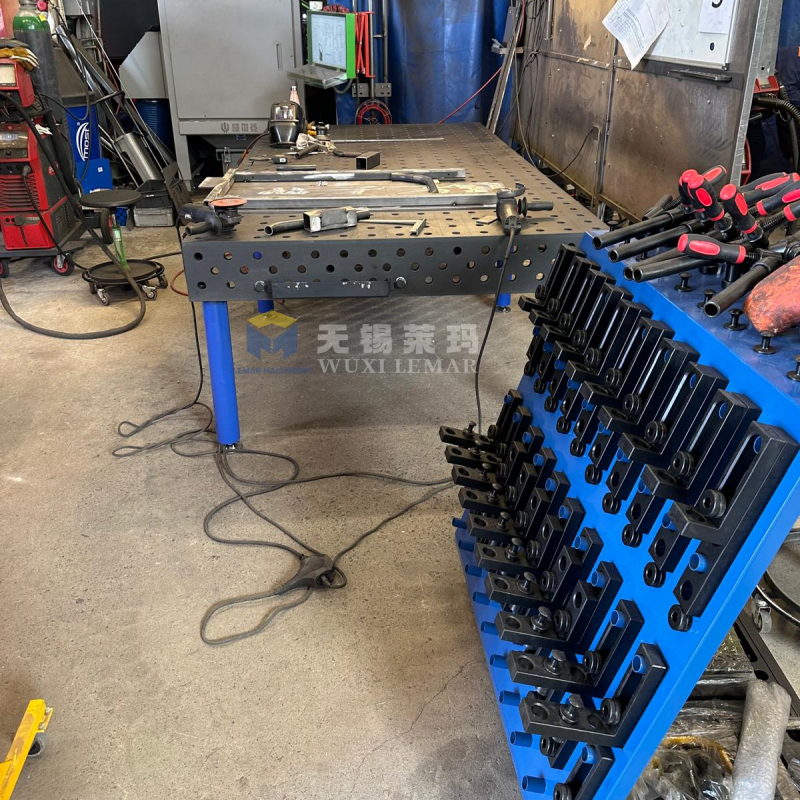

5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly

Maximize your workshop flexibility with our 5‑Sided D28 Welding Table, built for multi‑angle clamping and complex 3D assembly jobs. Five‑face full hole‑grid design allows positioning and clamping from top and all four vertical sides. High‑precision DIN‑standard D28 hole system, nitrided surface and heavy‑duty body guarantee stable repeat accuracy for heavy metal fabrication. Cut down custom‑tooling cost, speed‑up set‑up time for manual weld bays and automated robotic welding stations.

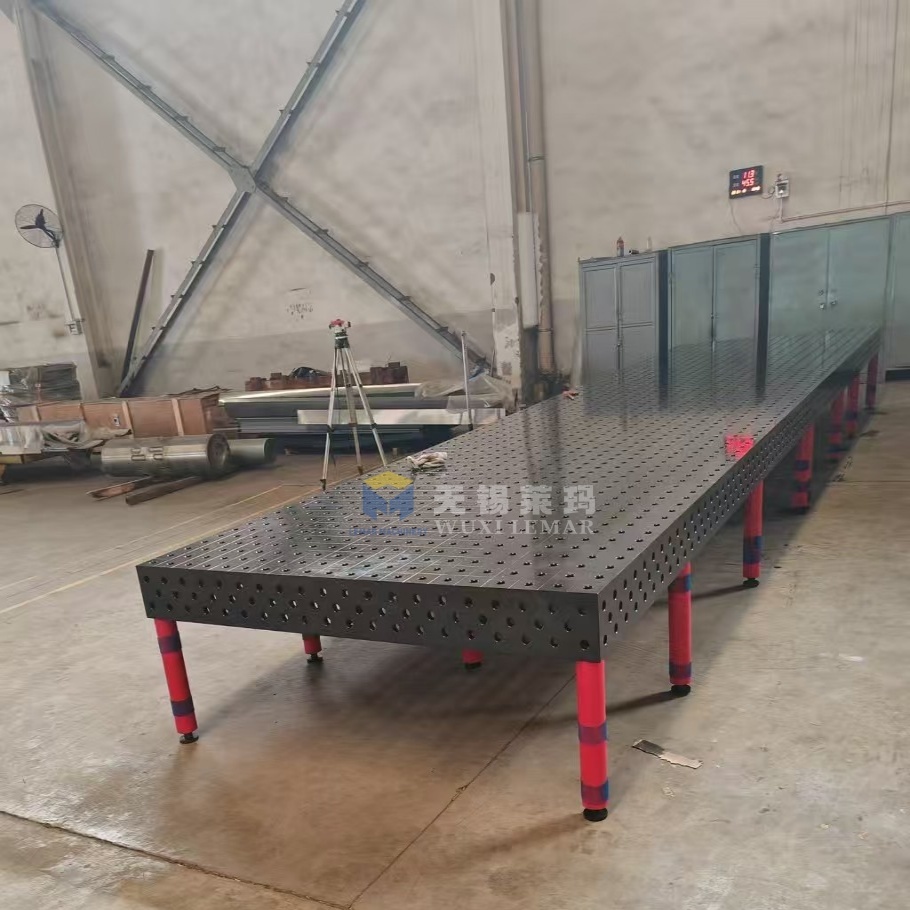

5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly 5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
Key Technical Parameters (Industry Standard)
Item D28 5‑Sided Welding Table
Bore Diameter φ28.065‑28.149 mm
Grid Pitch 100 ±0.05 mm
Flatness Tolerance 0.1 mm /1000 mm
Side Perpendicularity 0.1 mm /200 mm
Table Top Thickness Approx. 25 mm with bottom reinforcing ribs
Side Height 200 mm (All four vertical sides fully holed)
Optional Material Q355 Alloy Steel / HT300 High‑Strength Cast Iron
Surface Treatment Nitriding (HV450‑630), anti‑spatter, wear‑resistant & anti‑corrosion
Static Load Capacity 5‑10 tons, 1‑2 tons per single leg
Standard Dimensions 1000×1000 ~ 4800×2400 mm, multi‑table splicing available
Matching Bolt M16 standard locking bolts, compatible with full set of D28 fixtures
In-depth Details

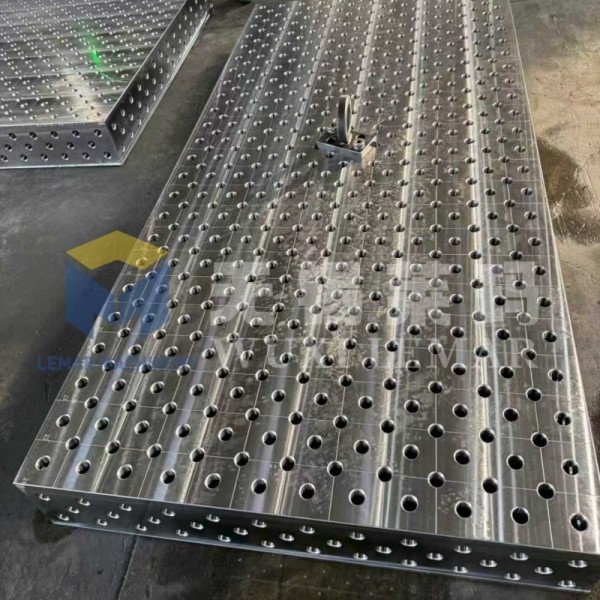

  • The standard height of the side panel is 200 mm; the sides of the D28 welding table feature a full grid of D28 holes (spaced at 100×100 mm) extending from top to bottom, rather than just a few sparse rows.
  • The perpendicularity tolerance between the top surface and the four side panels is 0.1 mm / 200 mm. This specification directly determines the accuracy of 90° right-angle setups for side-mounted workpieces.
  • "Five-sided hole configuration" is not merely a matter of drilling holes in the sides; the top surface and all four sides undergo unified CNC machining based on a single reference point to ensure alignment across the entire hole pattern.
  • Side holes allow for the direct mounting of right-angle blocks, side clamps, and vertical extension modules. Workpieces can be mounted vertically against the side panel without the need for riser blocks, thereby eliminating cumulative errors.
Transportation and Installation

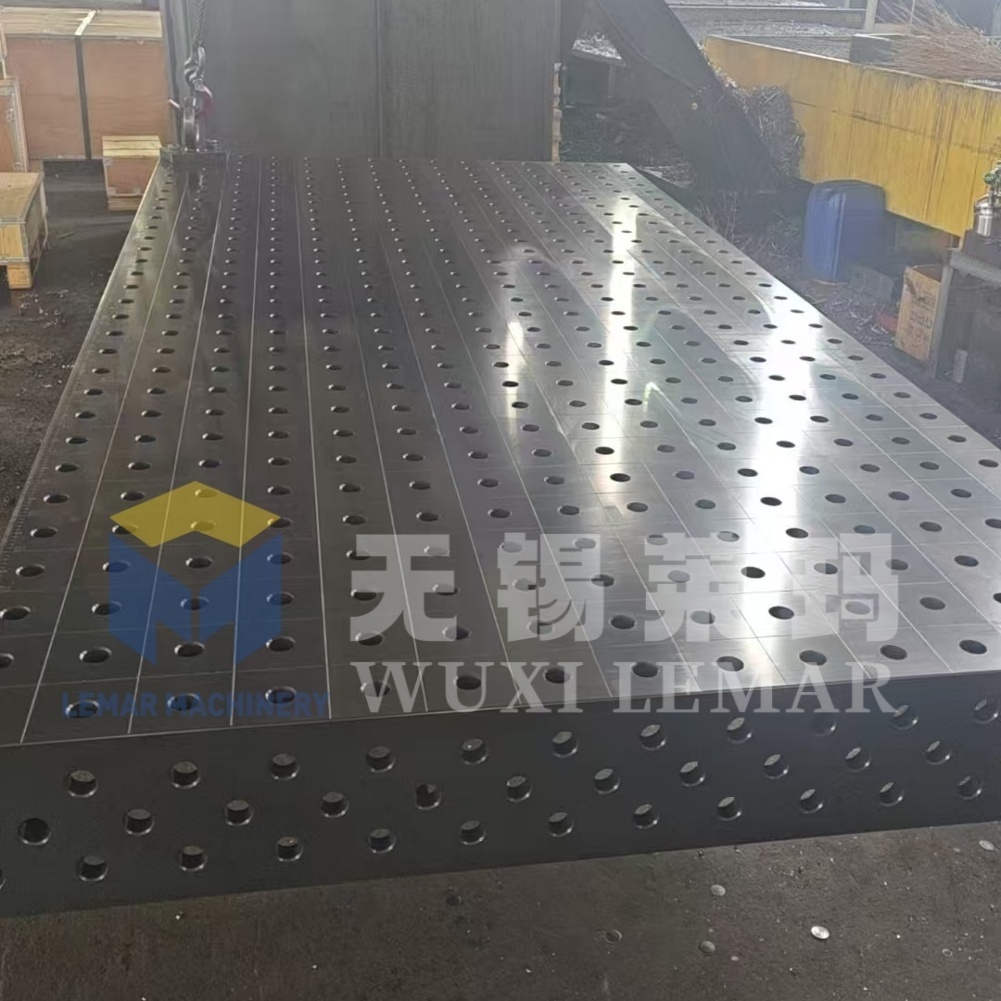

5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly 5-Sided D28 Welding Table for Multi-Angle Clamping and 3D Assembly
  • D28 welding tables are very heavy; for instance, a 2000×1000mm unit weighs approximately 700-900 kg. Forklifts or overhead cranes are required for lifting; lifting holes are a standard feature on the tabletop.
  • Export/Sea Freight: Packed in fumigation-free solid wood crates with internal foam protection for the working surface to prevent impact damage during transit.
  • Installation Sequence: Position tabletop → Lift into place → Install legs → Rough leveling → Fully tighten fasteners → Verify flatness with a laser level → Install fixtures.
  • Floor Requirements: For heavy-duty applications, a concrete floor thickness of ≥150 mm is recommended. For heavy-duty robotic welding stations, securing the unit to the floor with chemical anchors is recommended.
FAQ
Q: Is this D28 5‑sided welding table compatible with other brand D28 fixtures?
A: Yes, it follows DIN D28 hole‑system standard, compatible with most mainstream D28 modular fixture sets on the market.
Q: Can you offer OEM / ODM service?
A: Yes. Custom dimensions, special marking/logo are available. Minimum order applies for OEM service.
Q: What is your lead time for 5‑sided D28 welding tables?
A: For Q355 steel version: 7‑15 working days. For HT300 cast iron version: 20‑35 working days. Custom large sizes over 3000×2000mm will take extra production time.
Q: What is your payment term?
A: 30% deposit upon PI confirmation, 70% balance before shipment. Other negotiable terms available for long‑term bulk orders.
Q: Do you provide inspection report before shipment?
A: Yes. We supply dimension report, flatness & perpendicularity test record. Third‑party inspection is acceptable upon buyer's request.

Interested in our 5‑Sided D28 Welding Table for Multi‑Angle Clamping and 3D Assembly?

Share your working conditions, target dimensions and accessory needs with us. We offer complete technical support and competitive pricing. Contact us now to get your custom offer.
