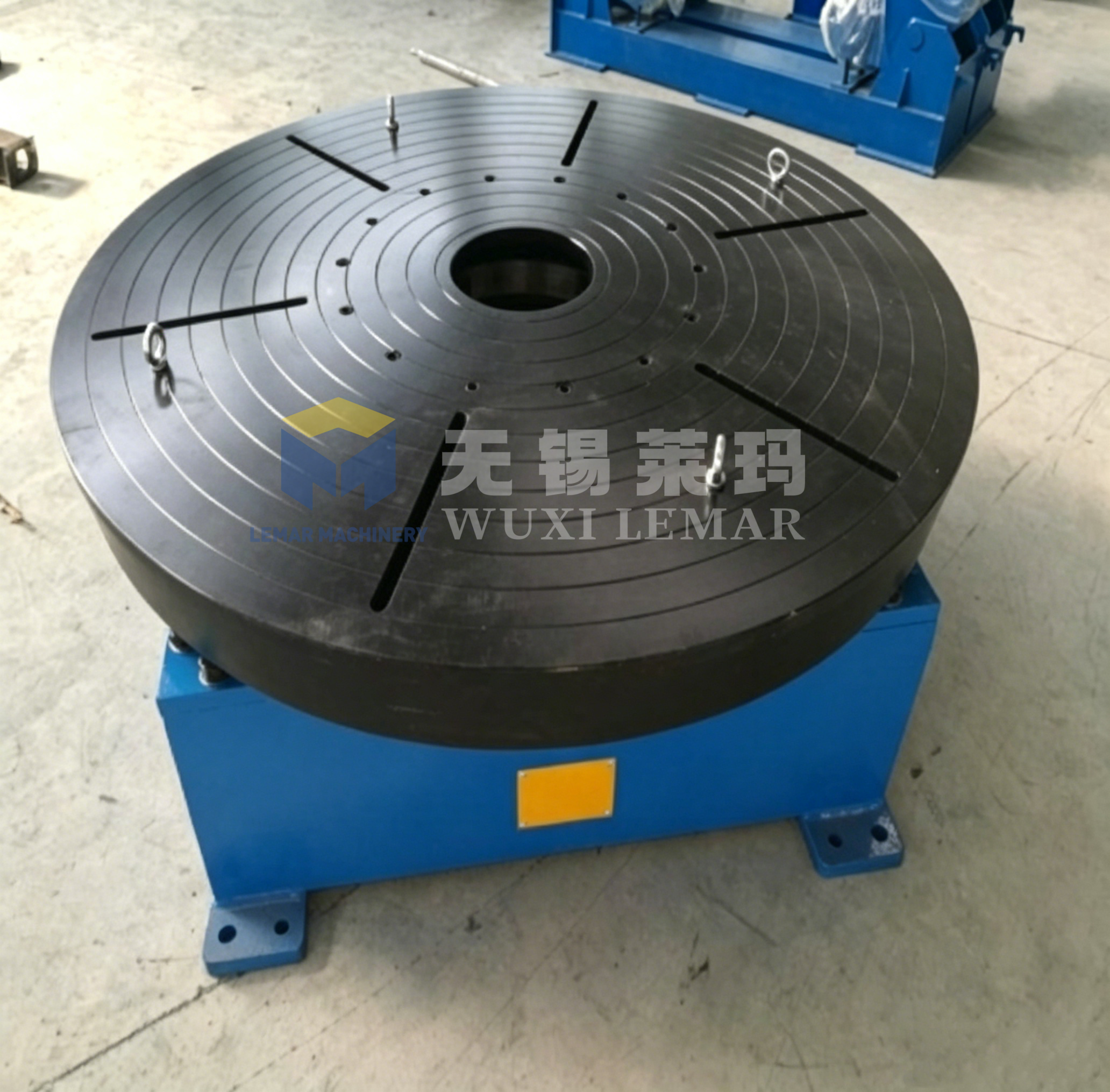

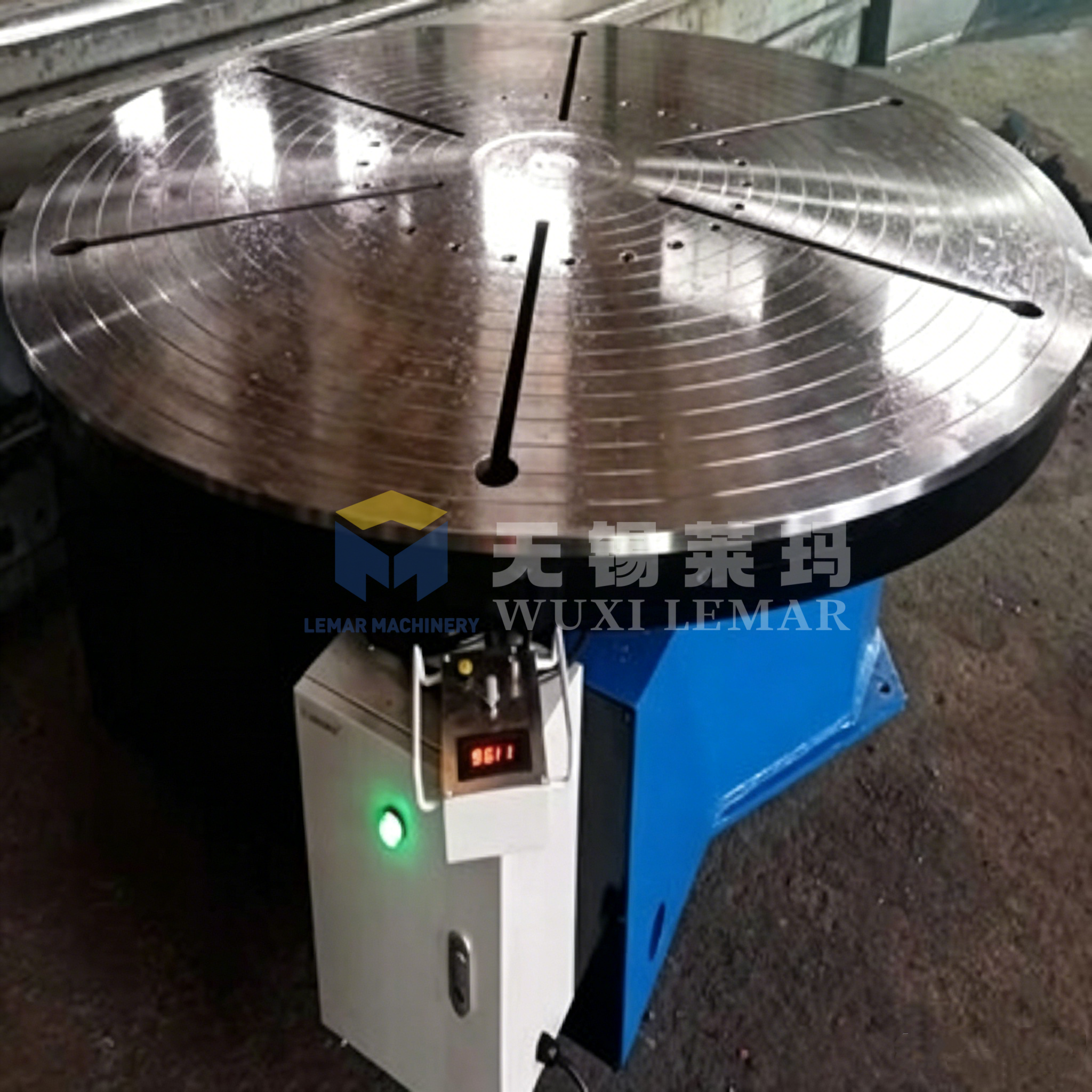

This 1 ton welding positioner is compact light-duty welding auxiliary equipment, specially designed for small workpieces, pipe flanges, stainless steel tank nozzles, small pressure vessel parts and hardware welding.

Equipped with full 360° horizontal rotation and 0-90° hydraulic tilting function, it can turn workpieces to the optimal flat welding position, greatly reducing welding difficulty and improving weld forming quality.

• Rated load 1000kg, stable bearing for small metal structural parts
• 0~360° continuous horizontal rotation, stepless variable speed
• 0~90° hydraulic tilting design, flexible adjust welding angle
• Heavy-duty solid steel worktable with standard clamping holes
• Independent electric control box with forward, reverse, stop buttons
• Low noise, smooth operation, long continuous working time
• Compact size, easy to move and install, low space occupation
• Optional foot pedal switch for hands-free operation

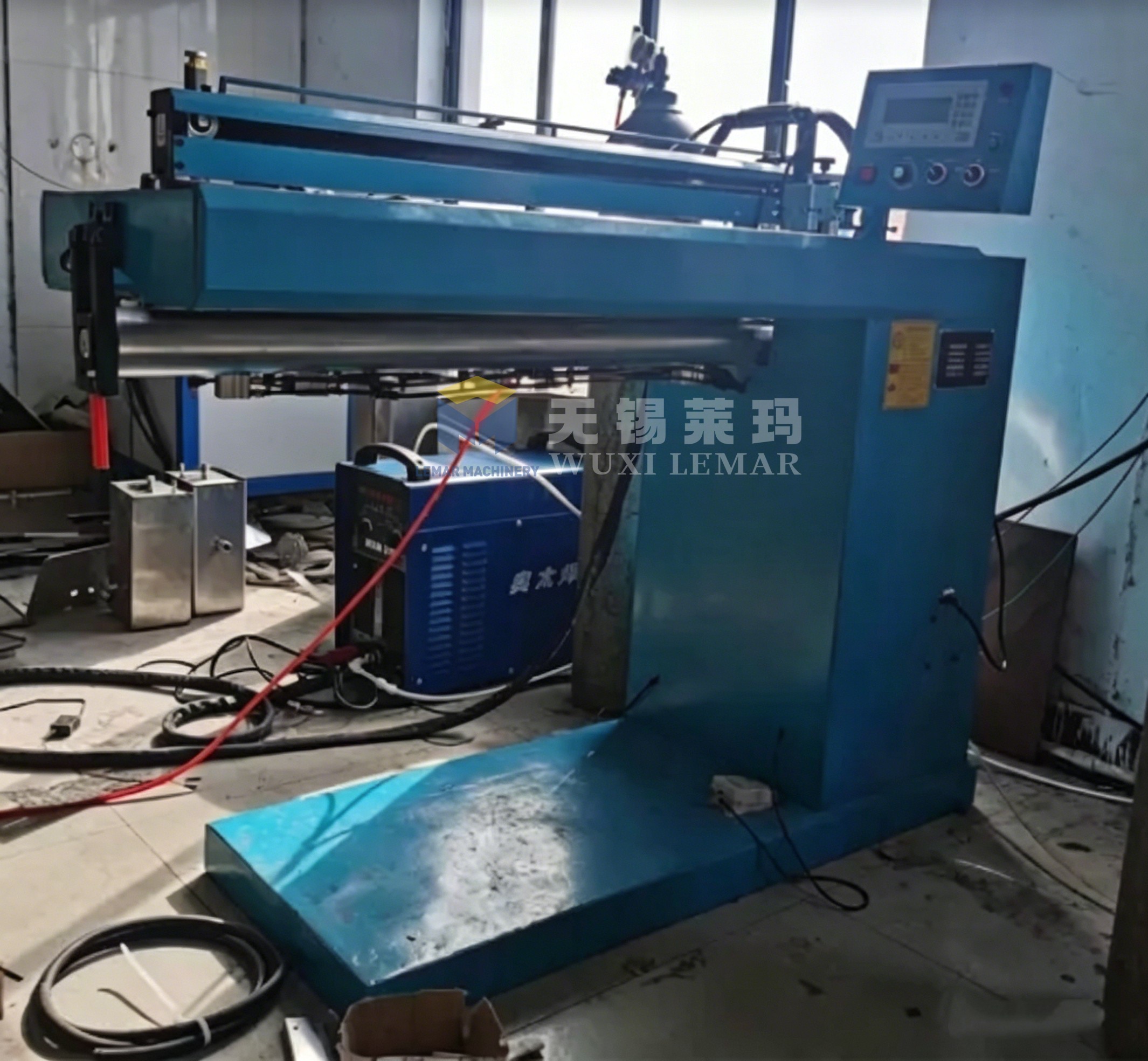

• Longitudinal seam welding machine: used together for complete stainless steel cylinder production lines

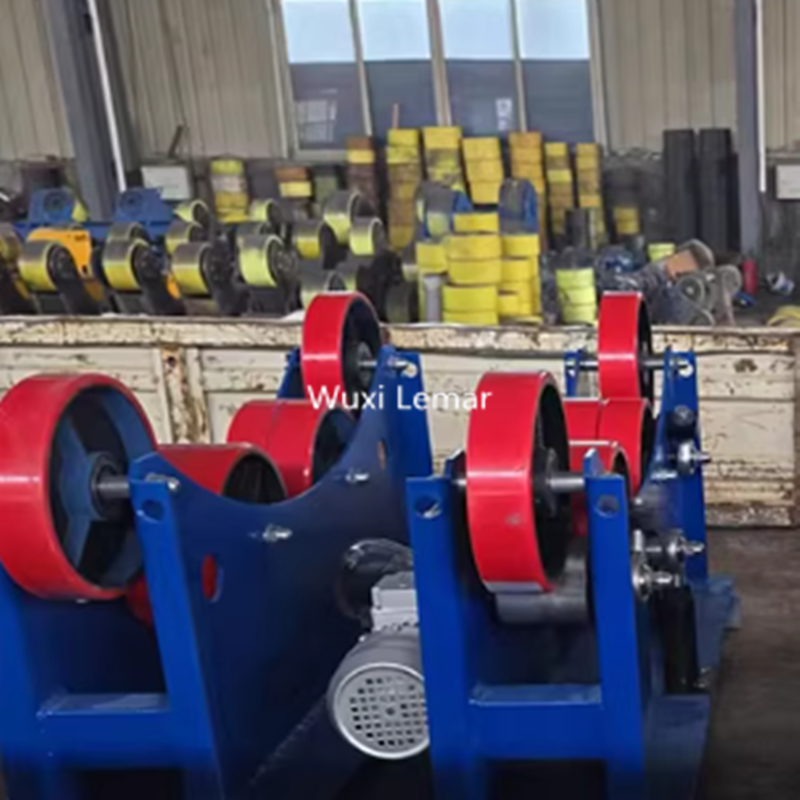

• Small adjustable welding rotator: match for girth welding of small tank bodies
• Welding torch holder bracket: fixed on positioner for automatic circular welding
• Dust removal unit: eliminate welding fume for indoor workshop working environment

• Add lubricating grease to rotation and tilting gearbox every 150 working hours
• Clean welding spatter and metal scraps on worktable surface daily after shutdown
• Check all wiring terminals of control box monthly to avoid loose contact
• Inspect hydraulic oil level of tilting cylinder every two weeks, replenish oil when insufficient
• Wipe and protect the surface paint to prevent rust in damp workshop environments

• Main body packed by plastic film, bottom fixed with wooden skid for sea transportation
• Control cabinet and spare parts separated into independent carton package to avoid collision damage
• Standard loading port: Shanghai / Ningbo, support FOB and CIF trade terms
• Complete export documents including CE certificate, operation manual and packing list
• Shipment cycle: 7-10 working days after receiving customer deposit
