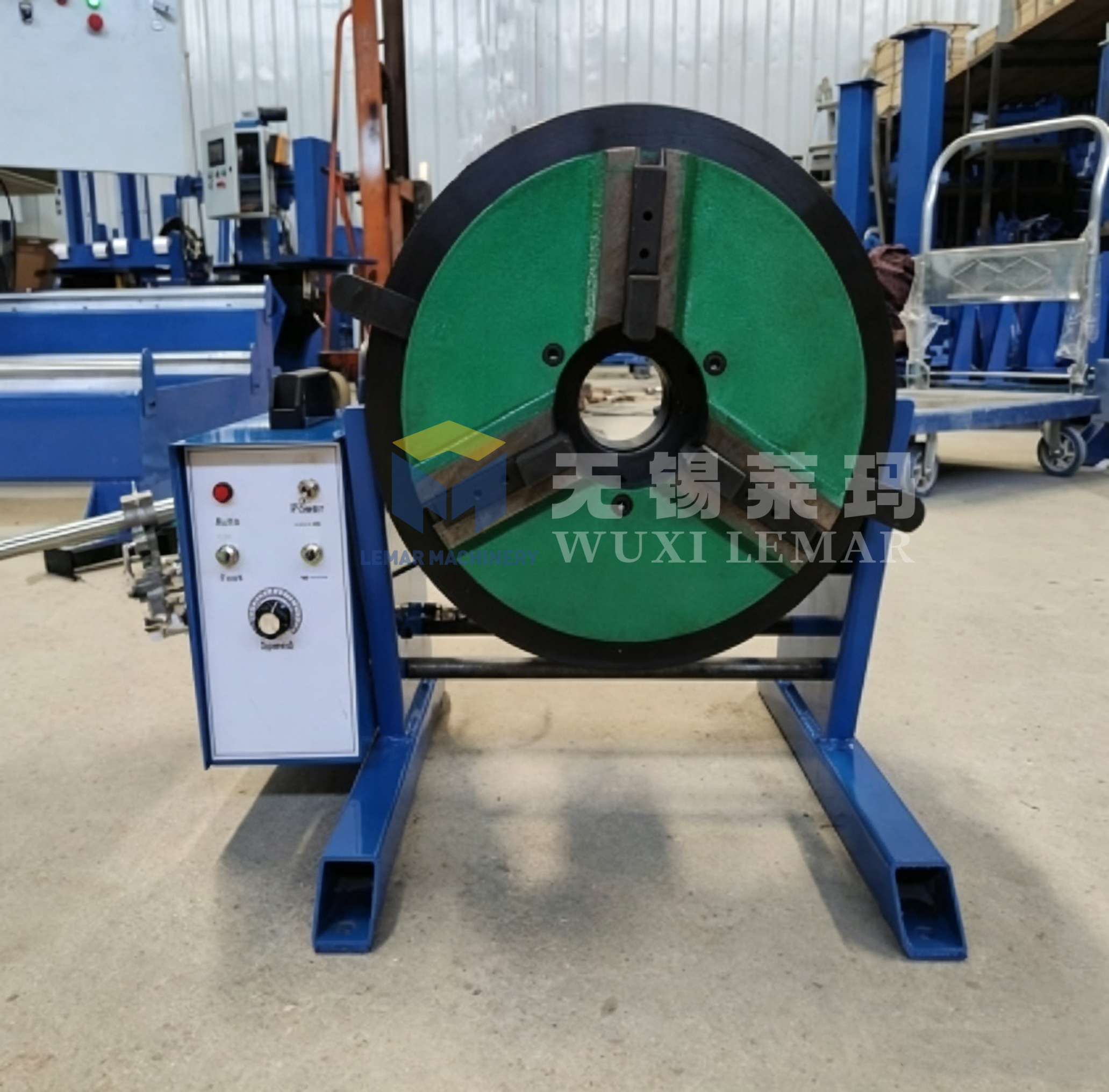

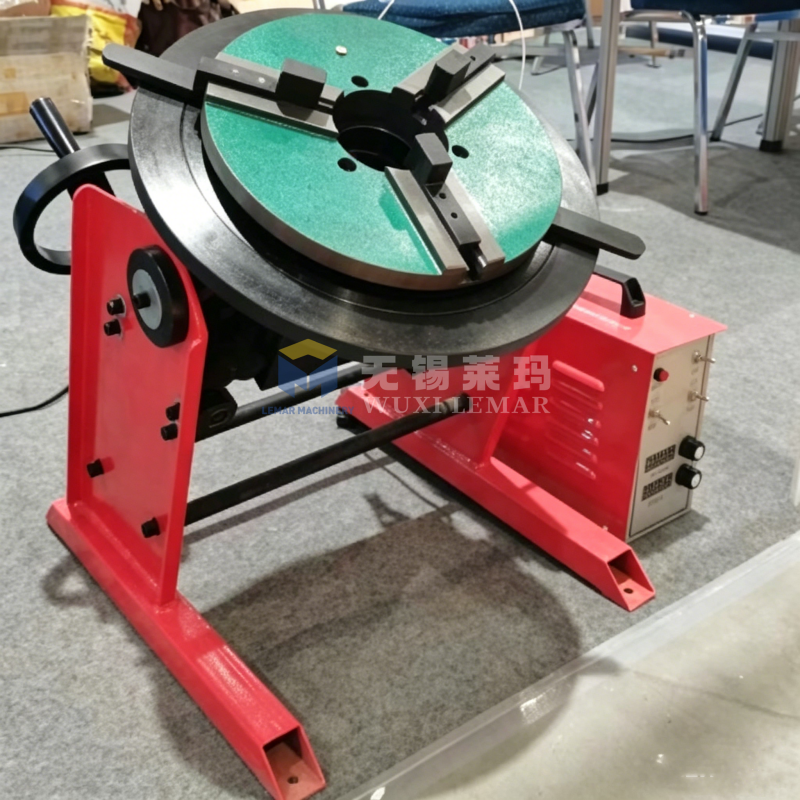

300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
Specifications
Supply Ability :
500 units/month
Control Mode :
Normal or CNC
Model Number :
BWJ-30
Flip Angle :
0-90
Payment Terms :
D/A,L/C,D/P,T/T
Max Loading Weight :
300kg(Can Customized)
Price :
500-1000USD
Turning Table Rotation Speed :
0.1-1 Rpm
Certification :
CE
Chuck :
Optional
MOQ :
1
Delivery Time :
10-20 work days
Color :
Customized
Max Eccentricity Distance :
150mm
Brand Name :
LEMAR
Model NO. :
BWJ-30
Place of Origin :
WUXI
Welding Mode :
Pipe TIG MIG Welding
Packaging Details :
73.00cm * 76.00cm * 80.00cm
Description
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
Product Overview
  • Reinforced Cast Base: Bear full 300kg workpiece weight, shock absorption design
  • High Torque Tilt Reducer: 0-90° stable self-locking tilting, no slipping under heavy load
  • Servo Rotation Drive Unit: Stepless 0.1-1rpm uniform rotation
  • Large Size Rotary Turntable: Multi-position mounting holes for various fixtures
  • Independent Digital Control Box + Foot Pedal: Separate operation for workshop convenience
  • Protective Dust Cover: Prevent welding spatter damage to internal transmission parts

300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable

Technical Specifications
Item BWJ-300 Standard Parameter
Model BWJ-300
Horizontal Rated Load 300kg
Vertical Tilt Load 150kg
Turntable Diameter Φ400mm / Φ500mm Optional
Rotation Speed 0.1-1rpm Stepless Adjustable
Tilting Range 0-90°, Custom 0-120°
Drive System High Torque RV Reducer + Servo Motor
Control Digital Controller + Foot Pedal Dual Control
Optional Accessory 3-Jaw Self-Centering Chuck, Torch Holder, Lifting Support Frame
Welding Process TIG / MIG / MAG
Input Voltage 220V Single Phase / Custom 415V 3 Phase
Certification CE, ISO
Core Parts Warranty 1 Year
MOQ 1 Set
FOB Port Wuxi / Shanghai
Core Heavy-Duty Features
  • Ultra-Rigid Cast Steel Base: Anti-deformation long-term use thick integrated casting base + reinforced rib structure, eliminate shaking under full 300kg load, no frame deformation after years of continuous production.
  • High Torque RV Reducer: Zero patchy weld seam large torque worm gear reducer with self-locking tilt function; uniform low-vibration rotation avoids uneven, patchy weld surface on thick metal workpieces.
  • Enlarged Turntable & Multi-Hole Mounting Platform: 400/500mm optional turntable with dense mounting holes, easy to fix large flanges, boiler end caps and medium storage tanks without auxiliary fixture.
  • Dual Control Mode: Foot Pedal + Digital Panel standard foot switch for hands-free welding; digital panel stores 99 groups heavy-load welding parameters, one-click recall for mass heavy workpiece processing.
  • Global Voltage Custom & Full Safety Protection: Support 220V single phase / 415V three phase for Middle East, Southeast Asia; overload, overcurrent and emergency stop safety system for heavy workshop operation.

300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable

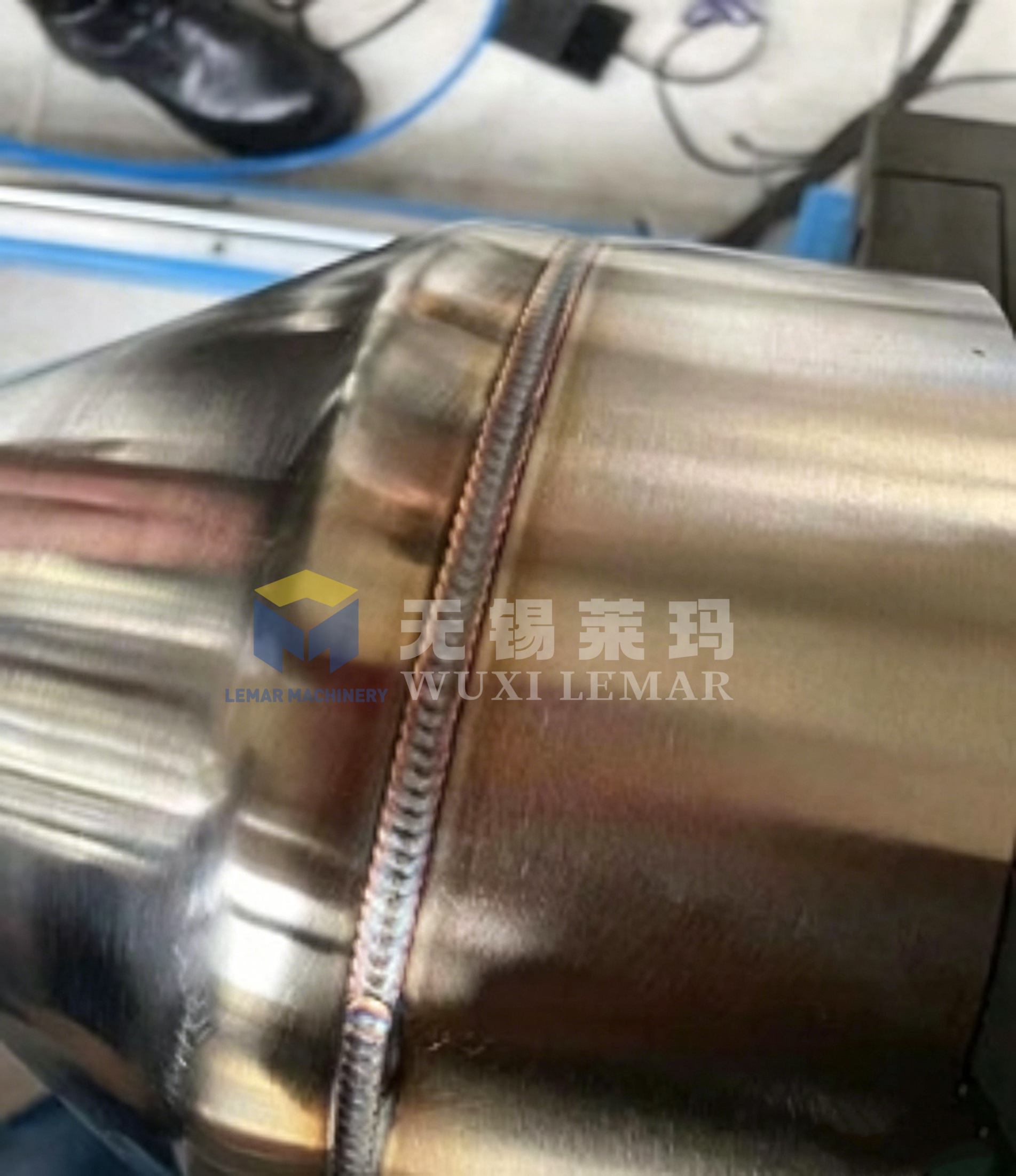

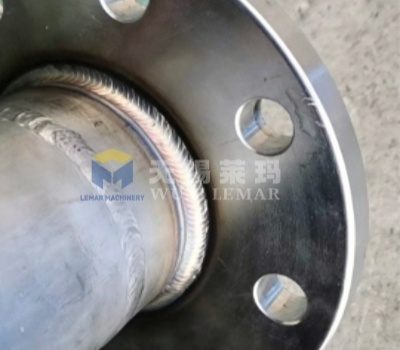

Stable Welding Effect Comparison
  • Ordinary light positioner under heavy load: Obvious vibration, patchy weld bead, uneven fusion, high reject rate
  • Our BWJ-300 heavy positioner: Smooth constant rotation, uniform full weld, no secondary polishing, reduce scrap rate by over 60%

Applicable material: Carbon steel, stainless steel, alloy steel thick-wall cylinder & flange

Heavy Workpiece Welding Workflow

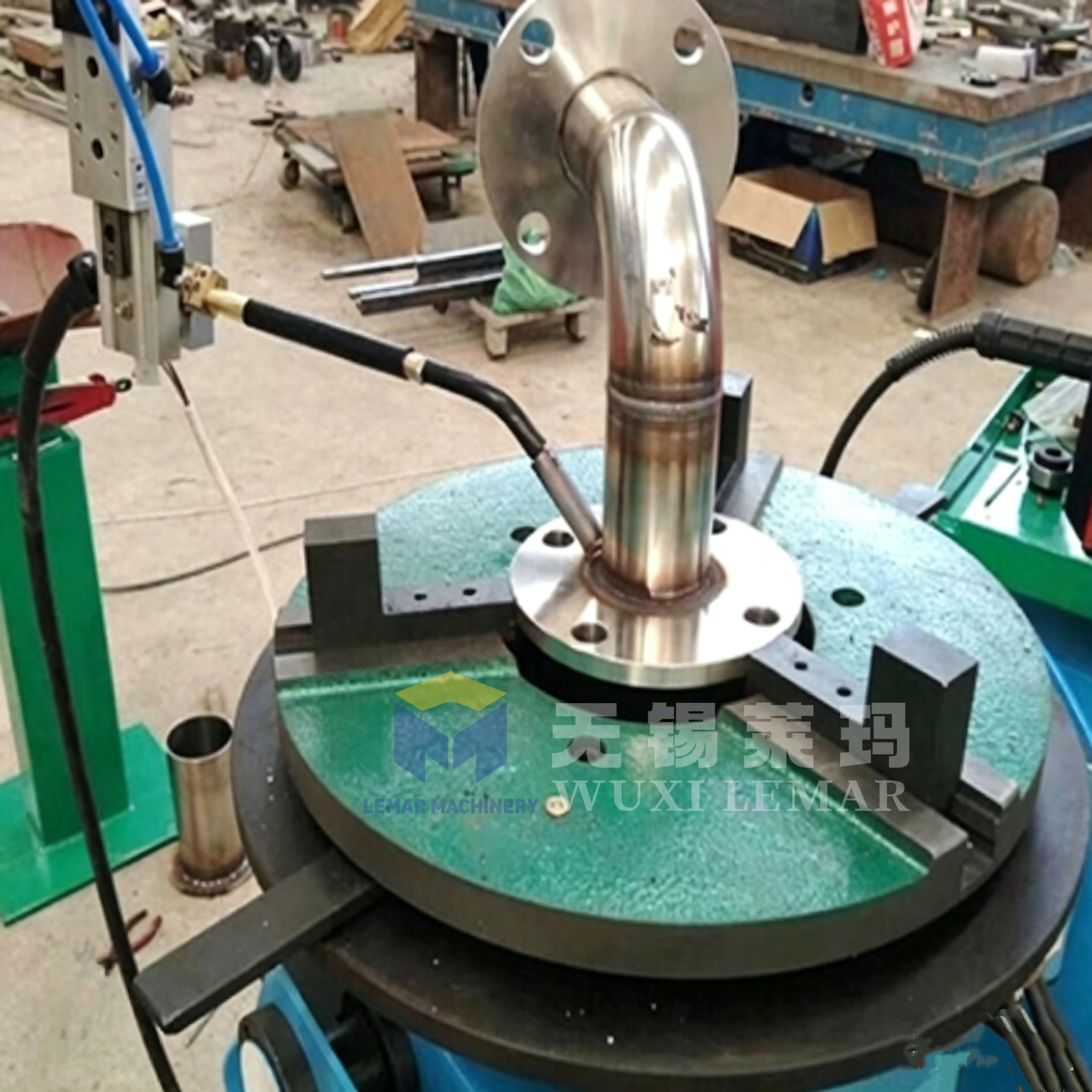

  1. Secure heavy flange/boiler barrel on large turntable via fixture or 3-jaw chuck
  2. Adjust tilting angle to 45°/horizontal for optimal welding posture
  3. Set stable rotation speed matching thick-wall welding parameter
  4. Step foot pedal to start uniform rotation, complete full circumferential weld
  5. Emergency stop button available for sudden heavy-load abnormal situation
Target Heavy Industry Applications
  • Medium pressure vessel & boiler manufacturing factory
  • Thick steel flange, pipe fitting, chemical storage cylinder workshop
  • Construction machinery, water treatment tank production line
  • Overseas engineering traders for palm oil, chemical, heating equipment production
  • 300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable300kg Light Duty Welding Positioner Vessel Flange Rotary Turntable
Frequently Asked Questions
Q1: What is the maximum horizontal load of BWJ-300 positioner? Can it bear full 300kg thick boiler barrel?
A: Rated horizontal load reaches 300kg, equipped with reinforced cast base and high torque reducer, stably support full-load thick boiler, chemical tank and large flange continuous welding.
Q2: Will thick heavy workpiece cause vibration and patchy weld seams?
A: Built-in large torque self-locking reducer and shock-absorbing base, extremely low vibration during full-load rotation, weld surface uniform without patchy uneven marks, meet pressure vessel production standards.
Q3: Can this heavy positioner coordinate with your 500mm longitudinal seam welder for complete tank production?

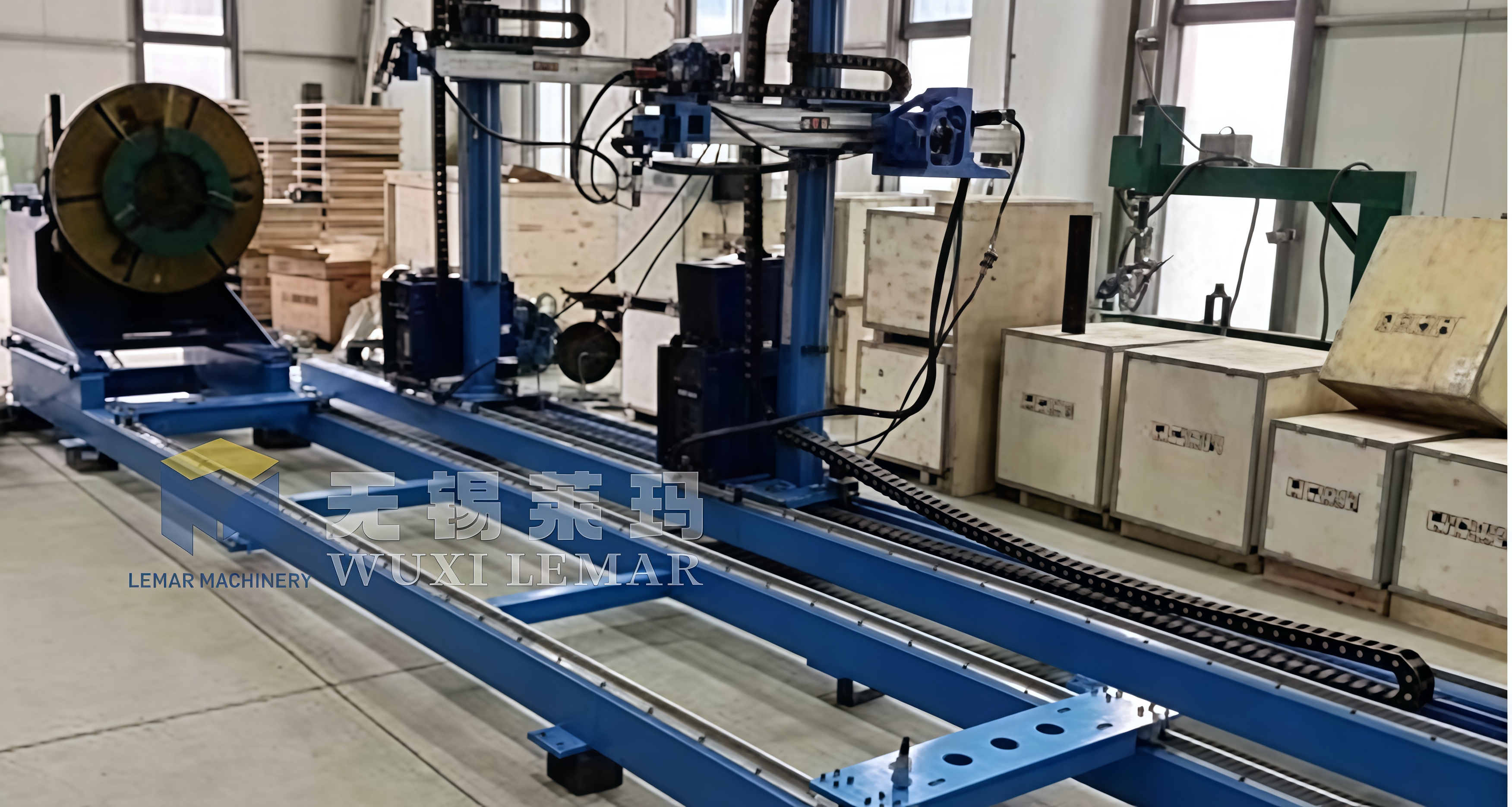

A: Perfect matching, form automatic production line for medium cylinder straight seam + circumferential welding, one-stop solution for overseas tank factories.
Q4: Can we customize three-phase 415V voltage for Middle East industrial workshop?
A: Support full voltage customization, 220V single phase standard, 415V three-phase industrial power supply optional, complete CE certificate for customs clearance in Qatar, UAE, Indonesia.
Q5: Does the machine have overload protection for heavy workpieces?
A: Equipped with overload, overcurrent and emergency stop triple safety protection, automatically cut power to avoid motor and gearbox damage under abnormal heavy load.
Q6: How long is the warranty of core heavy-load transmission parts?
A: Servo motor, RV reducer and digital control box enjoy 1-year free warranty, lifelong online technical guidance and spare parts supply.
