Specifications
Supply Ability :
500 units/month
Customization Capabilities :
Supports Customization/MultipleUnits Splicing
Model Number :
D28
Countertop Material :
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Certification :
CE
Model NO :
D28
MOQ :
1
Delivery Time :
15-25 work days
Exporting Country :
The Whole World
Diameter :
28mm
Payment Terms :
D/A,L/C,D/P,T/T
Flatness :
≤0.1mm/1000mm
Price :
500USD-1500USD
Payment Currency :
Dollar
Place of Origin :
WUXI,CHINA
Verticality :
≤0.1mm/200mm
Packaging Details :
4000mm*2000mm*300mm
Brand Name :
WUXI LEMAR
Thickness :
25mm
Description
Workshop Grade CNC D28 Flexible 3D Welding Position Work Table

The Workshop Grade CNC D28 Flexible 3D Welding Position Work Table is a high-precision positioning solution tailored for modern welding workshops. Processed by strict CNC machining technology, this D28 welding table delivers outstanding surface flatness and hole position accuracy. Its flexible 3D hole layout enables fast assembly of various jigs and clamps. Built for continuous-shift workshop environments, this work table minimizes fixture setup time, guarantees stable positioning accuracy for different workpieces, and greatly improves welding consistency and overall workshop productivity.

Workshop Grade CNC D28 Flexible 3D Welding Position Work Table
Product Parameters
Workshop Grade CNC D28 Flexible 3D Welding Position Work Table
Parameter Specification
Grid System D28 - 28mm holes on 100mm centers

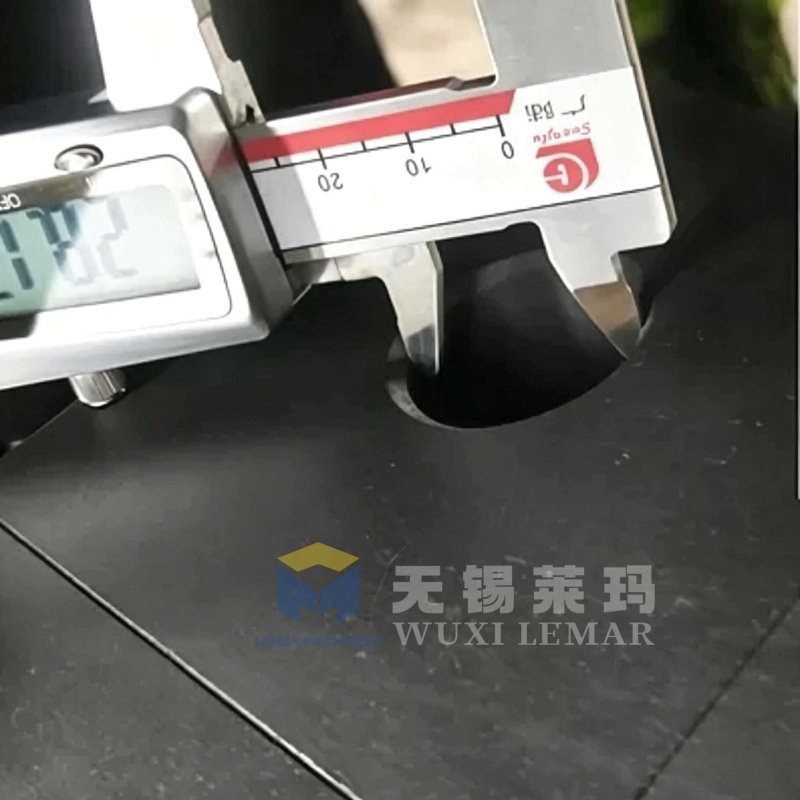

Hole Tolerance H7 precision
Tabletop Material HT300 gray cast iron / Q355 steel
Tabletop Thickness 100mm
Surface Treatment Nitrided (HV ≥ 600)
Flatness Tolerance ±0.1mm per m²
Static Load Capacity 5,000 kg per table
Standard Sizes 1500×1000, 2000×1000, 3000×1500mm
Leg Height 850mm (custom heights available)
Leg Construction 80×80mm square tube, 5mm wall
Leveling Feet M24 threaded, 50mm pad
Product Sizes
System Material Size(mm) Weight(kg)
D28/D16 HT300 cast iron/Q355 steel 1000*1000*200/150 300
D28/D16 HT300 cast iron/Q355 steel 1000*2000*200/150 520
D28/D16 HT300 cast iron/Q355 steel 1200*1200*200/150 400
D28/D16 HT300 cast iron/Q355 steel 1200*2400*200/150 800
D28/D16 HT300 cast iron/Q355 steel 1500*1000*200/150 420
D28/D16 HT300 cast iron/Q355 steel 1500*1500*200/150 600
D28/D16 HT300 cast iron/Q355 steel 1500*2000*200/150 800
D28/D16 HT300 cast iron/Q355 steel 1500*3000*200/150 1150
D28/D16 HT300 cast iron/Q355 steel 2000*3000*200/150 1500
D28/D16 HT300 cast iron/Q355 steel 2000*4000*200/150 2100
Product Advantages
Workshop Grade CNC D28 Flexible 3D Welding Position Work Table
  • High-precision CNC machining ensures strict flatness and hole positional accuracy for reliable workpiece positioning.
  • Standard D28 hole system supports flexible combination of clamps and jigs to realize rapid fixture replacement.
  • Heavy-duty steel structure bears heavy workpiece load and effectively avoids deformation under long-term workshop use.
  • 3D multi-direction positioning surface adapts to complex multi-angle welding and assembly operation demands.
  • Optimized workshop-grade design fits non-stop shift work, lowering failure rate and reducing daily maintenance workload.
  • Modular expandable structure allows users to extend working area according to actual production scale.

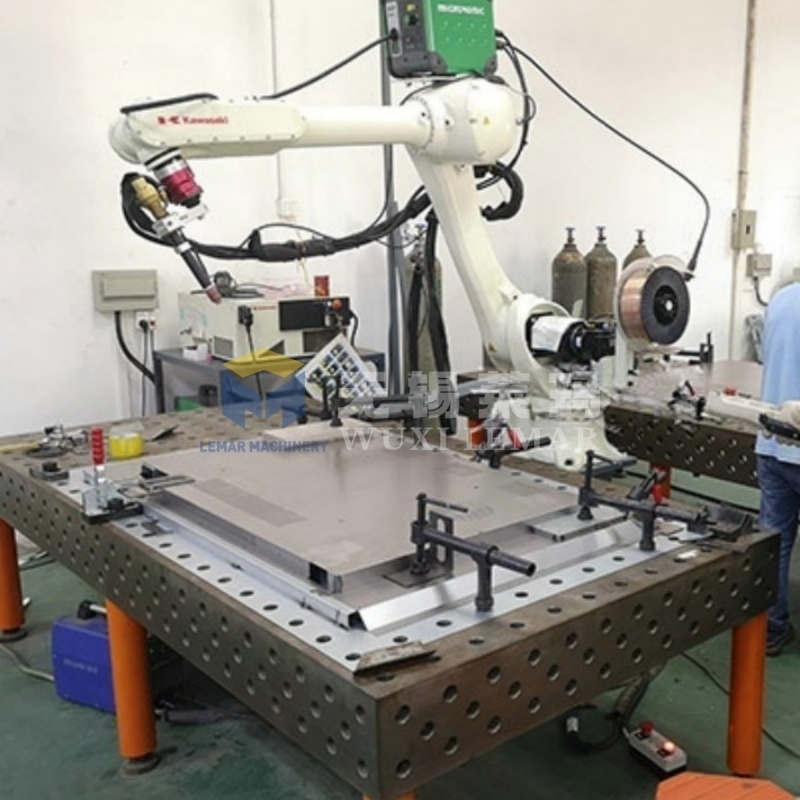

Product Applications
Workshop Grade CNC D28 Flexible 3D Welding Position Work Table

This CNC D28 flexible 3D welding position work table is widely used in metal fabrication workshops. It covers machinery component welding, auto accessory processing, engineering machinery manufacturing, steel structure production, prototype trial assembly and hardware batch processing. It suits small-batch prototype work as well as medium-volume mass production for factory workshops and processing sites.

  • Precision fabrication welding for automotive metal frame and structural components
  • Custom metal part manufacturing for engineering machinery workshops
  • Assembly welding of electrical cabinets, equipment chassis and metal housings
  • High-accuracy welding work for stainless steel frames and pipe structure assemblies
  • Heavy-duty component processing for ship supporting metal parts
  • Small-batch and multi-variant precise metal welding fabrication projects
Frequently Asked Questions
Can I use third-party jigs on this CNC D28 welding work table?
Yes. Adopting universal D28 standard hole system, it is compatible with most mainstream clamps and positioning jigs on the market.
What tolerance level can the CNC machined surface maintain?
The table keeps high flatness after CNC machining. Specific tolerance data can be provided together with your ordered table size.
Does this welding position work table support size customization?
Custom dimensions are available. Please share your target size and maximum load requirement for our technical assessment.
Are supporting clamps included in this table order?
Only the main table body is contained in this standard offer. Matching clamps and accessories can be ordered separately.
How to protect the CNC machined surface during daily welding work?
Clear welding spatter in time after operation. Avoid heavy violent impact to preserve original positioning precision.
What kind of workpiece weight can this work table handle?
Actual load capacity is decided by table overall dimension. Send us your working condition so we can give professional reference data.
