Specifications
Brand Name :
YHDAA
Model Number :
YHD-9100D
Certification :
CE,FCC,ROHS,IP54,FDA,SGS
Payment Terms :
T/T, D/P, D/A, Western Union, L/C, MoneyGram
Packaging Details :
YHD-9100D 2D Desktop Barcode Scanner Standard List : Desktop Scanner*1, USB Cable *1, Manual *1, Box *1
Type :
2D Desktop Barcode Scanner
Optical resolution :
640*480
Lighting source :
red LED supplement
Scanning speed :
2200 times/s
Size :
110mm*150mm*110mm
Drop test :
2m
Description

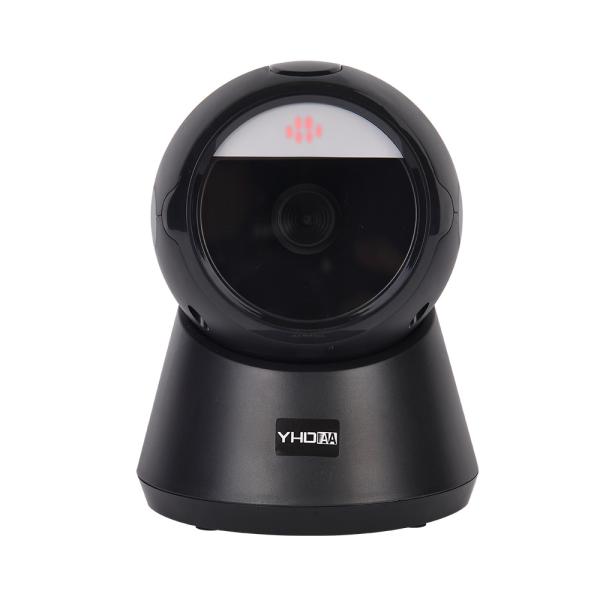

CMOS Desktop Omni Directional Barcode Reader Automatic 2200 Times/s YHD-9100D

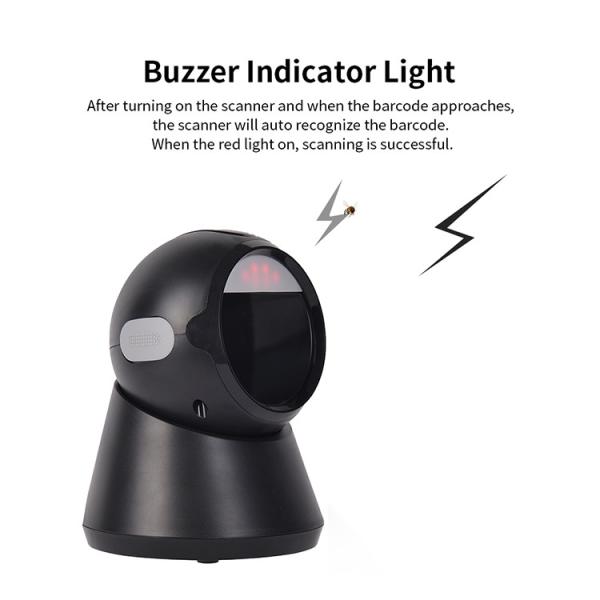

YHD-9100D Desktop barcode scanner is equiped with high precision scanning head, supports auto-sensing scanning, barcode recognition more intelligent. Automatically sleep and wake up, when the barcode scanner is not be used for a while, it will be into a sleeping mode. Once the barcode close to window it will be automatically scanned and LED indicate operating condition.

Features

● Desktop mounted, easy to use.

● 32Bit CPU, Super decoding ability, support multiple languages.

● Wired scanning platform free your hand and improve the working efficiency.

● Compatible System - Windows, Mac OS, POS Cash Register, Linux.

● Plug and play, plug into a standard USB port and start your scan, no drivers required

● Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.

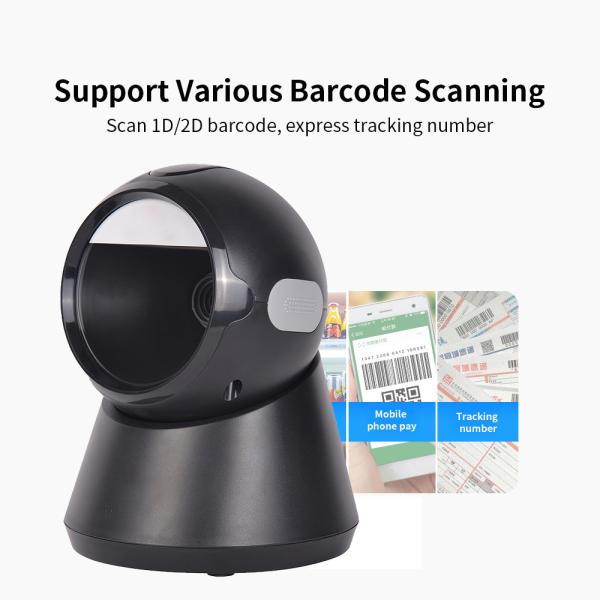

● Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.

● Desktop Hand-Free Design, auto sense ,when the scanner reaches the barcode ,it will

automatically decoding the barcode.

Technical parameters

Optical resolution : 640*480

Lighting source : red LED supplement

Scanning speed : 2200 times/s

Scanning angle : rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees

Sweeping barcode type paper, thin film medium one-dimensional; mobile phone, flat screen, etc.

Printing contrast : 20%

Error rate : ≤1/2,000,000

Interface type : USB:HID Keyboard(default mode), USB virtual serial port

IP level : up to IP5X standard

Prompt mode : buzzer sound prompt and green light prompt

Decoding Capability 1D : Code 39,Full ASCII Code 39,Code 32,Code 128,Code 93,Code 11,Codabar/NW7,All UPC/EAN/JAN code (EAN-13,EAN-8,UPC-A,UPC-E, EAN-128),Interleave 2 of 5,STD 2of 5,Industrial 2 of 5,matrix 2 of 5,Chinese Postage Code,IATA,MSI/PLESSY,Italian Pharmacy Code,Industrial 2 of 5,BC-412, etc.

2D:QR Code,Data Matrix,PDF417,Aztec code,Maxicode,etc.

Electric voltage : 5V DC

Working current : 390mA(Max.),220mA(Typical)

Optical safety certification : ICE42471,IEC60950

Electromagnetic compatibility : EN55022,EN55024

Size : 110mm*150mm*110mm

Cable length : 2m

Weight : 450g

Working temperature : -20℃～60℃

Storage temperature : -20℃～70℃

Working humidity : 0%～80%

Drop test : 2m

Packaging Details

Standard List: Desktop Scanner*1, Cable *1, Manual *1, Box *1.

Single Package Size: 185*125*130mm

Single Gross Weight: 0.53kg

30pcs/CTN Carton Size: 390*390*675mm

30pcs/CTN Carton G.W.:17Kg, N.W:15Kg
