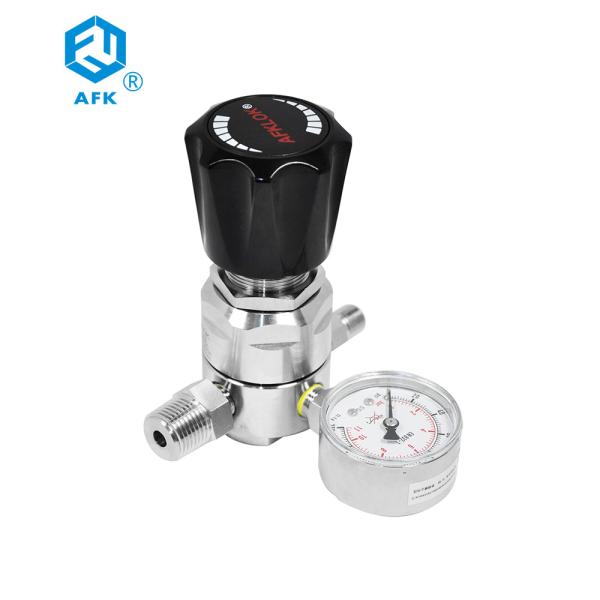

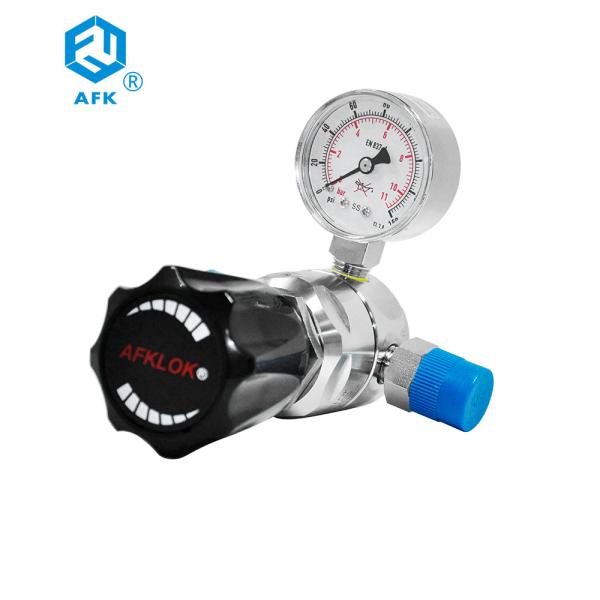

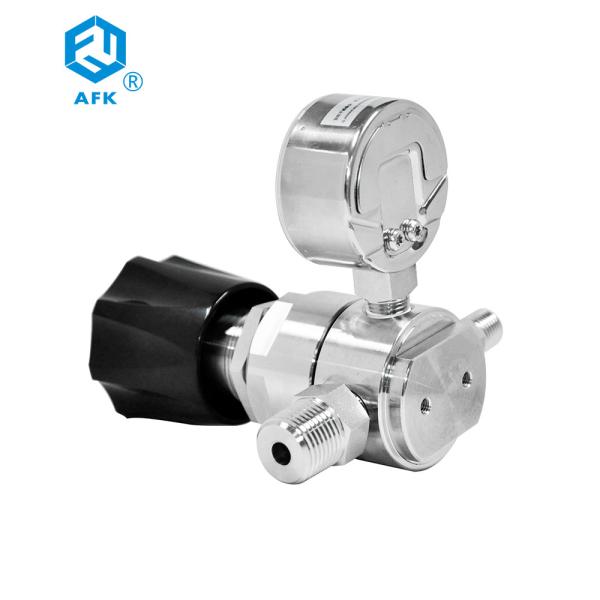

316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color
Specifications
Brand Name :
AFK
Model Number :
R11
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
20Day
Packaging Details :
Expotrt Packing
After-sales service provided :
Online support
Condition :
New
Material :
Stainless Steel,316
Warranty :
1 Year
Application :
Industry
Color :
Silver
Key words :
Single-stage Diaphragm N2O Gas Pressure Regulator
CV :
0.08
Description

AFK R11 Stainless Steel 316 Single-stage Diaphragm N2O Gas Pressure Regulator

Description of Stainless Steel N2O Gas Pressure Regulator

R11 stainless steel single-stage pressure reducer 0-160psi, inlet and outlet connected external tooth joint.It has piston pressure reducing structure, constant outlet pressure,mainly used for high input pressure,suitable for purified gas, standard gas, corrosive gas etc.

Technical Data of pressure regulator
1 Max inlet pressure 500, 3000 psi
2 Outlet pressure 0~25, 0~50, 0~100, 0~250, 0~500 psi
3 Proof pressure 1.5 times of maximum rated pressure
4 Working temperature -40°F-+165°F(-40°C-+74°C)
5 Leakage rate 2*10-8 atm cc/sec He
6 Cv 0.08

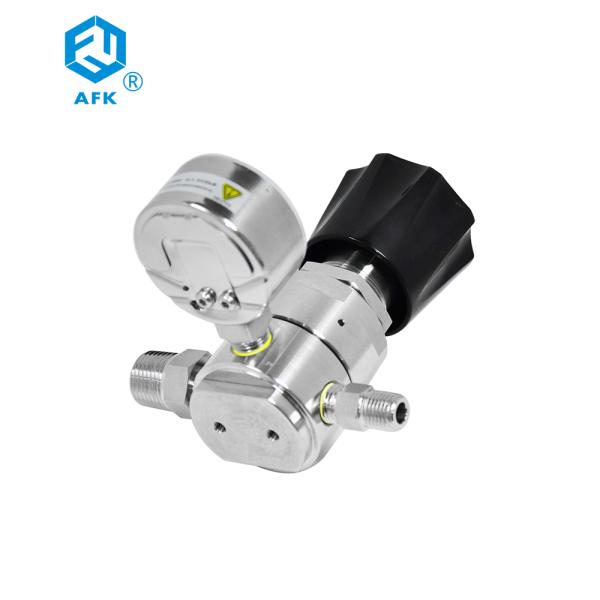

316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color

Ordering Information--300 bar regulator

R11

L

B

B

D

G

00

02

P

Item

Body Material

Body Hole

Inlet Pressure

Outlet
Pressure

Pressure Guage

Inlet
size

Outlet
size

Mark

R11

L:316

A

D:3000 psi

F:0-500psig

G:Mpa guage

00:1/4″NPT(F)

00:1/4″NPT(F)

P:Panel mounting

B:Brass

B

E:2200 psi

G:0-250psig

P:Psig/Bar Guage

01:1/4″NPT(M)

01:1/4″NPT(M)

R:With relief valve

D

F:500 psi

K:0-50pisg

W:No guage

23:CGGA330

10:1/8″ OD

N:Needle calve

G

L:0-25psig

24:CGGA350

11:1/4″ OD

D:Diaphregm valve

J

27:CGGA580

12:3/8″ OD

M

28:CGGA660

15:6mm OD

30:CGGA590

16:8mm OD

52:G5/8″-RH(F)

63:W21.8-14H(F)

64:W21.8-14LH(F)

Main Features of 6000PSI pressure regulator

1 Single -stage reduce Structure
2 Use hard-seal between body and diaphragm
3 Body Thread : 1/4" NPT ( F )
4 Easy to sweep inside body
5 Filter mesh inside
6 Panel mountable or wall mounted

Typical applications of Stainless Steel Regulator

1 Laboratory
2 Gas Chromatograph
3 Gas Laser
4 Gas bus
5 Oil and chemical industry
6 Tested instrumentation

RFQ

Q: Are you trading company or manufacturer?

A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.

Q. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q. Do you have any MOQ limit ?

A: Low MOQ 1 pic.
