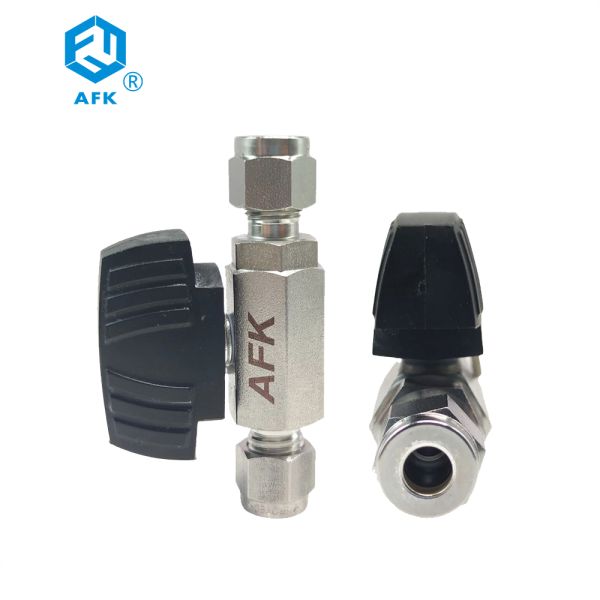

Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Specifications
Brand Name :
AFK
Model Number :
BV
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Material :
Stainless Steel
Port size :
Standard
Pressure :
1000psi
Standard or nonstandard :
Standard
Media :
Water,Gas,Oil
Application :
General
Size :
1/4"~3/4"
Color :
Silver
Body material :
Stainless Steel
Valve type :
2 way
Description

Low Pressure Stainless Steel 1000 Psi 316 Double Ferrule Forged Compression Ball Valve

Instrument Ball Valve

2PC Ball Valve-1000PSIG
Characteristics
Black handle with arrow indicates flow direction
End connection available with AFK tube end,BSPT or NPT male thread
Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged
Features Low Pressure Ball Valve
1 two pieces cold drawn bar body
2 body material stainless steel SS316/316L
3 Max. allowed working pressure 1000psig (69bar)
4 with Fluororubber O-ring and PTFE packing
5 100% factory tested

Low Pressure 1000 PSI 2 Piece Stainless Steel Ball Valve 316 Double Ferrule Forged

Features of Ball Valve
Item part descrption Qty. Material
1 handle 1 nylon
2 Locking Nut 1 SS304
3 Spring washer 1 SS304
4 washer 2 SS304
5 gland packing 2 PTFE
6 stem 1 SS316/316L
7 body 1 SS316/316L
8 ball 1 SS316/316L
9 seat 2 PTFE
10 body o-ring 1 Fluororubber
11 end cap 1 SS316/316L
Ordering Information
C- 2 BV- S6- 02 A- 1P
classification product type Vavle type material size(fractional) size(metric) connection type Max.working pressure
C:valve 2:2PC BV:2 way ball valve S6:SS316 04:1/4" 6:6mm A:AFK tube end 1P:1000Psi
S6L:SS316L 06:3/8" 8:8mm
08:1/2" 10:10mm
012:3/4" 12:12mm
18:18mm
