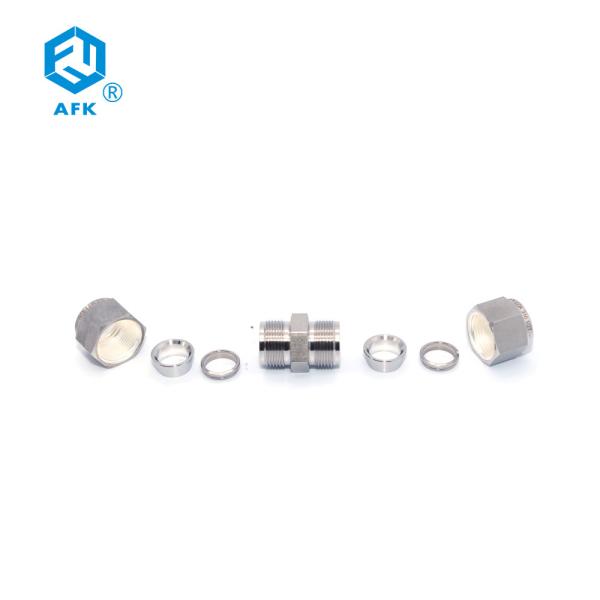

1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
1/2 Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
Specifications
Brand Name :
AFK
Model Number :
AFK
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
Material :
Stainless Steel
Head code :
Hexagon
Connection :
OD
Technics :
Forged
Type :
Coupling
Medium :
Gas
Name :
Stainless Steel Tube Fittings
Warranty :
1 Year
Description

Product Name: union

Model: U

Connection :OD, Double Ferrule

Head Code: Hexagon

Working Pressure: 3000PS

Connects Fractional(inch) Tube

Part No.

TubeOD

T

 Dimensions (mm)

E

Min.

 h H F I L
Inch mm inch mm Inch mm
U-01 1/16 1.58 1.3 5/16 7.93 5/16 7.93 8.6 17.5 25.1
U-02 1/8 3.17 2.3 7/16 11.11 7/16 11.11 12.7 22.4 35.6
U-03 3/16 4.76 3.0 7/16 11.11 1/2 12.70 12.7 24.1 37.3
U-04 1/4 6.35 4.8 1/2 12.70 9/16 14.28 15.2 26.2 40.9
U-05 5/16 7.93 6.4 9/16 14.28 5/8 16.87 16.3 28.2 42.9
U-06 3/8 9.52 7.1 5/8 15.87 11/16 17.46 16.8 30.2 45.0
U-08 1/2 12.70 10.4 13/16 20.63 7/8 22.22 22.9 31.0 51.3
U-10 5/8 15.87 12.7 15/16 23.81 1 25.40 24.4 31.8 52.1
U-12 3/4 19.05 15.7 1-1/16 26.98 1-1/8 28.57 24.4 33,3 53.6
U-14 7/8 22.22 18.3 1-3/16 30.16 1-1/4 31.75 25.9 35.1 55.4
U-16 1 25.40 22.4 1-3/8 34.92 1-1/2 38.10 31.2 40.4 64.8
U-20 1-1/4 31.75 27.7 1-3/4 44.45 1-7/8 47.63 41.1 48.0 92.2
U-24 1-1/2 38.10 34.0 2-1/8 53.97 2-1/4 57.15 50.0 53.6 108.0
U-32 2 50.80 46.0 234 69.85 3 76.20 67.6 74.7 149.4

Connects Metric Tube

Part No.

Tube OD

T

 Dimensions (mm)

E

Min.

 h H F I L
mm inch mm
U-M02 2 1.7 11.11 11.11 12.9 22.4 35£
U-M03 3 2.4 11.11 11.11 12.9 22.1 35.3
U-M04 4 2.4 11.11 1270 13.7 24.1 37.3
U-M06 6 4.8 12.70 14.28 15.3 26.2 41.0
U-M08 8 6.4 14.28 15.87 162 282 43.2
U-M10 10 7.9 17.46 19.05 172 31.0 46.2
U-M12 12 9.5 20.63 22.22 22.8 31.0 51.2
U-M14 14 11.1 23.81 26.40 24.4 31.8 52.0
U-M15 15 11.9 23.81 25.40 24.4 31.8 52.0
U-M16 16 12.7 23.81 25.40 24.4 31.8 52.0
U-M18 18 15.1 26.98 30.16 24.4 33.3 53.5
UW22 22 18.3 30.16 31.75 26.0 34.8 55.0
U-M25 25 21.8 34.92 38.10 31.3 40.4 65.0
U-M28 28 21.8 44«45 47.63 36£ 43.4 85.0
U-M30 30 26.2 44/15 50.80 39.6 49.5 92.7
U-M32 32 28.6 4445 50.80 42.0 51.3 97.3
U-M38 38 33.7 55.56 57.15 49.4 58.4 114.0

1/2

1/2

1/2 1/2

FAQ

Q1. What products can you provide?

Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.

Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?

Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.

Q3. What about the quality and price?

Re: Quality is very good. Price is not low but pretty reasonable at this quality level.

Q4. Can you provide samples to test? For free?

Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.

Q5. Can you operate OEM orders?

Re: Yes, OEM is supported though we also have our own brand named AFK.

Q6. What payment methods for chose?

Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.

Q7. How about the lead time?

Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.

Q8. How will you ship the goods?

Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
