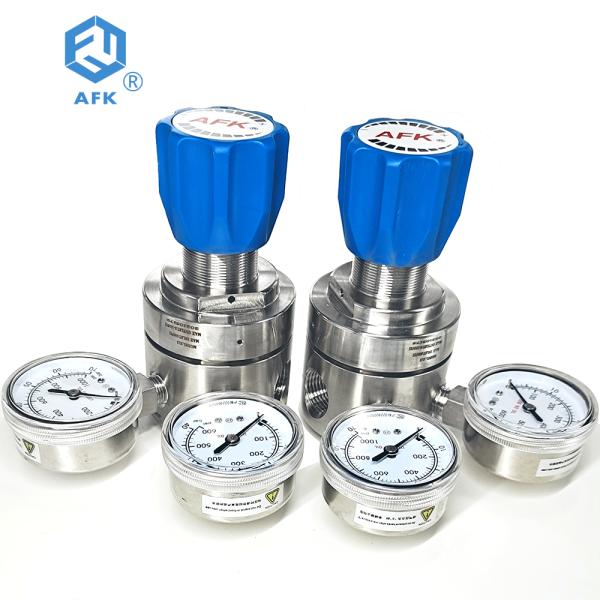

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges
Specifications
Brand Name :
AFK
Model Number :
R12
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PC
Delivery Time :
1WEEK
Packaging Details :
Expotrt Packing
CV :
1.1
Body :
316L , Brass
Working tem :
-40℉~+446℉(-40℃~+230℃)
Material :
Stainless Steel,316
Warranty :
1 Year
Seat :
PCTFE , PTFE , Vespel
After-sales service provided :
Online support
Pressure :
Medium Pressure
Connection :
Threaded
Media :
Gas
Description

Prudcut Description

R12 Series stainless steel pressure reducers , single-stage diaphragm construction , stainless steel diaphragm pressure transmission , stable output pressure , applied to medium flow gas system.

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

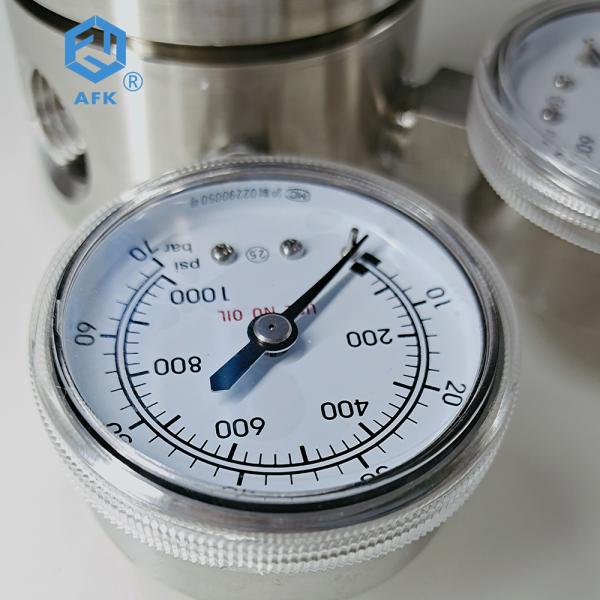

Inlet pressure gauge

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

Outlet pressure gauge

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

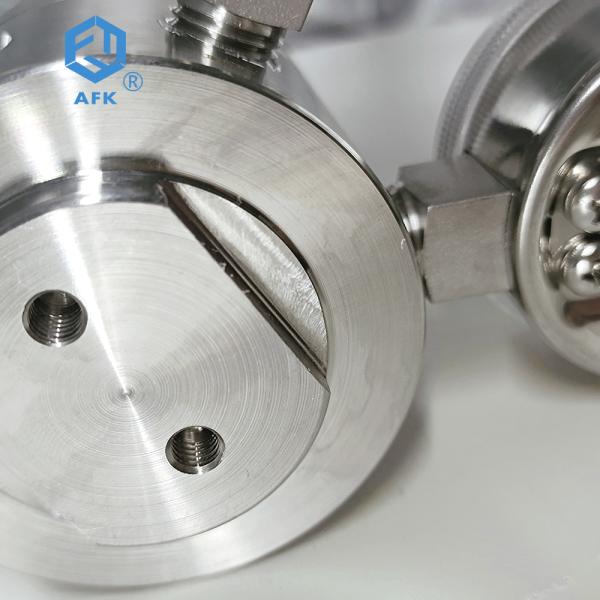

Bottom details

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

Side details

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

Design Features Typical Applications

single-stage pressure-reducing structure

metal-to-metal diaphragm seal

body thread:1/2 " NPT(F)

pressure gauge , safety valce interdace 1/4" NPT(F)

filter element installed internally

panel mounting and wall mounting available

laboratory

gas purge system

corrosive gas , special gas

gas bus-bar

testing equipment
Speciffcation Material

maximum inlet pressure:500 , 3000psi

output pressure:0~25 , 0~50 , 0~100 , 0~125 , 0~250psig

safety testing pressure:1.5times of maximum inlet pressure

working tem:-40℉~+446℉(-40℃~+230℃)

internal leakage rate:2*10-8 atm cc/sec He

Cv:1.1

bady:316L , brass

bonnet:316L , brass

diaphragm:316L

strainer:316L (10um)

seat:PCTFE , PTFE , Vespel

spring:316L

valve stem:316L

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

Ordering Information

R12 L B B D G 00 02 P
Item Body Material Body Hole Inlet Pressure

Outlet

Pressure

 Pressure Guage

Inlet

size

Outlet

size

 Mark
R12 L:316 A D:3000 psi H:0-125psig G:Mpa guage 02:3/8″NPT(F) 02:3/8″NPT(F) P:Panel mounting
B:Brass B F:500 psi I:0-100psig P:Psig/Bar Guage 03:3/8″NPT(M) 03:3/8″NPT(M) R:With relief valve
D K:0-50pisg W:No guage 04:1/2″NPT(F) 04:1/2″NPT(F)
G L:0-25psig 04:1/2″NPT(M) 04:1/2″NPT(M)
J 12:3/8″ OD 12:3/8″ OD
M 13:1/2″ OD 13:1/2″ OD
Other type is available Other type is available
