Specifications
Brand Name :
AFK
Model Number :
R11
Certification :
CE
Place of Origin :
China
MOQ :
1~10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PC
Delivery Time :
15Day
Packaging Details :
Expotrt Packing
Inlet pressure gauge :
25Mpa
outlet pressure gauge :
1.6Mpa
Material :
Stainless Steel
Warranty :
1 Year
Application :
Industry Equipment
Product name :
R11 Stainless Steel 316 Inlet CGA540 Oxygen And Nitrogen Pressure Regulator
Key words :
Oxygen And Nitrogen Pressure Regulator
Inlet connection :
CGA580
Outlet connection :
3/8"OD
Description

R11 Series stainless steel pressure regulator is Single-stage diaphragm,vacuum structure stainless diaphragm output.It has piston pressure reducing structure,constant outlet pressure,mainly used for high input pressure,suitable for purified gas,standard gas,corrosive gas etc.

Material Weight:0.9kg
Body 316L,Brass
Roof 316L,Brass
Diaphragm 316L
Filter mesh 316(10μm)
Valve seat PCTFE,PTFE,Vespel
Spring loaded 316L
Valve disc regulation pole 316L

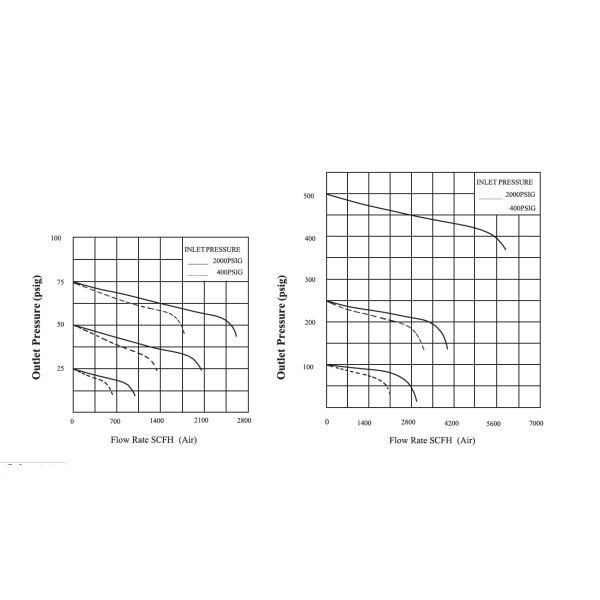

Flow Data

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

Selection Guide

R11 L B D F G 00 00 P
Item Body Material Body Hole Inlet pressure Outlet pressure Pressure gauge Inlet size Out size mark
R11 L:316 A D:3000psi F:0-500psi G:MPa gauge 00:1/4"NPT(F) 00:1/4"NPT(F) P:Panel mounting
B:Barss B E:2200psi G:0-250psi 00:1/4"NPT(M) 00:1/4"NPT(M) R:With relief valve
D F:500psi I:0-100psi P:Psi bar gauge 23:CGA330 10:1/8"OD N:Neendle valve
G K:0-50psi 24:CGA350 11:1/4"OD D:Diaphragm valve
J L:0-25psi W:No gauge 27:CGA580 12:3/8"OD
M 28:CGA660 15:16mm OD
30:CGA590 16:8mm OD
52:G5/8"-RH(F)
63:W21.8-14H(F)
64:W21.8-14LH(F)

Domestic Engineering Projects

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

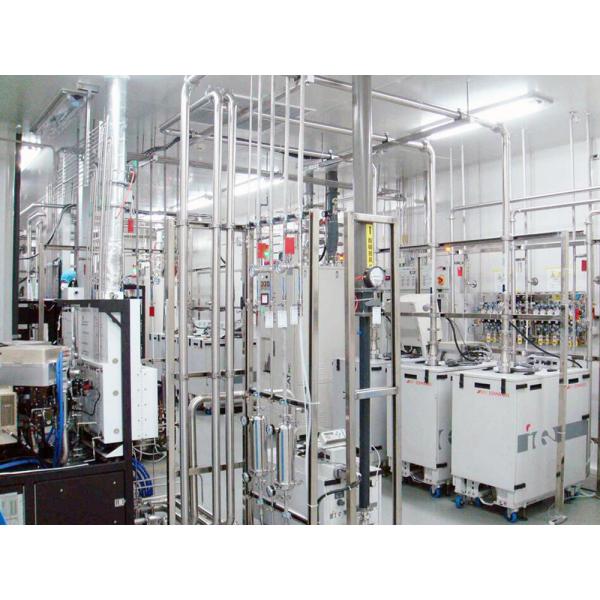

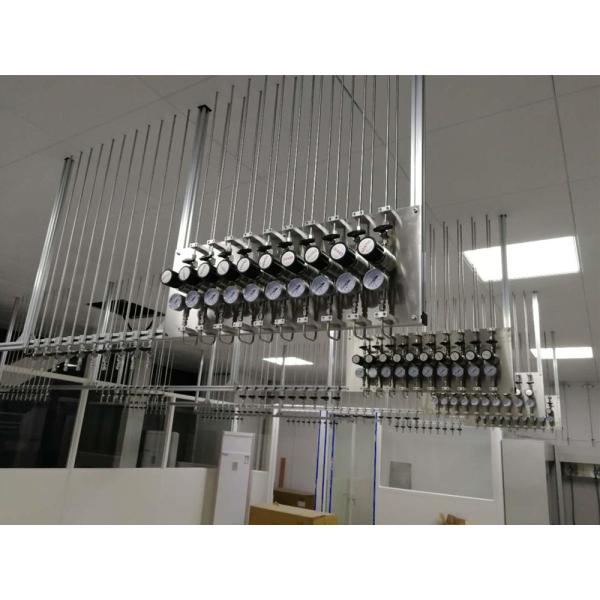

Laboratory wall mounted pressure reducer

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

Industrial stainless steel pipe

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

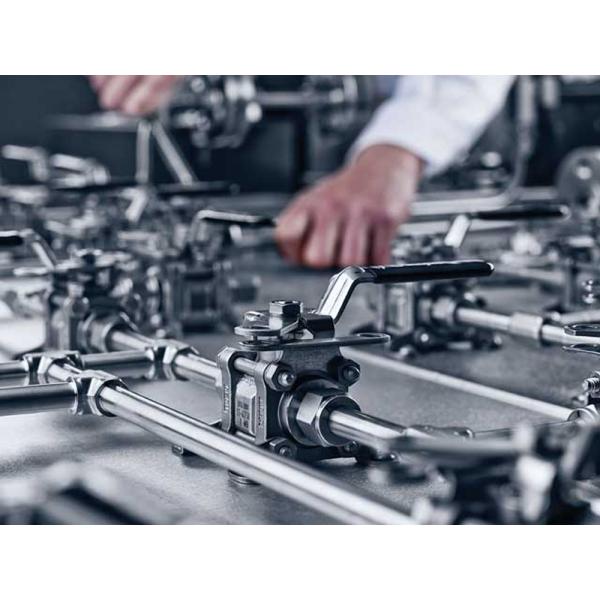

Industrial ball valve

Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve

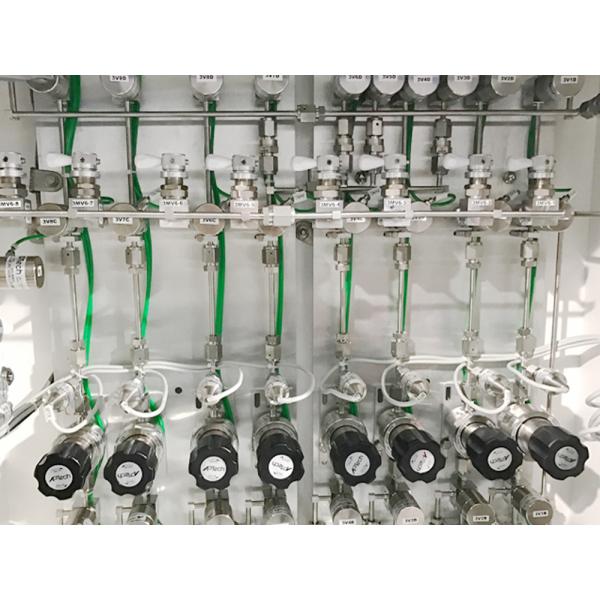

School laboratory installation
